What is the difference between the Brembo GT and GT|S Big Brake Kit for the 2024 Tesla Model S?

The Brembo GT|S adds stainless steel piston inserts and recessed dust boots compared to the standard GT caliper. These upgrades improve heat resistance and allow for extended track sessions without risk of seal damage or degradation. The GT|S is available in Black Hard Anodized only, while the GT is available in Red, Black, Silver, and Yellow.

What vehicles does the Brembo GT|S Big Brake Kit 1N-.9547A fit?

The Brembo GT|S Big Brake Kit fits the 2024 Tesla Model S with radial mount front calipers and the 2024 Tesla Model S Plaid. This is a front axle kit. Confirm your vehicle's caliper mount type before ordering, as this kit is specific to the radial mount configuration.

What rotor size does the Brembo GT|S Big Brake Kit use on the 2024 Tesla Model S?

The Brembo GT|S Big Brake Kit for the 2024 Tesla Model S uses 405mm two-piece rotors. Each disc assembly combines an advanced high-carbon alloy iron disc with corrosion-resistant plating and a CNC-machined aluminum hat, connected via a floating H-Bobbin system with an anti-rattle spring.

Does the Brembo GT|S Big Brake Kit for the 2024 Tesla Model S come pre-assembled?

Yes. The Brembo GT|S Big Brake Kit ships as a complete, pre-assembled front axle set. Brembo stainless steel braided brake lines by Goodridge, CNC billet caliper adapters, and all necessary installation hardware and fasteners are included.

What brake pads are included with the Brembo GT|S system for the 2024 Tesla Model S?

The Brembo GT|S system includes Ferodo FM1000 compound pads. The FM1000 is a proprietary friction material supplied exclusively to Brembo, offering strong initial response, precise feel, and consistent modulation across street and track environments. Pad volume is 107.3 and surface area is 95.4.

What color options are available for the Brembo GT|S Big Brake Kit?

The Brembo GT|S Big Brake Kit for the 2024 Tesla Model S is available in Black Hard Anodized only, with a machined and painted Brembo logo. It is available across all three rotor configurations; Cross Drilled, Type 1 Slotted, and Type 3 Slotted.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

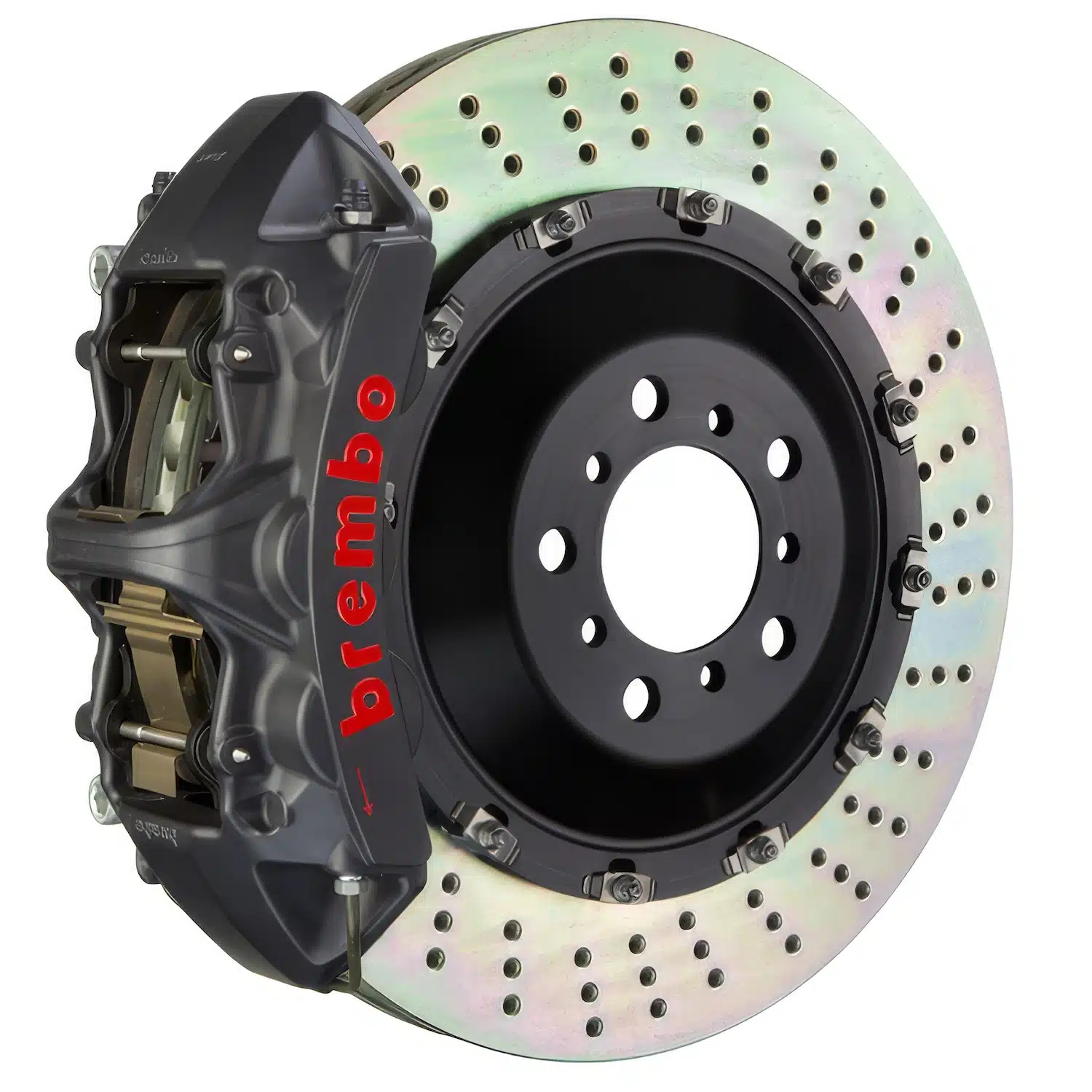

Brembo Front Big Brake Kit (GT|S System) for MS Tesla Model S / Plaid

The Brembo GT|S Big Brake Kit for the Tesla Model S and Model S Plaid is the step up from the standard GT system for drivers who spend more time on track. Built around the same radial mount 6-piston monobloc caliper platform, the GT|S adds stainless steel piston inserts and recessed dust boots; upgrades that allow for extended track sessions without concern over seal damage or degradation. It is a complete, pre-assembled front axle kit that ships with all necessary hardware included.

GT|S Monobloc Caliper

The GT|S uses a cast aluminum 6-piston monobloc Brembo caliper in a radial mount configuration. Compared to the standard GT caliper, the GT|S adds stainless steel piston inserts and a recessed dust boot design, both of which raise the caliper’s resistance to sustained high heat. The result is a caliper that handles longer and harder track use without the seal servicing concerns associated with less capable designs. Available in Black Hard Anodized only with a machined and painted Brembo logo.

Rotor Options: Cross Drilled, Type 1, and Type 3

All three rotor configurations share the same base specifications. Outer diameter is 405mm, annulus is 62mm, width is 34mm, and air gap is 12mm. Each disc assembly uses a two-piece construction: an advanced high-carbon alloy iron disc with corrosion-resistant plating mated to a CNC-machined aluminum hat. The disc-to-hat connection uses a floating H-Bobbin system with an anti-rattle spring.
Cross Drilled rotors are the street and mild track choice, offering the highest initial bite of the three options. They perform well in wet conditions and continuously refresh the braking surface, though they are more prone to thermal cracking under sustained race-level heat. Type 1 Straight Slotted rotors use Brembo’s 8-straight-slot face pattern and are the better fit for drivers logging more time at higher temperatures. This configuration prioritizes stable brake feel and thermal resilience, with low disc wear and consistent surface renewal. Initial bite is lower than the drilled and Type 3 options. Type 3 Motorsport Slotted rotors are built for competition use, with an emphasis on maximum initial response and a smooth pedal release. Less time on the brake pedal typically means faster laps; this is the rotor for drivers focused on that outcome. The trade-off is a higher rate of pad and disc wear due to the aggressive face pattern.

Features

405mm two-piece rotors (Cross Drilled, Type 1 Slotted, or Type 3 Slotted)
Calipers available in Hard Anodized Black
Pre-assembled complete front axle set
All necessary hardware and brake lines included

Specifications

Caliper
- Caliper Body: Cast Monobloc Radial Mount
- Caliper Piston Configuration: 6-Piston
- Caliper Piston Design and Insert Type: Inner Pressure Seal / Recessed Dust Boot / Stainless Steel Insert

Disc
- Disc Type: Cross Drilled, TY1 or TY3
- Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating

  Disc Diameter: 405mm
- Disc Width: 34mm
- Disc Air Gap: 12mm
- Disc Annulus: 62mm
- Disc Construction: 2-Piece Disc Assembly
- Disc To Hat Mounting System: Floating H-Bobbin with Anti Rattle Spring

Brake Pads
- Pad Compound: Brembo High Performance FM1000
- Pad Volume: 107.3
- Surface Area: 95.4

What’s Included

Brembo stainless steel braided brake lines
CNC billet caliper adapters
All necessary installation hardware and fasteners

Applications

Tesla Model S: MS | 2024-present
Tesla Model S Plaid: MS | 2024-present

Frequently Asked Questions

What is the difference between the Brembo GT and GT|S Big Brake Kit for the Tesla Model S? The Brembo GT|S adds stainless steel piston inserts and recessed dust boots compared to the standard GT caliper. These upgrades improve heat resistance and allow for extended track sessions without risk of seal damage or degradation. The GT|S is available in Black Hard Anodized only, while the GT is available in Red, Black, Silver, and Yellow.
What vehicles does the Brembo GT|S Big Brake Kit 1N-.9547A fit? The Brembo GT|S Big Brake Kit fits the Tesla Model S with radial mount front calipers and the Tesla Model S Plaid. This is a front axle kit. Confirm your vehicle’s caliper mount type before ordering, as this kit is specific to the radial mount configuration.
What rotor size does the Brembo GT|S Big Brake Kit use on the Tesla Model S? The Brembo GT|S Big Brake Kit for the Tesla Model S uses 405mm two-piece rotors. Each disc assembly combines an advanced high-carbon alloy iron disc with corrosion-resistant plating and a CNC-machined aluminum hat, connected via a floating H-Bobbin system with an anti-rattle spring.
Does the Brembo GT|S Big Brake Kit for the Tesla Model S come pre-assembled? Yes. The Brembo GT|S Big Brake Kit ships as a complete, pre-assembled front axle set. Brembo stainless steel braided brake lines by Goodridge, CNC billet caliper adapters, and all necessary installation hardware and fasteners are included.
What brake pads are included with the Brembo GT|S system for the Tesla Model S? The Brembo GT|S system includes Ferodo FM1000 compound pads. The FM1000 is a proprietary friction material supplied exclusively to Brembo, offering strong initial response, precise feel, and consistent modulation across street and track environments. Pad volume is 107.3 and surface area is 95.4.
What color options are available for the Brembo GT|S Big Brake Kit? The Brembo GT|S Big Brake Kit for the Tesla Model S is available in Black Hard Anodized only, with a machined and painted Brembo logo. It is available across all three rotor configurations: Cross Drilled, Type 1 Slotted, and Type 3 Slotted.

About Brembo

Brembo is a global leader in high-performance braking systems, renowned for its innovation, engineering excellence, and track-proven technology. Founded in Italy in 1961, the company has become synonymous with advanced brake components for automotive, motorcycle, and motorsport applications. Supplying major OEMs and dominating professional racing circuits worldwide, Brembo combines cutting-edge research, precision manufacturing, and a relentless commitment to safety and performance. From Formula 1 to the street, Brembo continues to set the benchmark in braking technology, trusted by enthusiasts and manufacturers alike.
