What does the Brembo Front Big Brake Kit (GT|S System) fit on the Ferrari 550 and 575M Maranello?

This GT|S System front kit fits the Ferrari 550 Maranello and 575M Maranello (model year 2002, excluding 575 GTC-equipped cars). It is a front axle set only; a matching rear kit is available separately.

What makes the GT|S different from the standard GT System?

The GT|S uses the same cast monobloc caliper body as the GT but adds a stainless steel piston insert and recessed dust boot for extra thermal margin, finished in Black Hard Anodized rather than the GT's four color options.

What rotor options come with this Brembo Front Big Brake Kit?

The kit uses 380mm two-piece rotors available in three configurations: Cross Drilled, Type 1 Slotted, and Type 3 Slotted. All three share the same 34mm width, 14mm air gap, and 62mm annulus.

Does the Brembo Front Big Brake Kit (GT|S System) come pre-assembled?

Yes. It ships as a complete, pre-assembled front axle set with Brembo stainless steel braided brake lines by Goodridge, CNC billet caliper adapters, and all necessary installation hardware.

What brake pads are included with the GT|S kit?

The kit includes Brembo High Performance FM1000 compound pads, with a pad volume of 107.3 and surface area of 95.4.

What finish is the GT|S caliper available in?

The GT|S caliper is available in Black Hard Anodized only, with a machined Brembo Racing red logo.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

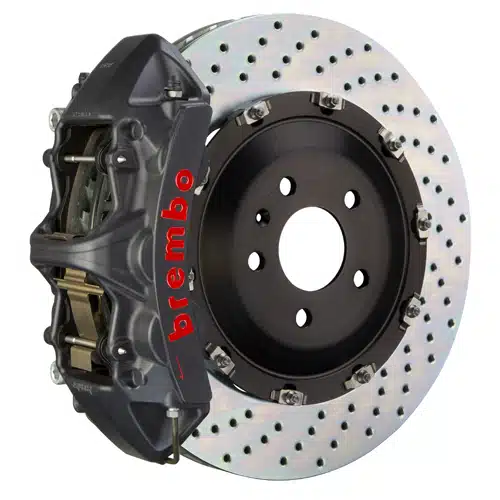

Brembo Front Big Brake Kit GT | S System for Ferrari 550 Maranello and 575M Maranello

Brembo’s Front Big Brake Kit (GT|S System) for the Ferrari 550 Maranello and 575M Maranello sits a step above the standard GT System, adding a stainless steel piston insert and recessed dust boot to the same cast monobloc six-piston caliper architecture Brembo validates as a Road Car Caliper. Brembo has supplied Maranello’s road and race cars for decades, and the GT|S carries that partnership forward for owners who want extra thermal margin for spirited street driving and track days without giving up daily comfort. It ships as a complete, pre-assembled front axle set, finished in Black Hard Anodized, with braided stainless lines and all mounting hardware included.

GT|S Cast Monobloc Caliper

The GT|S front kit uses a cast aluminum six-piston monobloc Brembo caliper in a radial mount configuration, with an inner pressure seal, a recessed dust boot, and a stainless steel piston insert for added heat resistance over the base GT caliper. Available in Black Hard Anodized only, with a machined Brembo Racing red logo.

Rotor Options: Cross Drilled, Type 1, and Type 3

All three rotor configurations share the same base specifications. Outer diameter is 380mm, width is 34mm, air gap is 14mm, and annulus is 62mm, with a vented curved 48-vane design. Each disc assembly is a two-piece build: an advanced high-carbon alloy iron disc with corrosion-resistant plating mated to a hat, connected through a floating H-Bobbin system with an anti-rattle spring.
Cross Drilled rotors are the street and mild track choice, with the strongest initial bite of the three and reliable wet-weather performance, at the cost of being more prone to thermal cracking under sustained race heat. Type 1 Slotted rotors use Brembo’s straight-slot face pattern and suit drivers who spend more time on track, favoring stable brake feel and thermal resilience with lower wear. Type 3 Slotted rotors are built for competition use, prioritizing maximum initial response and a smooth pedal release at the cost of faster pad and disc wear.

Features

380mm two-piece front rotors (Cross Drilled, Type 1 Slotted, or Type 3 Slotted)
6-piston cast monobloc radial-mount calipers with stainless steel piston insert
Black Hard Anodized finish with machined Brembo Racing logo
Brembo High Performance FM1000 pads included
Pre-assembled complete front axle set
Level-2 install difficulty

Specifications

Caliper Body: Cast Monobloc Radial Mount
Caliper Piston Configuration: 6-Piston
Caliper Piston Design and Insert Type: Inner Pressure Seal / Recessed Dust Boot / Stainless Steel Insert
Disc Diameter: 380mm
Disc Width: 34mm
Disc Air Gap: 14mm
Disc Annulus: 62mm
Disc Construction: 2-Piece Disc Assembly
Disc To Hat Mounting System: Floating H-Bobbin with Anti Rattle Spring
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 107.3 / 95.4

What’s Included

Brembo stainless steel braided brake lines by Goodridge
Brembo-engineered CNC billet caliper adapters
All necessary installation hardware and fasteners

Applications

Ferrari 550 Maranello: 2002
Ferrari 575M Maranello: 2002 (excludes GTC-equipped cars)

Notes

This is a front axle kit only; the matching GT|S System rear kit is listed separately
Sold as a complete front pair, two calipers, two rotors, pads, lines, and hardware
Confirm wheel clearance for the 380mm rotor and radial-mount caliper before ordering
Not compatible with 575 GTC-equipped cars

Frequently Asked Questions

What does the Brembo Front Big Brake Kit (GT|S System) fit on the Ferrari 550 and 575M Maranello? This GT|S System front kit fits the Ferrari 550 Maranello and 575M Maranello (model year 2002, excluding 575 GTC-equipped cars). It is a front axle set only; a matching rear kit is available separately.
What makes the GT|S different from the standard GT System? The GT|S uses the same cast monobloc caliper body as the GT but adds a stainless steel piston insert and recessed dust boot for extra thermal margin, finished in Black Hard Anodized rather than the GT’s four color options.
What rotor options come with this Brembo Front Big Brake Kit? The kit uses 380mm two-piece rotors available in three configurations: Cross Drilled, Type 1 Slotted, and Type 3 Slotted. All three share the same 34mm width, 14mm air gap, and 62mm annulus.
Does the Brembo Front Big Brake Kit (GT|S System) come pre-assembled? Yes. It ships as a complete, pre-assembled front axle set with Brembo stainless steel braided brake lines by Goodridge, CNC billet caliper adapters, and all necessary installation hardware.
What brake pads are included with the GT|S kit? The kit includes Brembo High Performance FM1000 compound pads, with a pad volume of 107.3 and surface area of 95.4.
What finish is the GT|S caliper available in? The GT|S caliper is available in Black Hard Anodized only, with a machined Brembo Racing red logo.

About Brembo

Brembo is a global leader in high-performance braking systems, renowned for its innovation, engineering excellence, and track-proven technology. Founded in Italy in 1961, the company has become synonymous with advanced brake components for automotive, motorcycle, and motorsport applications. Supplying major OEMs and dominating professional racing circuits worldwide, Brembo combines cutting-edge research, precision manufacturing, and a relentless commitment to safety and performance. From Formula 1 to the street, Brembo continues to set the benchmark in braking technology, trusted by enthusiasts and manufacturers alike.
