What makes the Brembo GT|R different from the GT and GT|S systems for the 2024 Tesla Model S?

The GT|R uses a CNC billet aluminum caliper body instead of the cast aluminum construction found in the GT and GT|S. It also features ventilated stainless steel piston inserts, recessed dust boots, and a nickel-plated finish for maximum corrosion resistance. Brembo classifies the GT|R as a race-specification caliper that retains Road Car Caliper validation; no noise or comfort trade-offs typically associated with race systems.

What vehicles does the Brembo GT|R Big Brake Kit 1N-.9547A fit?

The Brembo GT|R Big Brake Kit fits the 2024 Tesla Model S with radial mount front calipers and the 2024 Tesla Model S Plaid. This is a front axle kit. Confirm your vehicle's caliper mount type before ordering, as this kit is specific to the radial mount configuration.

What rotor size does the Brembo GT|R Big Brake Kit use on the 2024 Tesla Model S?

The Brembo GT|R Big Brake Kit uses 405mm two-piece rotors. Each disc assembly combines an advanced high-carbon alloy iron disc with corrosion-resistant plating and a CNC-machined aluminum hat, connected via a floating H-Bobbin system with an anti-rattle spring.

Does the Brembo GT|R Big Brake Kit for the 2024 Tesla Model S come pre-assembled?

Yes. The Brembo GT|R Big Brake Kit ships as a complete, pre-assembled front axle set. Brembo stainless steel braided brake lines by Goodridge, CNC billet caliper adapters, and all necessary installation hardware and fasteners are included.

What brake pads are included with the Brembo GT|R system for the 2024 Tesla Model S?

The Brembo GT|R system includes Ferodo FM1000 compound pads. The FM1000 is a proprietary friction material supplied exclusively to Brembo, offering strong initial response, precise feel, and consistent modulation across street and track environments. Pad volume is 107.3 and surface area is 95.4.

What finish is available on the Brembo GT|R Big Brake Kit for the Tesla Model S?

The Brembo GT|R Big Brake Kit for the 2024 Tesla Model S is available in Nickel Plated only, with a machined Brembo Racing red logo. The nickel plating provides corrosion resistance suited for both track and daily street use. It is available across all three rotor configurations; Cross Drilled, Type 1 Slotted, and Type 3 Slotted.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

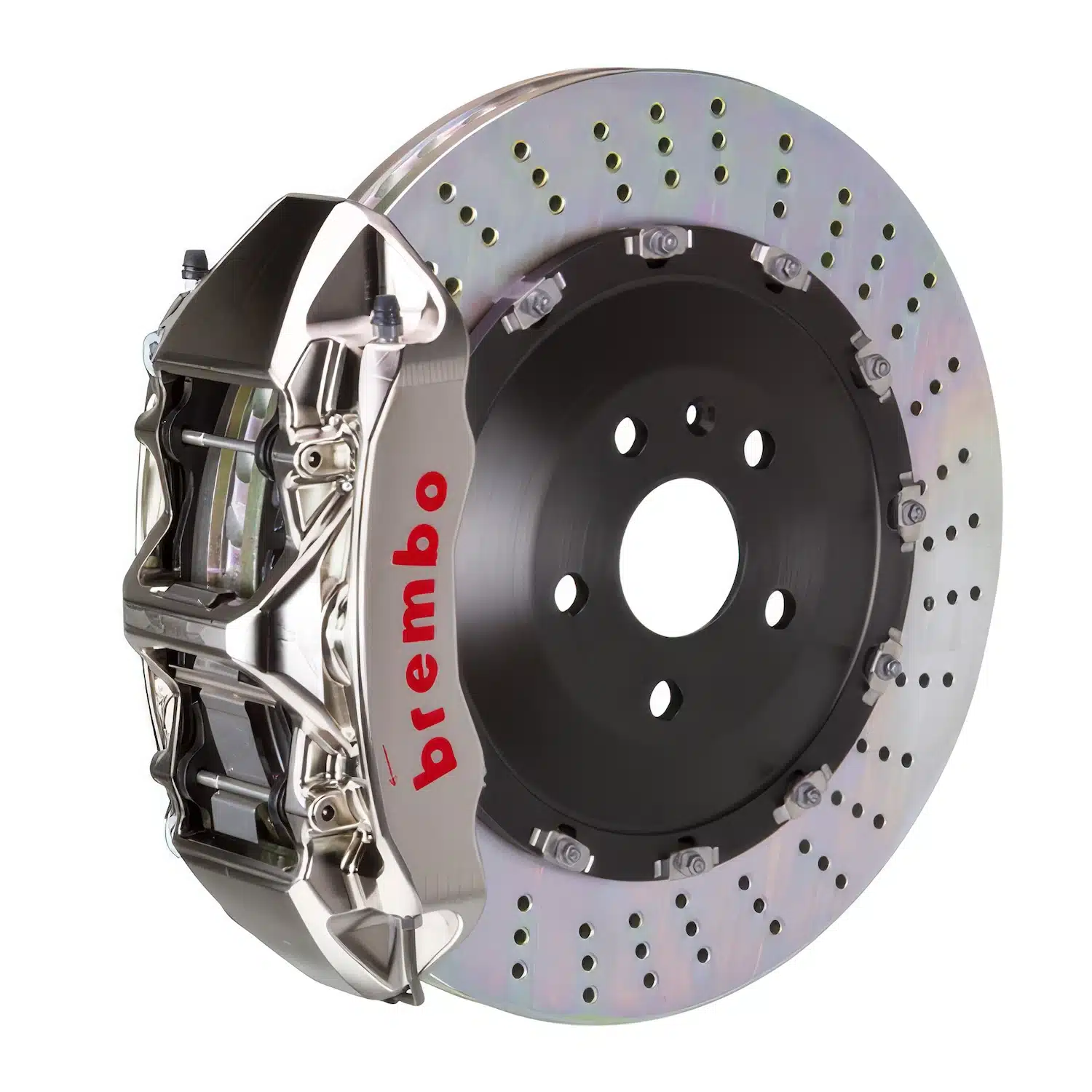

Brembo Front Big Brake Kit (GT|R System) for MS Tesla Model S / Plaid

The Brembo GT|R Big Brake Kit for the Tesla Model S and Model S Plaid is the top tier of the GT system lineup; a race-specification brake kit that retains full streetability. Where the GT and GT|S use cast aluminum caliper bodies, the GT|R steps up to CNC billet monobloc construction with nickel plating and ventilated stainless steel piston inserts. The result is a caliper with the strength and corrosion resistance of a purpose-built race component, none of the noise or comfort penalties typically associated with a race system, and Brembo’s validation as a Road Car Caliper. It ships as a complete, pre-assembled front axle kit with all necessary hardware included.

GT|R Billet Monobloc Caliper

The GT|R uses a CNC billet aluminum 6-piston monobloc Brembo caliper in a radial mount configuration. Billet construction delivers greater structural rigidity than cast aluminum, and the nickel plating adds corrosion resistance suited for both sustained track use and everyday driving. Ventilated stainless steel piston inserts and recessed dust boots round out a caliper built to handle extreme heat without compromising seal integrity or pedal feel. Available in Nickel Plated only with a machined Brembo Racing red logo.

Rotor Options: Cross Drilled, Type 1, and Type 3

All three rotor configurations share the same base specifications. Outer diameter is 405mm, annulus is 62mm, width is 34mm, and air gap is 12mm. Each disc assembly uses a two-piece construction: an advanced high-carbon alloy iron disc with corrosion-resistant plating mated to a CNC-machined aluminum hat. The disc-to-hat connection uses a floating H-Bobbin system with an anti-rattle spring.
Cross Drilled rotors are the street and mild track choice, offering the highest initial bite of the three options. They perform well in wet conditions and continuously refresh the braking surface, though they are more prone to thermal cracking under sustained race-level heat. Type 1 Straight Slotted rotors use Brembo’s 8-straight-slot face pattern and are the better fit for drivers who push harder and longer on track. This configuration prioritizes stable brake feel and thermal resilience, with low disc wear and consistent surface renewal. Initial bite is lower than the drilled and Type 3 options. Type 3 Motorsport Slotted rotors are built for competition, with an emphasis on maximum initial response and a smooth pedal release. Less time on the brake pedal typically means faster laps; this is the rotor for drivers focused on that outcome. The trade-off is a higher rate of pad and disc wear due to the aggressive face pattern.

Features

405mm two-piece rotors (Cross Drilled, Type 1 Slotted, or Type 3 Slotted)
Calipers available in a Nickel Plated Finish
Pre-assembled complete front axle set
All necessary hardware and brake lines included

Specifications

Caliper
- Caliper Body: Cast Monobloc Radial Mount
- Caliper Piston Configuration: 6-Piston
- Caliper Piston Design and Insert Type: Inner Pressure Seal / Recessed Dust Boot / Ventilated Stainless Steel Insert

Disc
- Disc Type: Cross Drilled, TY1 or TY3
- Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
- Disc Diameter: 405mm
- Disc Width: 34mm
- Disc Air Gap: 12mm
- Disc Annulus: 62mm
- Disc Construction: 2-Piece Disc Assembly
- Disc To Hat Mounting System: Floating H-Bobbin with Anti Rattle Spring

Brake Pads
- Pad Compound: Brembo High Performance FM1000
- Pad Volume: 107.3
- Surface Area: 95.4

What’s Included

Brembo stainless steel braided brake lines
CNC billet caliper adapters
All necessary installation hardware and fasteners

Applications

Tesla Model S: MS | 2024-present
Tesla Model S Plaid: MS | 2024-present

Frequently Asked Questions

What makes the Brembo GT|R different from the GT and GT|S systems for the Tesla Model S? The GT|R uses a CNC billet aluminum caliper body instead of the cast aluminum construction found in the GT and GT|S. It also features ventilated stainless steel piston inserts, recessed dust boots, and a nickel-plated finish for maximum corrosion resistance. Brembo classifies the GT|R as a race-specification caliper that retains Road Car Caliper validation; no noise or comfort trade-offs typically associated with race systems.
What vehicles does the Brembo GT|R Big Brake Kit 1N-.9547A fit? The Brembo GT|R Big Brake Kit fits the Tesla Model S with radial mount front calipers and the Tesla Model S Plaid. This is a front axle kit. Confirm your vehicle’s caliper mount type before ordering, as this kit is specific to the radial mount configuration.
What rotor size does the Brembo GT|R Big Brake Kit use on the Tesla Model S? The Brembo GT|R Big Brake Kit uses 405mm two-piece rotors. Each disc assembly combines an advanced high-carbon alloy iron disc with corrosion-resistant plating and a CNC-machined aluminum hat, connected via a floating H-Bobbin system with an anti-rattle spring.
Does the Brembo GT|R Big Brake Kit for the Tesla Model S come pre-assembled? Yes. The Brembo GT|R Big Brake Kit ships as a complete, pre-assembled front axle set. Brembo stainless steel braided brake lines by Goodridge, CNC billet caliper adapters, and all necessary installation hardware and fasteners are included.
What brake pads are included with the Brembo GT|R system for the Tesla Model S? The Brembo GT|R system includes Ferodo FM1000 compound pads. The FM1000 is a proprietary friction material supplied exclusively to Brembo, offering strong initial response, precise feel, and consistent modulation across street and track environments. Pad volume is 107.3 and surface area is 95.4.
What finish is available on the Brembo GT|R Big Brake Kit for the Tesla Model S? The Brembo GT|R Big Brake Kit for the Tesla Model S is available in Nickel Plated only, with a machined Brembo Racing red logo. The nickel plating provides corrosion resistance suited for both track and daily street use. It is available across all three rotor configurations: Cross Drilled, Type 1 Slotted, and Type 3 Slotted.
