Who is the Boost Logic Magnum Titanium Exhaust for R35 built for?

It is built for high power GT-R builds. Boost Logic says normal 4-inch systems begin to restrict power around 1,400 whp and above, and the Magnum Titanium Exhaust for R35 uses a 4.5-inch section to let rear-exit cars make significantly more than that. Below that level, a 4-inch system already flows what the car needs.

How much more does the 4.5-inch system flow?

Boost Logic states that its 4.5-inch system flows 26.5% more than a 4-inch system. The pipe is only half an inch larger in diameter, but cross-sectional area grows with the square of the diameter, which is where the extra flow comes from. Dual 4-inch pipes merge into the single 4.5-inch section.

Does installation require trimming?

Some trimming may be required. Boost Logic shows examples of trimming done to the lower diffuser bracket and to the lower diffuser itself to fit the system. The exhaust comes with the stainless steel clamps and hardware needed for installation, so budget time for the diffuser work when booking the install.

Should I choose the valved muffler section?

Choose it if you want the valved rear section built in from the start. The valved muffler section is priced above the non-valved version, and Boost Logic also sells the 4.5-inch valved rear section as a separate part. The non-valved system keeps the full titanium layout without valves at the lower price.

What tip finishes are available?

Boost Logic offers the fully adjustable titanium slash cut tips in blue burnt or ceramic black, with the ceramic black finish priced higher. Because the tips are adjustable, their position can be set to suit the rear bumper and diffuser of the car, whichever finish is chosen at checkout.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Boost Logic Magnum Titanium Exhaust for R35 Nissan GT-R

Boost Logic’s Magnum Titanium Exhaust for R35 Nissan GT-R is the largest rear-exit system Boost Logic builds for the car: dual 4-inch pipes merge into a single 4.5-inch pipe that hugs the exhaust tunnel all the way to the rear. Boost Logic says the 4.5-inch section flows 26.5% more than a 4-inch system and that normal 4-inch systems begin to restrict power at around 1,400 whp and above, which is the range this system is built for. The full titanium system weighs 27 lbs, a large reduction from the factory system. By Boost Logic’s own figure, a car well under 1,400 whp is not held back by a 4-inch system, so the Magnum makes most sense at the top of the power range.

Features

Full titanium construction, precision TIG welded
Dual 4-inch pipes merge into a single 4.5-inch pipe
4.5-inch section flows 26.5% more than a 4-inch system, per Boost Logic
Proper merge collectors for high flow
Lightweight at 27 lbs, a large reduction compared to the factory system
Fully adjustable titanium slash cut tips in blue burnt or ceramic black

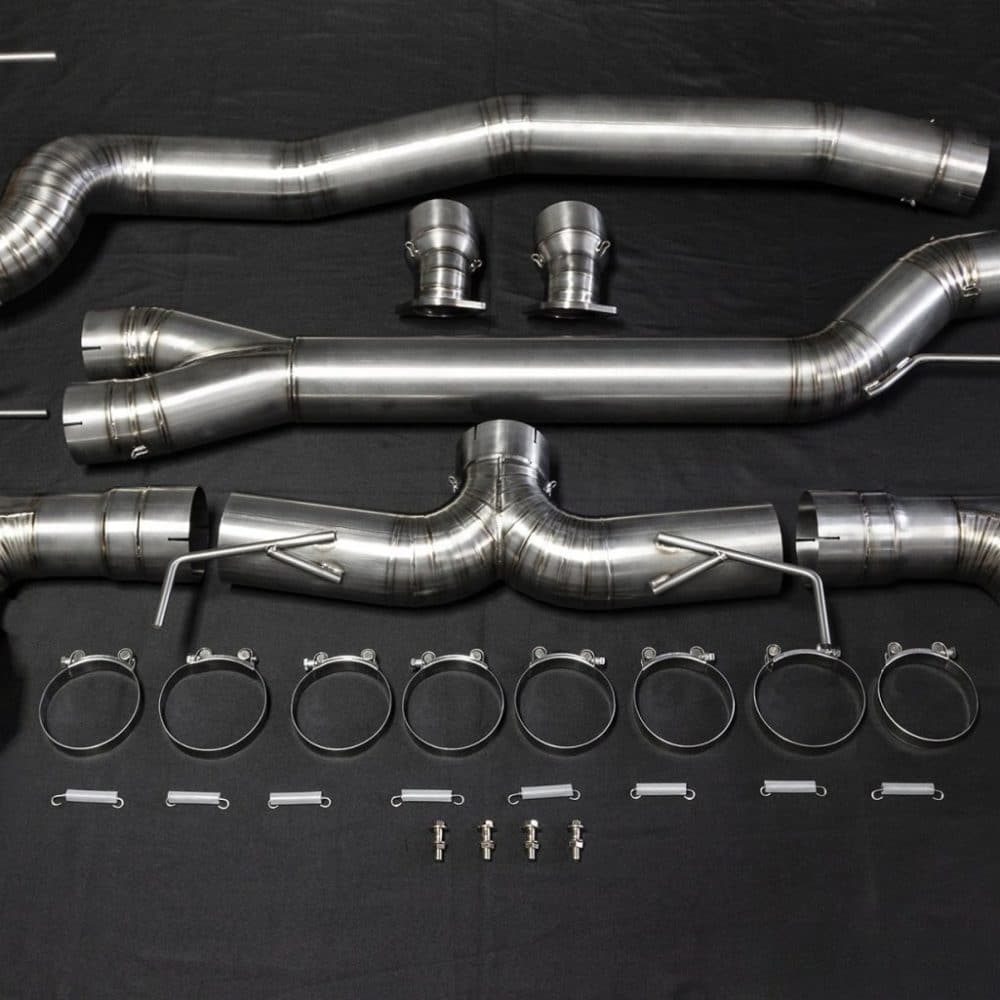

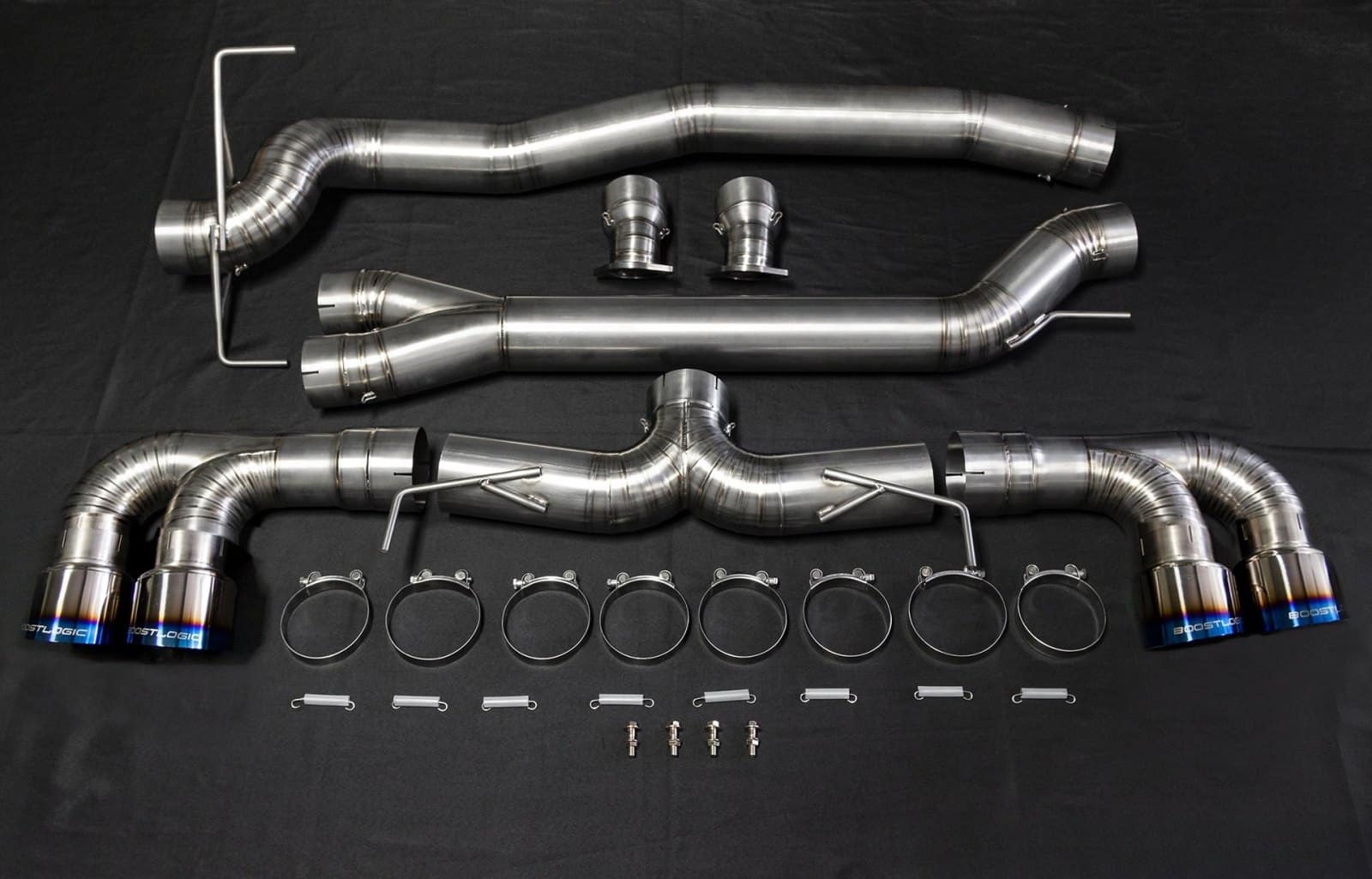

What’s Included

Dual 4-inch to single 4.5-inch titanium mid pipe
4.5-inch titanium cat-back exhaust
Fully adjustable titanium slash cut tips
Stainless steel clamps and hardware needed for installation

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Some trimming may be required for installation; Boost Logic shows examples of trimming to the lower diffuser bracket and to the lower diffuser itself
Choose a valved or non-valved muffler section and the tip finish at checkout; the valved section and the ceramic black tips each add to the price
Boost Logic calls the Magnum Titanium Exhaust for R35 the highest power rear-exit GT-R exhaust system on the market
Fits USDM, European and JDM R35 GT-R models
Boost Logic also sells the valved rear section on its own as the Boost Logic 4.5-Inch Valved Rear Section for R35 Nissan GT-R (BL 02010910-45-VMS)
For cars below the Magnum power range, Boost Logic builds the Boost Logic 4-Inch Titanium Exhaust for R35 Nissan GT-R (BL 02010910)
Boost Logic also offers a 4-inch V-band link pipe that joins its 4-inch downpipes to the Magnum 4.5-inch exhaust (BL 02010904-4-LP)

Frequently Asked Questions

Who is the Boost Logic Magnum Titanium Exhaust for R35 built for? It is built for high power GT-R builds. Boost Logic says normal 4-inch systems begin to restrict power around 1,400 whp and above, and the Magnum Titanium Exhaust for R35 uses a 4.5-inch section to let rear-exit cars make significantly more than that. Below that level, a 4-inch system already flows what the car needs.
How much more does the 4.5-inch system flow? Boost Logic states that its 4.5-inch system flows 26.5% more than a 4-inch system. The pipe is only half an inch larger in diameter, but cross-sectional area grows with the square of the diameter, which is where the extra flow comes from. Dual 4-inch pipes merge into the single 4.5-inch section.
Does installation require trimming? Some trimming may be required. Boost Logic shows examples of trimming done to the lower diffuser bracket and to the lower diffuser itself to fit the system. The exhaust comes with the stainless steel clamps and hardware needed for installation, so budget time for the diffuser work when booking the install.
Should I choose the valved muffler section? Choose it if you want the valved rear section built in from the start. The valved muffler section is priced above the non-valved version, and Boost Logic also sells the 4.5-inch valved rear section as a separate part. The non-valved system keeps the full titanium layout without valves at the lower price.
What tip finishes are available? Boost Logic offers the fully adjustable titanium slash cut tips in blue burnt or ceramic black, with the ceramic black finish priced higher. Because the tips are adjustable, their position can be set to suit the rear bumper and diffuser of the car, whichever finish is chosen at checkout.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
