Do the Boost Logic M133 Forged Pistons for W176 work with the factory cylinder liners?

Yes. Boost Logic coats the M133 Forged Pistons for W176, C117 and X156 cars with Alusil so they work with the factory plasma cylinder liner. The bores should still be measured and checked by the engine builder before the new pistons go in, as with any forged piston build on a used block.

Which cars use the M133 engine?

The 2.0 liter turbocharged M133 four-cylinder powers the Mercedes-AMG A45 of the W176 generation, the CLA45 of the C117 generation and the GLA45 of the X156 generation. Boost Logic lists the pistons for the M133 engine, so all three cars are covered. The later M139 engine in the newer 45 models is a different design and is not listed.

Boost Logic lists the pistons with heavy-duty wrist pins, and the product photos show piston rings with the set, but rings are not named in the written description. Ask Bulletproof Automotive to confirm with Boost Logic before ordering so the engine builder knows whether a ring set needs to be sourced separately.

What rods should be used with these pistons?

Boost Logic sells Spec M133 forged H-beam rods for the same engine, balanced to within 1 gram, fully machined, Magnaflux inspected and made in the USA. They are sold as a separate listing. Using the Boost Logic pistons and rods together keeps the rotating parts from one supplier with matching balance tolerances.

Does the set need a tune?

Pistons alone do not change the calibration, but they are fitted because the rest of the build is changing, and the turbocharger, fuel system and tune for that build must be planned together. Boost Logic does not publish a power rating for the set, so match the combination to the goal with the engine builder and tuner.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

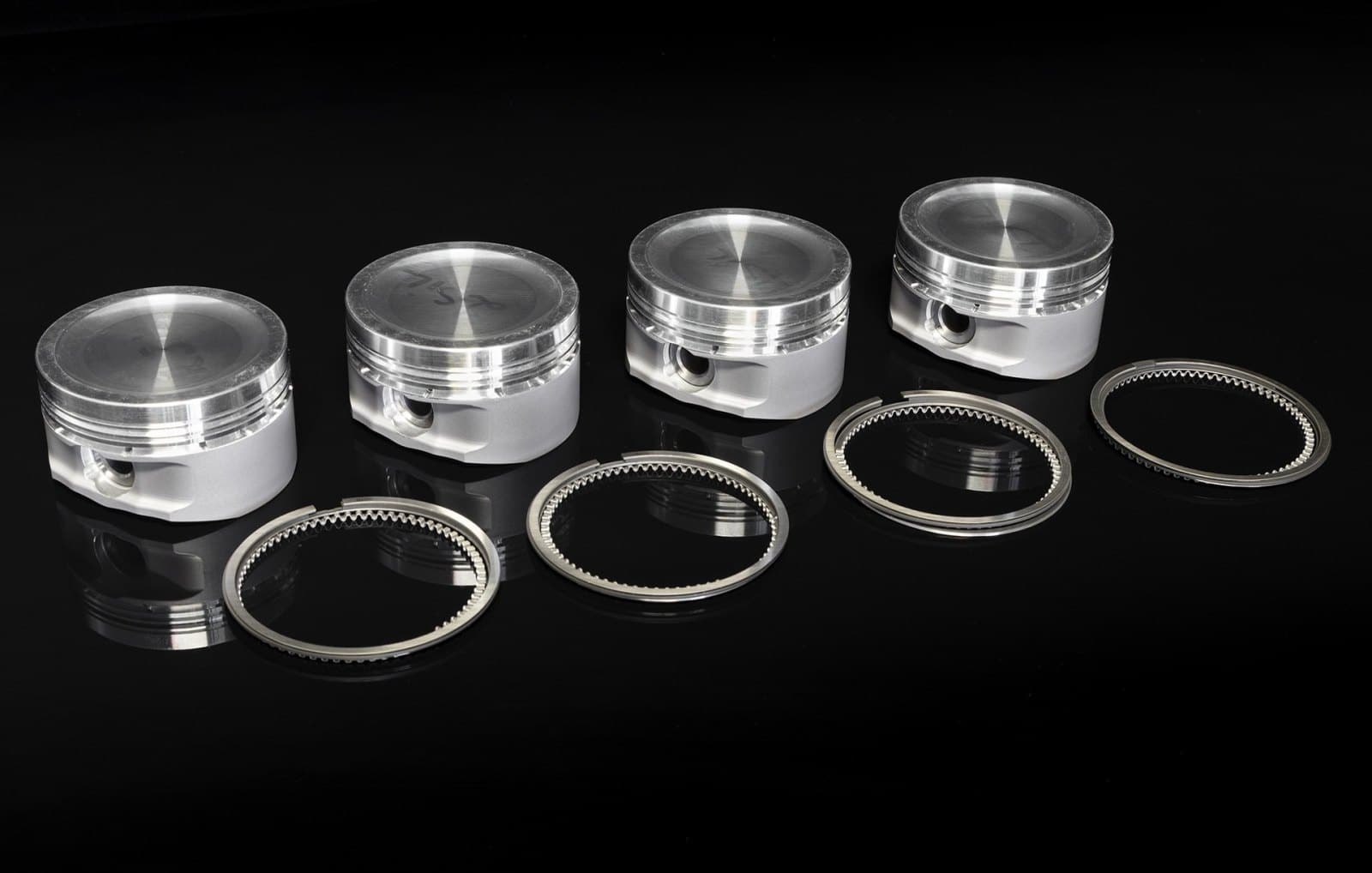

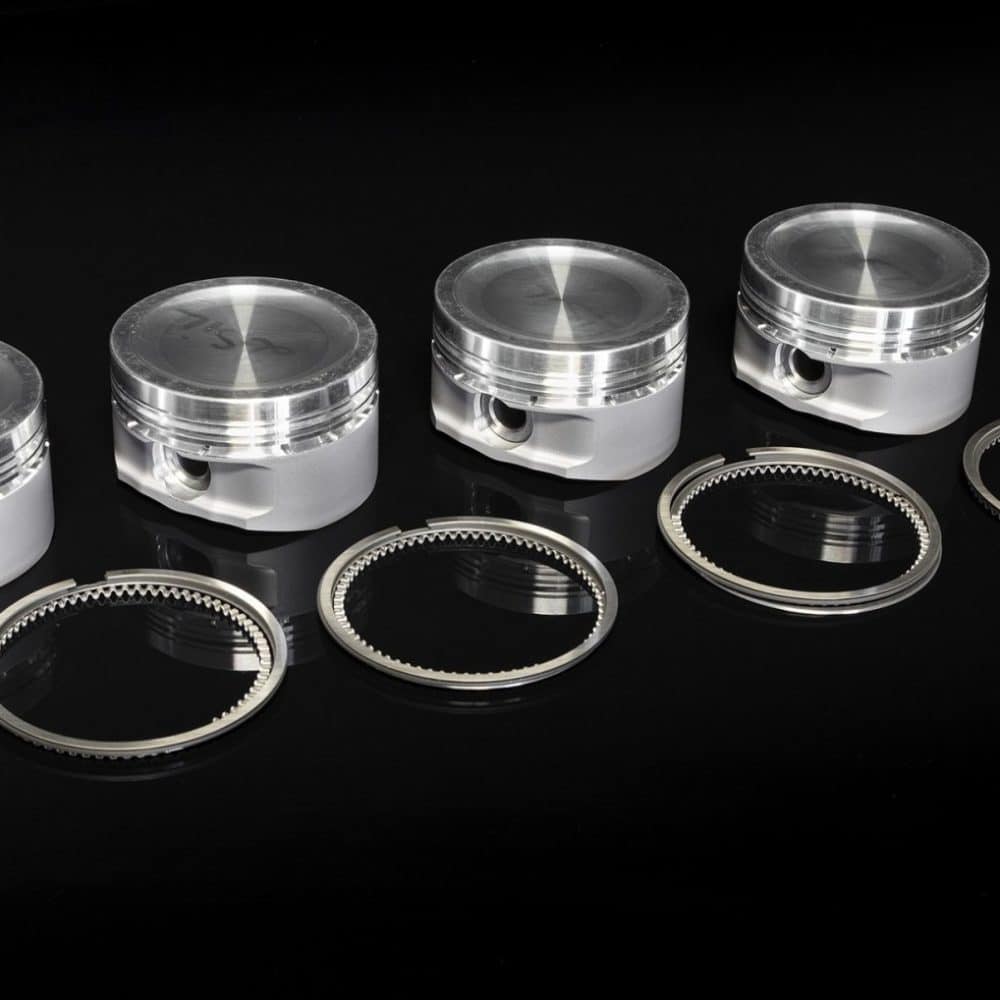

Boost Logic Spec M133 Forged Pistons for W176 / C117 / X156 Mercedes-AMG A45 / CLA45 / GLA45

Boost Logic’s Spec M133 Forged Pistons for W176 / C117 / X156 Mercedes-AMG A45, CLA45 and GLA45 are the step Boost Logic recommends when the 2.0-liter turbocharged M133 four-cylinder is being built for big power. Each piston is fully CNC machined, runs heavy-duty wrist pins and carries an Alusil coating so it works with the factory plasma-coated cylinder liner. The set is precisely balanced to within 1 gram across all pistons. On a stock or lightly tuned M133 the factory pistons are adequate; this set is for a build where the turbo, fuel and tune are all moving well past standard.

Features

Forged construction, fully CNC machined
Alusil coating designed to work with the factory plasma liner
Heavy-duty wrist pins
Lightweight design aimed at long service life under boost, per Boost Logic
Sold as a set balanced to within 1 gram

Applications

Mercedes-AMG A45: W176 | 2014-2019 | 2.0L M133 Turbo I4
Mercedes-AMG CLA45: C117 | 2014-2019 | 2.0L M133 Turbo I4
Mercedes-AMG GLA45: X156 | 2014-2019 | 2.0L M133 Turbo I4

Notes

The M133 Forged Pistons for W176 / C117 / X156 are designed to run on the factory plasma-coated liner
Boost Logic sells matching Boost Logic Spec M133 Forged Rods for W176 / C117 / X156 Mercedes-AMG A45 / CLA45 / GLA45 (BL 07020807) for the same engine
Boost Logic lists pistons and wrist pins; piston rings appear in the product photos but are not listed in the description, so confirm them before ordering
An engine-build part, fitted with the engine apart by an experienced builder

Frequently Asked Questions

Do the Boost Logic M133 Forged Pistons for W176 work with the factory cylinder liners? Yes. Boost Logic coats the M133 Forged Pistons for W176, C117 and X156 cars with Alusil so they work with the factory plasma cylinder liner. The bores should still be measured and checked by the engine builder before the new pistons go in, as with any forged piston build on a used block.
Which cars use the M133 engine? The 2.0 liter turbocharged M133 four-cylinder powers the Mercedes-AMG A45 of the W176 generation, the CLA45 of the C117 generation and the GLA45 of the X156 generation. Boost Logic lists the pistons for the M133 engine, so all three cars are covered. The later M139 engine in the newer 45 models is a different design and is not listed.
Are rings included? Boost Logic lists the pistons with heavy-duty wrist pins, and the product photos show piston rings with the set, but rings are not named in the written description. Ask Bulletproof Automotive to confirm with Boost Logic before ordering so the engine builder knows whether a ring set needs to be sourced separately.
What rods should be used with these pistons? Boost Logic sells Spec M133 forged H-beam rods for the same engine, balanced to within 1 gram, fully machined, Magnaflux inspected and made in the USA. They are sold as a separate listing. Using the Boost Logic pistons and rods together keeps the rotating parts from one supplier with matching balance tolerances.
Does the set need a tune? Pistons alone do not change the calibration, but they are fitted because the rest of the build is changing, and the turbocharger, fuel system and tune for that build must be planned together. Boost Logic does not publish a power rating for the set, so match the combination to the goal with the engine builder and tuner.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
