Do I need the Boost Logic Centerlock Rear Axles for LB724 or the standard set?

Choose by hub type. The Centerlock Rear Axles for LB724 Huracán and R8 are built for cars with centerlock rear hubs, while Boost Logic sells a separate DL800 Competition Series rear axle set for standard hubs. Both use the same 300M construction, so the hub fitment on your car is what decides the part number.

What are the axles made from?

Boost Logic builds the CV housings, the internal CV components and the 30-spline center shafts from billet 300M, an alloy steel used for high-strength drivetrain parts. The CV joints receive a proprietary treatment that Boost Logic says reduces friction and extends joint life, and the set runs high-speed CV boots.

Why are the center shafts gun-drilled?

Boost Logic gun-drills the 30-spline center shafts to take weight out of the axle and to help the shaft absorb shock loads, such as hard launches, rather than passing them straight into the CV joints. The result is a lighter shaft that still carries the strength of solid 300M construction.

Which transmission and cars do the axles fit?

The set is built for the DL800 transmission used in the Lamborghini Huracán and the Audi R8 V10, on cars fitted with centerlock rear hubs. Boost Logic does not list individual models or R8 generations for this part, so confirm the car and its hubs with Bulletproof Automotive before ordering.

Can the CV boots be replaced later?

Yes. Boost Logic sells a DL800 300M Rear Axle Set Replacement Boot Kit, part number BL 06030415.1.1, for servicing its 300M axle sets. Bulletproof Automotive can source the boot kit and the DL800 locking axle bolt kit alongside the axles when the order is placed.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

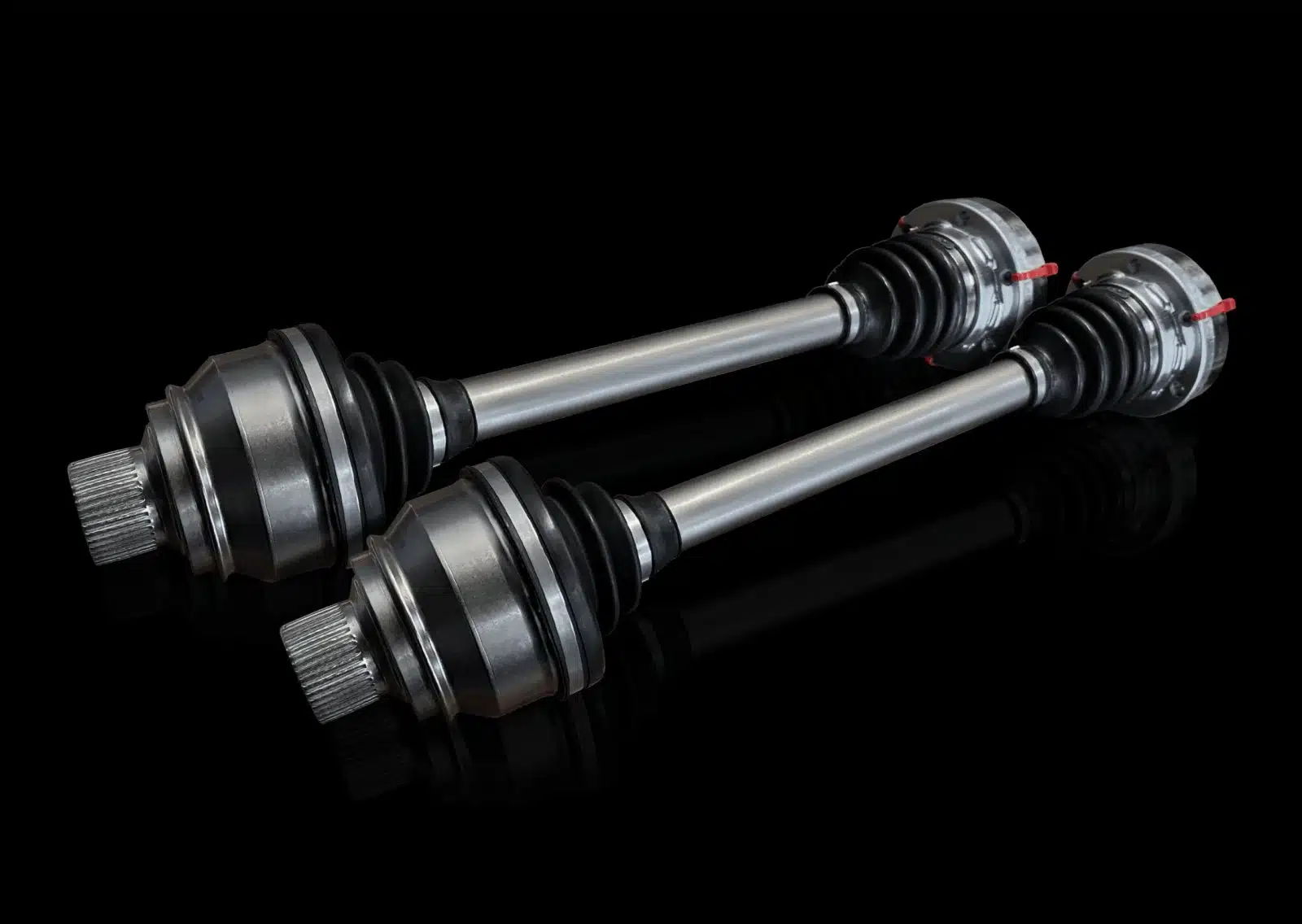

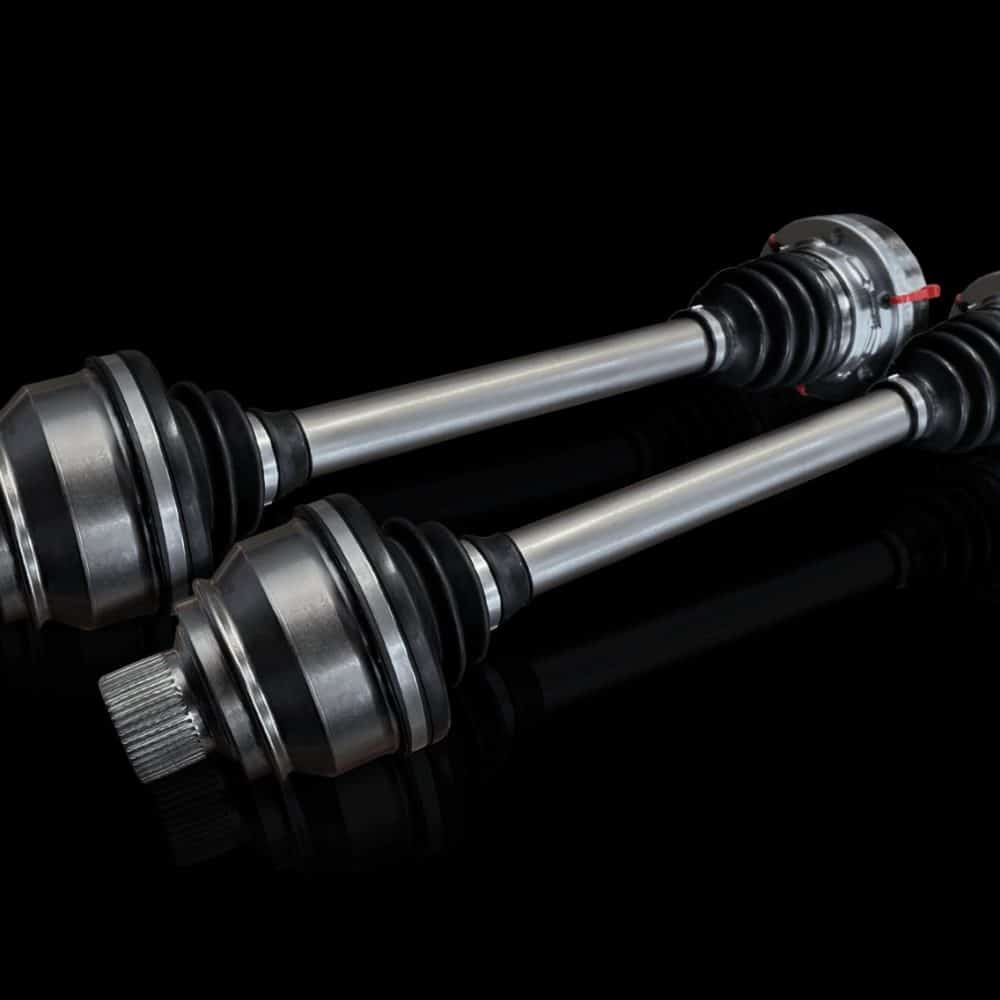

Boost Logic DL800 Competition Series Centerlock Rear Axles for LB724 Lamborghini Huracán and Audi R8

Boost Logic’s Centerlock Rear Axles for LB724 Lamborghini Huracán and Audi R8 are the centerlock-hub version of its DL800 Competition Series rear axle set, built entirely from 300M steel for cars putting boosted V10 power through the DL800 transmission. The CV housings, internal CV components and 30-spline center shafts are all billet 300M, and the shafts are gun-drilled to save weight and absorb shock loads. Boost Logic treats the CV joints with a proprietary process to cut friction and extend joint life. A stock-power car does not need this level of hardware; the set is aimed at high-horsepower and launch-heavy builds where factory axles become the weak link.

Features

Billet 300M CV housings
Billet 300M internal CV components
Gun-drilled, lightweight 30-spline 300M center shafts for shock load damping
Proprietary CV treatment to reduce friction and extend CV life
High-speed CV boots
Sold as a rear axle set

Applications

Audi R8: 5.2L V10
Lamborghini Huracán: LB724 | 2015-2024 | 5.2L V10

Notes

Built for cars with centerlock rear hubs; cars with standard hubs use the Boost Logic DL800 Competition Series Rear Axle Set for LB724 Lamborghini Huracán and 4S Audi R8 (BL 06030415.1)
Boost Logic also makes the Boost Logic DL800 Competition Series Stub Shaft Kit for LB724 Lamborghini Huracán and Audi R8 (BL 06030415.2) in solid billet 300M for the same DL800 transmission
A DL800 300M Rear Axle Set Replacement Boot Kit (BL 06030415.1.1) and a DL800 Locking Axle Bolt Kit, set of 12 (BL 06030413), are sold separately by Boost Logic
Boost Logic lists this set by transmission and hub type rather than by car; confirm your R8 generation and hub type with Bulletproof Automotive before ordering the Centerlock Rear Axles for LB724

Frequently Asked Questions

Do I need the Boost Logic Centerlock Rear Axles for LB724 or the standard set? Choose by hub type. The Centerlock Rear Axles for LB724 Huracán and R8 are built for cars with centerlock rear hubs, while Boost Logic sells a separate DL800 Competition Series rear axle set for standard hubs. Both use the same 300M construction, so the hub fitment on your car is what decides the part number.
What are the axles made from? Boost Logic builds the CV housings, the internal CV components and the 30-spline center shafts from billet 300M, an alloy steel used for high-strength drivetrain parts. The CV joints receive a proprietary treatment that Boost Logic says reduces friction and extends joint life, and the set runs high-speed CV boots.
Why are the center shafts gun-drilled? Boost Logic gun-drills the 30-spline center shafts to take weight out of the axle and to help the shaft absorb shock loads, such as hard launches, rather than passing them straight into the CV joints. The result is a lighter shaft that still carries the strength of solid 300M construction.
Which transmission and cars do the axles fit? The set is built for the DL800 transmission used in the Lamborghini Huracán and the Audi R8 V10, on cars fitted with centerlock rear hubs. Boost Logic does not list individual models or R8 generations for this part, so confirm the car and its hubs with Bulletproof Automotive before ordering.
Can the CV boots be replaced later? Yes. Boost Logic sells a DL800 300M Rear Axle Set Replacement Boot Kit, part number BL 06030415.1.1, for servicing its 300M axle sets. Bulletproof Automotive can source the boot kit and the DL800 locking axle bolt kit alongside the axles when the order is placed.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
