What machining does it require?

Boost Logic designs its billet girdle to require only a line hone, rather than the full line bore that some competing billet girdles need. That keeps the machining simpler, but it still has to be done by an engine machine shop with the engine apart, so the girdle is installed as part of an engine build.

Should I add the oversized ARP main studs?

For most builds, yes. Boost Logic pairs the billet girdle with oversized ARP main fasteners to resolve the bearing wear it saw from block flex, so the stud option completes the design. Choose Without ARP Main Studs only if your engine builder already has suitable main fasteners for the build.

What aluminum is the girdle made from?

The girdle is machined from 7000 series aluminum. Boost Logic chose it because it is strong, with strength comparable to many steels, and has good fatigue strength. It has lower corrosion resistance than many other aluminum alloys but significantly better corrosion resistance than 2000 series alloys.

Is this a bolt-on upgrade for a stock engine?

No. The girdle replaces a structural part of the VR38DETT bottom end, so it is fitted with the engine disassembled and the block line honed. It makes the most sense during an engine build aimed at high power, where block flex and bearing wear become a concern, rather than as a standalone upgrade to a running engine.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

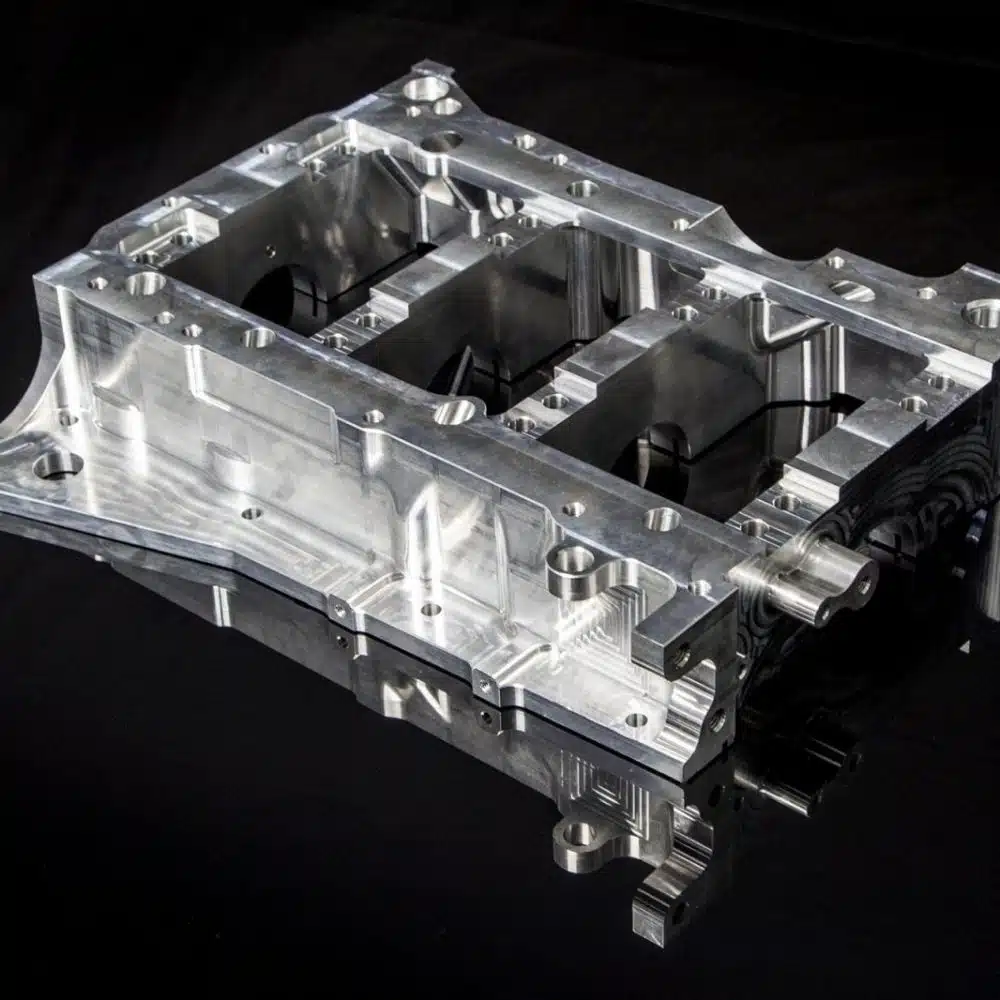

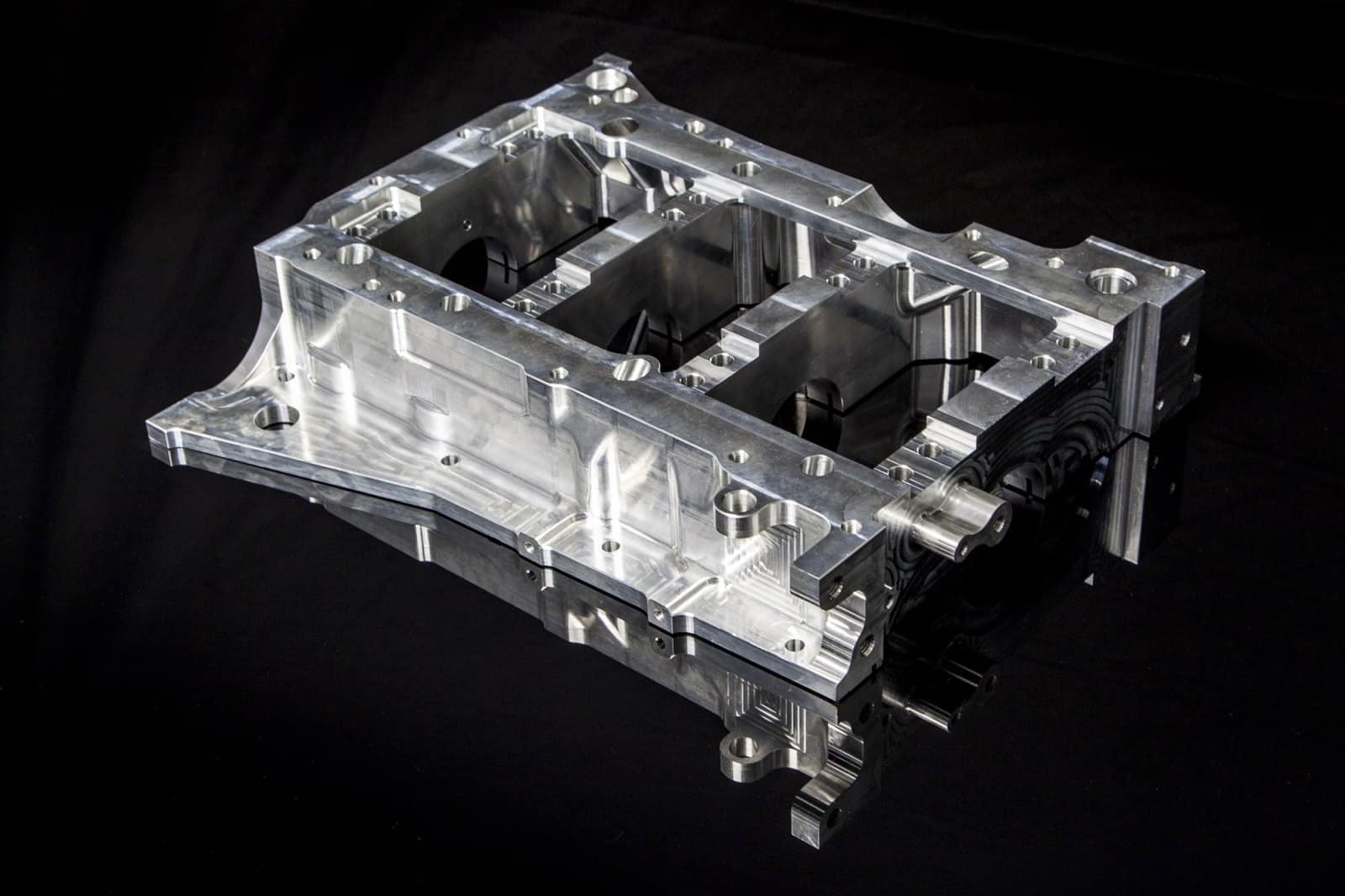

Boost Logic Billet Aluminum Girdle for R35 Nissan GT-R

Boost Logic’s Billet Aluminum Girdle for R35 Nissan GT-R replaces the factory VR38 girdle with a billet part machined from 7000 series aluminum, an alloy with strength comparable to many steels and good fatigue strength. Boost Logic developed it after seeing uneven bearing wear caused by the block flexing with the stock girdle, and offers it with oversized ARP main studs to stiffen the bottom end further. It needs only a line hone, not the full line bore some competing billet girdles require. It is a part for high-power engine builds done with the block apart, not a bolt-on for a stock engine.

Construction

7000 series aluminum has lower corrosion resistance than many other aluminum alloys but significantly better corrosion resistance than 2000 series alloys, and Boost Logic chose it for strength and fatigue life. Reducing block flex is what Boost Logic credits for preventing premature bearing wear and extending the life of the bottom end as a whole.

Features

Machined from billet 7000 series aluminum
Adds significant rigidity to the VR38 block
Reduces the block flex Boost Logic links to uneven bearing wear
Requires only a line hone rather than a full line bore
Optional oversized ARP main studs

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Machining is required: the block needs a line hone when the girdle is installed
Choose Oversized ARP Main Studs to add the ARP oversized mains Boost Logic pairs with the girdle to resolve bearing wear from block flex
The Billet Aluminum Girdle for R35 is fitted during an engine build with the block apart

Frequently Asked Questions

What does the Boost Logic Billet Aluminum Girdle for R35 do? The Billet Aluminum Girdle for R35 replaces the factory VR38 girdle to add significant rigidity to the engine block. Boost Logic found uneven bearing wear caused by the block flexing with the stock girdle, and reducing that flex prevents premature bearing wear and improves the longevity of the bottom end as a whole on high power engines.
What machining does it require? Boost Logic designs its billet girdle to require only a line hone, rather than the full line bore that some competing billet girdles need. That keeps the machining simpler, but it still has to be done by an engine machine shop with the engine apart, so the girdle is installed as part of an engine build.
Should I add the oversized ARP main studs? For most builds, yes. Boost Logic pairs the billet girdle with oversized ARP main fasteners to resolve the bearing wear it saw from block flex, so the stud option completes the design. Choose Without ARP Main Studs only if your engine builder already has suitable main fasteners for the build.
What aluminum is the girdle made from? The girdle is machined from 7000 series aluminum. Boost Logic chose it because it is strong, with strength comparable to many steels, and has good fatigue strength. It has lower corrosion resistance than many other aluminum alloys but significantly better corrosion resistance than 2000 series alloys.
Is this a bolt-on upgrade for a stock engine? No. The girdle replaces a structural part of the VR38DETT bottom end, so it is fitted with the engine disassembled and the block line honed. It makes the most sense during an engine build aimed at high power, where block flex and bearing wear become a concern, rather than as a standalone upgrade to a running engine.

About Boost Logic

Boost Logic was founded in Austin, Texas in 2003 and made its name with Toyota Supra turbo kits, setting street car records at 6speed record days and the Texas Mile that stood long after the company stopped racing Supras competitively. It designs turbo systems, titanium exhausts, intercoolers and engine components for the Toyota Supra, Porsche 911 Turbo, Nissan GT-R, Ferrari and Lamborghini, and its R35 GT-R builds have trapped over 180 mph in the quarter mile and over 200 mph in the half mile.
