Does the BBS XR Matte Bronze Wheel fit a BMW?

It fits BMW and other vehicles with a 5-120 bolt pattern that can run a 20x8.5 wheel at +32mm. BBS sells the XR by size rather than by model, so fender, brake and suspension clearance should be confirmed for the specific BMW first.

What does a +32 offset mean for fitment?

Offset is the distance from the wheel centerline to the mounting face. A lower number moves the wheel outward, so this +32 wheel sits closer to the fender than a higher offset of the same width. That fills the arch more fully but leaves less margin on lowered cars or with wider tires, so measure the clearance before ordering.

Is the XR a forged BBS wheel?

No. The BBS XR Matte Bronze Wheel is a Design Line wheel, low-pressure cast in one piece with its weight refined through FEM analysis. BBS reserves forging for the Forged Line, including the FI-R, which is lighter and costs several times more. The XR is the road wheel for owners who want the BBS name at a cast price.

Does the wheel need a hub ring?

Yes. The XR uses the BBS PFS center bore, short for Precision Fit System, which takes a BBS hub ring sized to the vehicle hub. The ring centers the wheel accurately on the axle, and the right one depends on the vehicle, so confirm it with Bulletproof Automotive when ordering.

How many wheels does this listing include?

One. Each listing is a single 20x8.5 +32 wheel in Matte Bronze, so a complete set means ordering four. The same size is also listed in Black Gloss and Platinum Gloss, and lead time follows the stock BBS of America holds.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

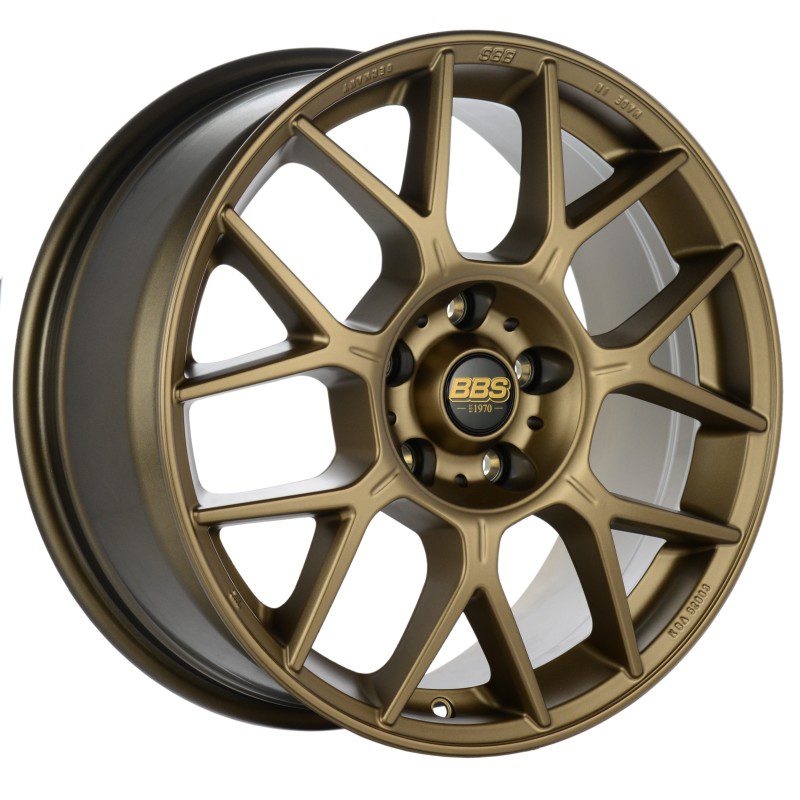

BBS XR Matte Bronze Wheel (20×8.5 5-120 +32)

BBS’s XR Matte Bronze Wheel in 20×8.5 +32 is the 5-120 member of the 20 inch XR family, the bolt pattern most buyers know from BMW, at a lower offset that places the face further out toward the fender. BBS race wheels caught the eye of BMW Motorsport in the 1970s, so a BBS on a 5-120 hub has an obvious pedigree. The XR is a Design Line wheel, low-pressure cast in one piece and refined through FEM analysis. MBZ is the BBS code for Matte Bronze, a soft, low-sheen finish. It suits an owner who wants the BBS look at a cast-wheel price; anyone chasing lap times should look at the forged FI-R instead.

Features

One-piece low-pressure cast aluminum construction
Weight refined through FEM analysis
Seven Y-spoke face
Matte Bronze finish (BBS code MBZ)
20 inch diameter, 8.5 inch width
+32mm offset
5-120 bolt pattern
BBS PFS center bore

Applications

Bolt pattern: 5-120
Size and offset: 20×8.5 +32mm
Fitment basis: The XR Matte Bronze Wheel is sold by size, not by vehicle, and can suit any 5-120 vehicle cleared for this width and offset
Hub centering: BBS PFS hub ring matched to the vehicle hub

Notes

Sold as a single wheel, not a set of four
Confirm brake, fender and suspension clearance for a 20×8.5 +32 wheel before ordering, with extra care on lowered or modified vehicles
Confirm the correct BBS PFS hub ring and lug hardware for the vehicle before ordering
The same wheel is also listed in Black Gloss and Platinum Gloss
Browse the full BBS XR range

Frequently Asked Questions

Does the BBS XR Matte Bronze Wheel fit a BMW? It fits BMW and other vehicles with a 5-120 bolt pattern that can run a 20×8.5 wheel at +32mm. BBS sells the XR by size rather than by model, so fender, brake and suspension clearance should be confirmed for the specific BMW first.
What does a +32 offset mean for fitment? Offset is the distance from the wheel centerline to the mounting face. A lower number moves the wheel outward, so this +32 wheel sits closer to the fender than a higher offset of the same width. That fills the arch more fully but leaves less margin on lowered cars or with wider tires, so measure the clearance before ordering.
Is the XR a forged BBS wheel? No. The BBS XR Matte Bronze Wheel is a Design Line wheel, low-pressure cast in one piece with its weight refined through FEM analysis. BBS reserves forging for the Forged Line, including the FI-R, which is lighter and costs several times more. The XR is the road wheel for owners who want the BBS name at a cast price.
Does the wheel need a hub ring? Yes. The XR uses the BBS PFS center bore, short for Precision Fit System, which takes a BBS hub ring sized to the vehicle hub. The ring centers the wheel accurately on the axle, and the right one depends on the vehicle, so confirm it with Bulletproof Automotive when ordering.
How many wheels does this listing include? One. Each listing is a single 20×8.5 +32 wheel in Matte Bronze, so a complete set means ordering four. The same size is also listed in Black Gloss and Platinum Gloss, and lead time follows the stock BBS of America holds.

About BBS

In 1970, two motor racing enthusiasts from Schiltach in Germany’s Black Forest, Heinrich Baumgartner and Klaus Brand, founded BBS. They started by making lightweight fiberglass body parts to give their own cars a better chance on track. To cut unsprung weight further they developed a three-piece race wheel, which drew the attention of professional teams including BMW Motorsport and grew the company quickly. In 1983 the three-piece RS design arrived and has been one of the most recognized wheels in the industry ever since. Technology through Motorsport has been the company’s mission statement throughout.

BBS builds wheels for cars, trucks and SUVs across three ranges. The Forged Line covers one-piece and two-piece forged designs, the Performance Line covers one-piece and dual-construction flow formed models, and the Design Line covers low pressure cast rims. Design, testing and manufacturing all happen in house, which is how BBS keeps its original equipment programs and its motorsport programs feeding each other.
