Will the BBS XR Matte Bronze Wheel fit my vehicle?

It fits vehicles with a 5-114.3 bolt pattern that can run a 20x8.5 wheel at a +40mm offset. BBS sells the XR by size rather than by model, so brake, fender and suspension clearance should be checked for the specific vehicle before ordering.

Is the BBS XR forged or cast?

Cast. The BBS XR Matte Bronze Wheel is low-pressure cast in one piece, with its weight refined through FEM analysis. Low-pressure casting gives a more even structure than gravity casting, though a forged BBS such as the FI-R stays lighter and stronger at the same size. The XR is built for road use and costs far less.

What is the PFS center bore on BBS wheels?

PFS stands for Precision Fit System. Instead of a fixed bore machined for one vehicle, the wheel takes a BBS PFS hub ring sized to the hub it is going on, which centers the wheel accurately on the axle. The correct ring depends on the vehicle, so confirm it at the time of ordering.

Is this wheel sold individually or as a set?

Individually. Each listing is for one 20x8.5 +40 wheel in Matte Bronze, so a full set means ordering four. Availability varies with BBS of America stock, so contact Bulletproof Automotive to confirm the lead time before ordering a complete set.

What is the Matte Bronze finish?

Matte Bronze is the low-sheen bronze finish BBS codes MBZ in its part numbers, which is why this wheel is XR0304MBZ. The same 20x8.5 +40 XR is also listed in Black Gloss for a darker look at the same size and fitment. Both finishes share the same one-piece cast construction.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

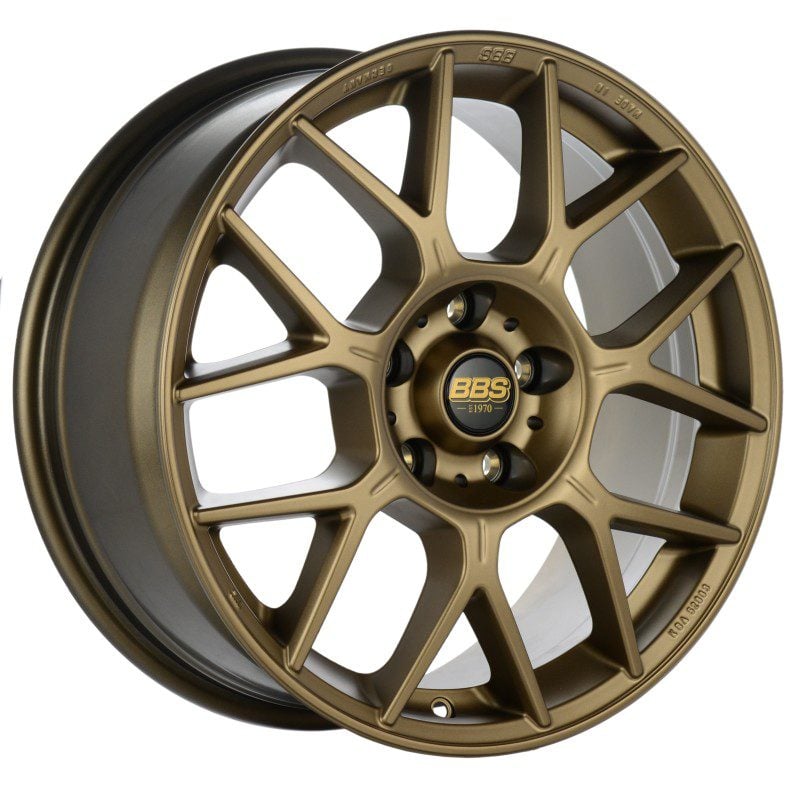

BBS XR Matte Bronze Wheel (20×8.5 5-114.3 +40)

BBS’s XR Matte Bronze Wheel in 20×8.5 with a +40 offset brings the Design Line seven Y-spoke face to vehicles on the 5-114.3 bolt pattern, the five-lug standard across much of the Japanese, Korean and American market. Each wheel is low-pressure cast in one piece, with its weight refined through FEM analysis. Matte Bronze, BBS code MBZ, is a flat, warm metallic finish. As a cast wheel it costs a fraction of a forged BBS, the sensible pick for a daily driver or a second set; a track car is better served by the lighter Forged Line.

Features

One-piece low-pressure cast aluminum construction
Weight refined through FEM analysis
Seven Y-spoke face
Matte Bronze finish (BBS code MBZ)
20 inch diameter, 8.5 inch width
+40mm offset
5-114.3 bolt pattern
BBS PFS center bore

Applications

Bolt pattern: 5-114.3
Size and offset: 20×8.5 +40mm
Fitment basis: The XR Matte Bronze Wheel is sold by size, not by vehicle, and can suit any 5-114.3 vehicle cleared for this width and offset
Hub centering: BBS PFS hub ring matched to the vehicle hub

Notes

Sold as a single wheel, not a set of four
Confirm brake, fender and suspension clearance for a 20×8.5 +40 wheel before ordering, with extra care on lowered or modified vehicles
Confirm the correct BBS PFS hub ring and lug hardware for the vehicle before ordering
The same wheel is also listed in Black Gloss
Browse the full BBS XR range

Frequently Asked Questions

Will the BBS XR Matte Bronze Wheel fit my vehicle? It fits vehicles with a 5-114.3 bolt pattern that can run a 20×8.5 wheel at a +40mm offset. BBS sells the XR by size rather than by model, so brake, fender and suspension clearance should be checked for the specific vehicle before ordering.
Is the BBS XR forged or cast? Cast. The BBS XR Matte Bronze Wheel is low-pressure cast in one piece, with its weight refined through FEM analysis. Low-pressure casting gives a more even structure than gravity casting, though a forged BBS such as the FI-R stays lighter and stronger at the same size. The XR is built for road use and costs far less.
What is the PFS center bore on BBS wheels? PFS stands for Precision Fit System. Instead of a fixed bore machined for one vehicle, the wheel takes a BBS PFS hub ring sized to the hub it is going on, which centers the wheel accurately on the axle. The correct ring depends on the vehicle, so confirm it at the time of ordering.
Is this wheel sold individually or as a set? Individually. Each listing is for one 20×8.5 +40 wheel in Matte Bronze, so a full set means ordering four. Availability varies with BBS of America stock, so contact Bulletproof Automotive to confirm the lead time before ordering a complete set.
What is the Matte Bronze finish? Matte Bronze is the low-sheen bronze finish BBS codes MBZ in its part numbers, which is why this wheel is XR0304MBZ. The same 20×8.5 +40 XR is also listed in Black Gloss for a darker look at the same size and fitment. Both finishes share the same one-piece cast construction.

About BBS

In 1970, two motor racing enthusiasts from Schiltach in Germany’s Black Forest, Heinrich Baumgartner and Klaus Brand, founded BBS. They started by making lightweight fiberglass body parts to give their own cars a better chance on track. To cut unsprung weight further they developed a three-piece race wheel, which drew the attention of professional teams including BMW Motorsport and grew the company quickly. In 1983 the three-piece RS design arrived and has been one of the most recognized wheels in the industry ever since. Technology through Motorsport has been the company’s mission statement throughout.

BBS builds wheels for cars, trucks and SUVs across three ranges. The Forged Line covers one-piece and two-piece forged designs, the Performance Line covers one-piece and dual-construction flow formed models, and the Design Line covers low pressure cast rims. Design, testing and manufacturing all happen in house, which is how BBS keeps its original equipment programs and its motorsport programs feeding each other.
