AWE Tuning Touring Edition Exhaust System w/ Triple Diamond Black Tips for FL5 Honda Civic Type R

AWE Tuning Touring Edition Exhaust System w/ Triple Diamond Black Tips for FL5 Honda Civic Type R

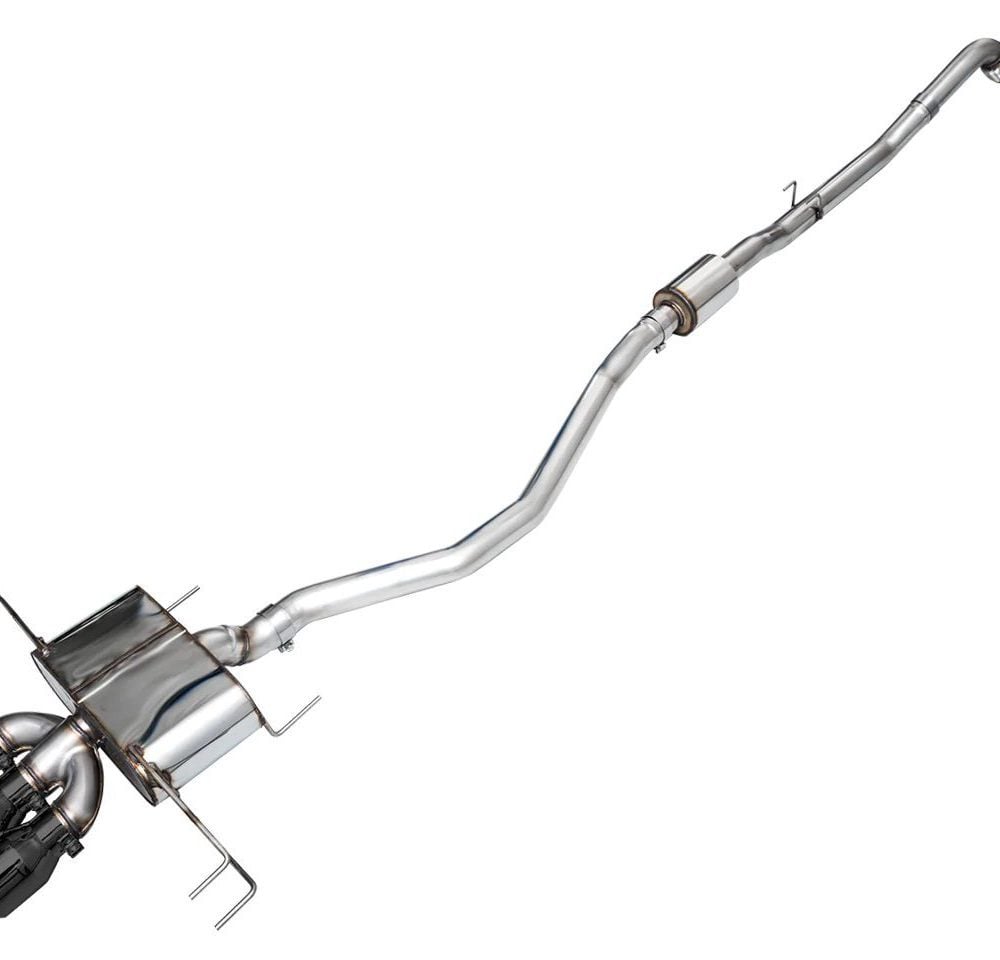

The Touring Edition Exhaust sits at the crossroads of elegance and assertiveness. Crafted as a 3” T304L stainless steel downpipe-back system, it offers an ideal blend for drivers seeking the performance of a straight-pipe, a refined and deep exhaust tone, and a drone-free experience at highway speeds. This edition includes an integrated front pipe, a durable mid-pipe resonator, robust T304L stainless steel, and a version of AWE’s 180 Technology® specially tailored for the FL5 at the rear, making it a versatile choice for daily drivers.

Front Pipes

• Both the Touring and Track Edition Exhausts feature a comprehensive 3” front pipe, uniquely engineered with a specialized flange and gasket to maintain consistent diameter from inlet to outlet. This front pipe is seamlessly incorporated into the exhausts’ design. It’s important to note that AWE exhausts are specifically crafted to align only with their own system and are not intended to be compatible with front pipes from other aftermarket brands.

What is 180 Technology?

• AWE’s 180 Technology® operates in the following manner: Exhaust gases leaving the engine flow into a resonator equipped with AWE’s 180 Technology®, where they pass through ports placed in specific locations, leading into reflection chambers
• Inside these chambers, sound waves from the exhaust gases are reflected off the walls. AWE’s acoustic engineers tailor the size and placement of these ports and chambers to meet the sound requirements of each specific vehicle. By manipulating these critical elements, they precisely control the timing of the sound waves’ exit from the chambers. The carefully timed reintegration of these reflected sound waves with the main exhaust flow produces a 180-degree out-of-phase sound wave that neutralizes unwanted frequencies.
• AWE’s 180 Technology® is customized for each vehicle type, eschewing a one-size-fits-all approach. The engineers at AWE craft sound cancellation resonators specifically tuned to the unique acoustics of different vehicle models, ensuring an impeccable sound every time. This tailored approach is why AWE exhausts are renowned for delivering the perfect tone for a wide range of applications.
• The outcome of this technology is the elimination of undesirable tones in all AWE 180 Technology®-equipped exhaust systems, producing a distinct and ideal sound signature. This results in a perfect blend of unleashed performance and precise tone with every application.

Fitment Guarantee

• Since its inception in 1991 as an aftermarket parts provider, AWE has experienced the challenges of incompatible upgrades. To alleviate this, AWE offers the AWE Fitment Guarantee, ensuring every product they produce is expertly designed for an exact fit. This guarantees an effortless installation process by a qualified professional every single time.

No CEL Guarantee

• The AWE No Check Engine Light Guarantee provides the assurance that no Check Engine Lights will activate, provided the products are installed correctly and used as intended on vehicles without modifications (with the exception of other AWE-compatible products). This guarantee offers a seamless and trouble-free experience without any unexpected warning lights.

50 State Legal

• This product is meticulously designed to be compliant with regulations in all 50 states. It achieves this by not interfering with any emissions control or monitoring systems.

Features

• Full 3” cat-back
• Integrated 3” front pipe includes a unique flange and gasket to accommodate a true 3” diameter from inlet to outlet while successfully mating to the factory interface
• Dyno-proven max gains of 14 hp and 13 ft-lbs of torque at the wheels (stock downpipe)
• Patented drone-canceling 180 Technology®, bespoke for the FL5, developed with and without aftermarket catted DPs
• 46lbs (stock: 50.5lbs)
• Handcrafted from 3” CNC mandrel-bent, U.S.-sourced .065” wall T304L stainless steel
• Straight-forward install (no motor mount removal and generous clearances)
• Direct bolt-on for factory-like simplicity
• Stamped stainless steel trident tip merge with triple 4.5″ double-walled slash-cut tips in diamond black
• Proudly designed, engineered, and manufactured at AWE in the USA
• Perfect fitment guaranteed
• AWE No CEL Guarantee
• Lifetime warranty
• Installation instructions

Contents

• Complete AWE Touring Edition Catback Exhaust
• Gaskets
• Dust cover for factory valve plug
• Three 4.5” slash-cut double-walled tips
• All necessary hardware for installation

Applications

• 2023+ Honda Civic Type R: FL5  |  2.0L T I4 K20C1

About AWE Tuning

AWE is driven by a singular goal: Unleashing Performance. Renowned for their handcrafted, award-winning performance exhausts, along with rigorously tested carbon fiber intakes and high-efficiency intercoolers, AWE is at the forefront of innovation, design, production, retail, and global distribution of their performance products. These products are available through a select network of dealers, online, and directly from their advanced facility located near Philadelphia, Pennsylvania. Established in 1991, AWE’s team of experts, comprising researchers, engineers, innovators, and seasoned drivers, has been dedicated to developing and introducing top-tier performance enhancements for some of the world’s most prestigious vehicles.
