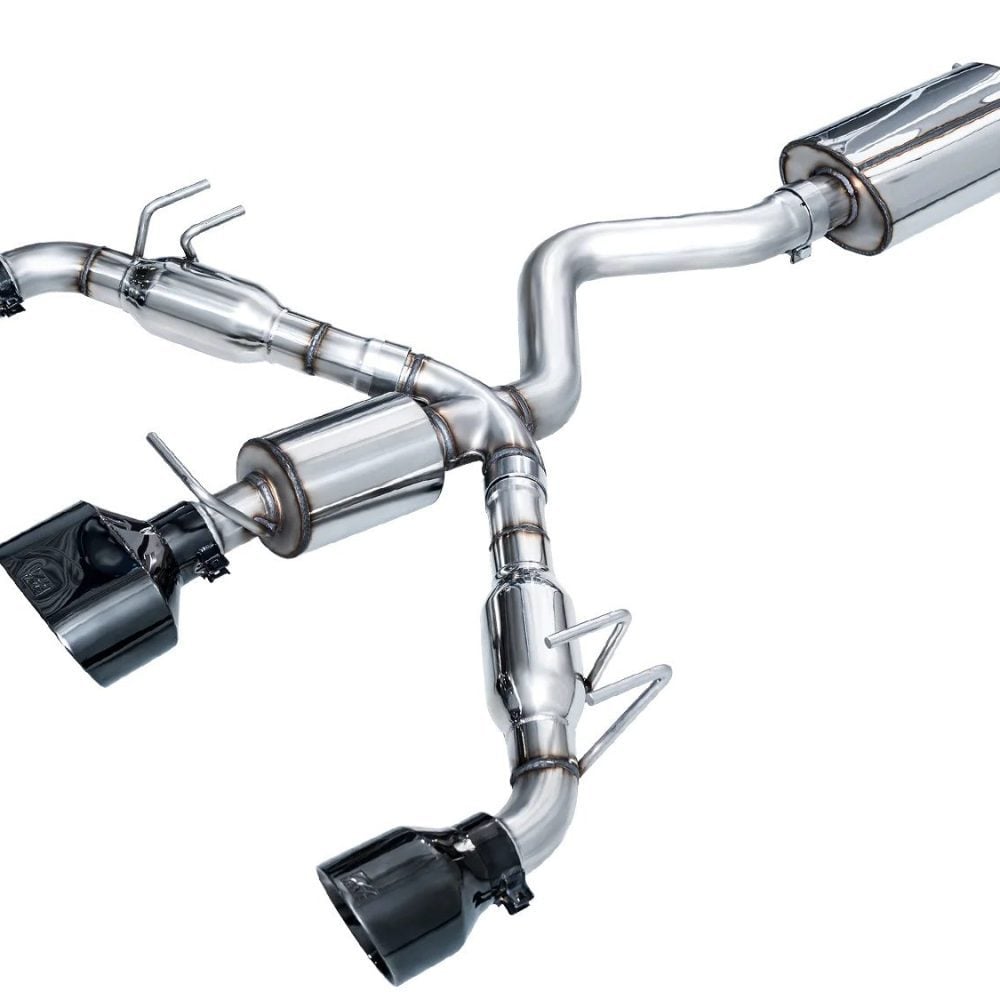

AWE Tuning Touring Edition Exhaust System w/ Diamond Black Tips for GZEA14 Toyota GR Corolla

AWE Tuning Touring Edition Exhaust System w/ Diamond Black Tips for GZEA14 Toyota GR Corolla

The ultimate expression of hot-hatch sound. The Touring Edition Exhaust stands at the crossroads of elegance and fierceness with its 3” T304L stainless steel downpipe-back setup. It delivers a rich, robust, and commanding audio profile that transforms the GRC’s demeanor across the entire spectrum, from idle to full-throttle.

Single 3” to Triple 2.5” Design

• Touring editions come equipped with a 3” mid-pipe inlet, designed to facilitate additional upstream modifications seamlessly. The incorporation of a stamped stainless steel merge at the back ensures a smooth transition from a single 3” pipe to three 2.5” outlets, allowing for uninterrupted flow through each exit.

Bullets in the Back

• Each exhaust system incorporates custom straight-through bullet-style resonators at the rear, delivering an aggressive sound while controlling raspiness.

Tailored Tips

• Featuring a unique 4.5″ x 8″ oval double-walled, slash-cut tip in the middle, accompanied by two 5” double-walled, slash-cut tips in diamond black on either side, these are the most attractive aftermarket tips you can find for the GRC.

Conversion Kits

• AWE simplifies the process of transforming your current Track Edition into a Touring Edition, and vice versa, allowing you to adjust the interior sound level at your convenience. It’s important to note that both the Touring and Track Editions produce an aggressive sound, with the distinction primarily in the subtle range of high frequencies emitted by the 1.6L engine during highway cruising.

Not Valved

• During their research and development phase, AWE meticulously analyzed the factory exhaust valve and its responses across a variety of driving scenarios to understand its function. They found that the valve cannot be manually controlled by the driver through any of the car’s driving modes, buttons, or settings. Instead, it operates based solely on the throttle input and opens only when a specific low-rev threshold, set by the ECU, is surpassed. Its primary function is to manage backpressure. In the design of the factory exhaust, flow is prioritized through the center outlet (the larger one). The factory rear muffler, designed without packing material and baffled, directs exhaust flow to the left and right exits only during cruising at light throttle inputs. After confirming this, and considering that AWE Tuning’s configurations naturally eliminate any backpressure issues, it was deemed unnecessary for them to incorporate valves.

What is 180 Technology?

• AWE’s 180 Technology operates through a meticulous process – as exhaust gases leave the engine, they flow into a resonator equipped with this cutting-edge technology. Inside, the gases move through carefully designed ports into designated reflection chambers.
• In these chambers, sound waves are reflected off the walls. AWE’s team of acoustic engineers precisely calculates the dimensions and placement of these ports and chambers to meet the specific acoustic requirements of each vehicle model. By fine-tuning these elements, they achieve precise control over the timing of the sound waves’ exit from the chambers. This process introduces a sound wave that is phase-shifted by 180 degrees back into the main exhaust flow, effectively neutralizing undesirable sounds.
• AWE’s 180 Technology is not a one-size-fits-all solution; it is custom-engineered to align with the unique acoustic characteristics of each vehicle. Through the development of these vehicle-specific sound cancellation resonators, AWE ensures a flawless sound experience, tailored to each model’s distinct sonic profile. This bespoke approach underpins the exceptional, clear tones produced by AWE exhaust systems across different vehicles.
• This technique not only removes unwanted noises from all exhaust systems featuring the 180 Technology but also establishes a distinctive, optimal sound signature. The outcome is a perfect blend of unbridled performance and expertly engineered sound, distinguishing every application.

Fitment Guarantee

• Since its inception in 1991 as a provider of aftermarket parts, AWE has recognized the challenges posed by incompatible upgrades. In response, AWE offers the AWE Fitment Assurance, a commitment that every product they produce is meticulously designed for an exact fit. This assurance guarantees a hassle-free and straightforward installation by a professional technician on every occasion.

No CEL Guarantee

• The AWE Guarantee Against Check Engine Lights ensures that, provided their products are correctly installed and used as intended on vehicles that haven’t been modified (with the exception of the use of other AWE-compatible products), you won’t encounter any engine warning lights. This promise offers peace of mind, allowing for a seamless experience free from the concern of unforeseen warnings.

Features

• Aggressive Touring Edition
• Three tips, not four. One bespoke 4.5″ x 8″ oval double-walled, slash-cut tip in the center flanked by two 5” double-walled, slash-cut tips in diamond black
• Features patented 180 Technology® to keep the 3-cylinder’s frequencies in check at highway speeds
• Single 3” to triple 2.5” catback design
• 3” inlet to facilitate 3” connections with aftermarket downpipes
• Dyno-proven max gains of 3hp and 1lb-ft of torque at the wheels
• Tailored tri-merge design ensures an even flow
• Less is more – clean, non-baffled, straight-through design maximizes performance
• Handcrafted from 3” U.S. sourced CNC mandrel-bent .065” wall T304L stainless steel
• Proudly engineered, designed, and manufactured in-house, in the USA
• Direct bolt-on system for factory-like simplicity
• Perfect fitment, guaranteed
• No check engine light guarantee
• Featuring the AWE lifetime exhaust warranty
• Installation instructions for AWE exhaust suite for Toyota GR Corolla

Specifications

• Power to the Pavement: Dyno-verified gains of +3hp and +1lb-ft of torque at the wheels on an otherwise stock vehicle
• Weights: 46.5lbs (with clamps & tips)

Applications

• 2023+ Toyota GR Corolla: GZEA14  |  1.6L Turbo I3 G16E-GTS

Notes

• AWE’s Perfect Fitment Guarantee, No CEL Guarantee, and Lifetime Warranty all come standard

100% Emission-Friendly

• Touring Edition exhausts do not interfere with any factory emissions equipment
