Do the 17 hp and 7 ft-lb gains from the AWE RS3 TT RS closed carbon intake require a tune?

Yes. The max gains of 17 hp and 7 ft-lb of torque at the wheels are achieved with stage 1+ software installed. Without supporting software, the intake still improves airflow, sharpens throttle response, and gives the 2.5T five-cylinder a steadier supply of cold air through the closed carbon airbox, but the full power potential is not unlocked until the tune is in place. The Closed Carbon Intake System is also built to handle boost levels beyond stock, making it the correct foundation for higher-stage builds.

What is the difference between the AWE S-FLO Closed and Open Carbon Intake Systems for the RS 3 and TT RS?

The Closed Carbon Intake System adds a bespoke carbon fiber airbox that spans the full width of the grille, pulling ram air directly from the front of the vehicle and delivering it to the S-FLO filter while shielding the filter from engine bay heat. This is what allows the Closed system to put down up to 17 hp and 7 ft-lb at the wheels with stage 1+ software. The Open Carbon Intake System uses the same 4.5" inlet tube and filter but without the enclosed carbon airbox, leaving the filter element exposed to the engine bay environment. That open configuration puts down 7 hp and 3 ft-lb at the wheels with the same software, and trades heat isolation for more prominent induction sound.

Do I need the AWE DV Adapter Kit for the closed carbon intake on a 2019 or newer RS 3 or TT RS?

Yes. The DV Adapter Kit is required for installation on 2019 and newer models due to a change in the diverter valve location on those cars. The adapter is machined in-house from billet 6061 aluminum and includes the adapter, two oil-resistant O-rings, two worm-drive clamps, and 8.75" of high-temp silicone hose. If you have a 2019 or newer model and do not select the DV Adapter Kit at checkout, the intake will not install correctly.

Is the AWE RS3 TT RS closed carbon intake legal for street use?

No. The AWE S-FLO Carbon Intake Suite, including the Closed Carbon Intake System, is designated for competitive racing purposes only and is not intended for street use. It is also not approved for sale or street use in California. Verify compliance for your specific situation with an authorized AWE dealer before purchasing.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

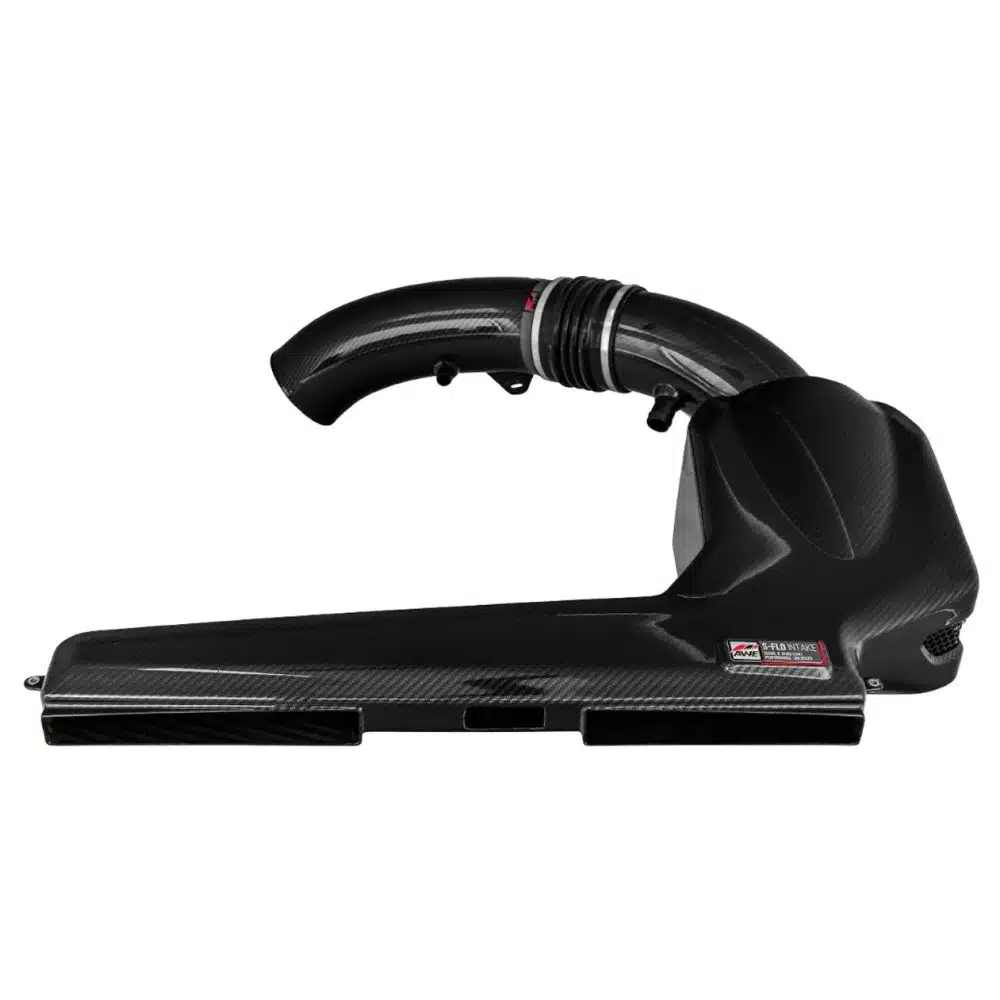

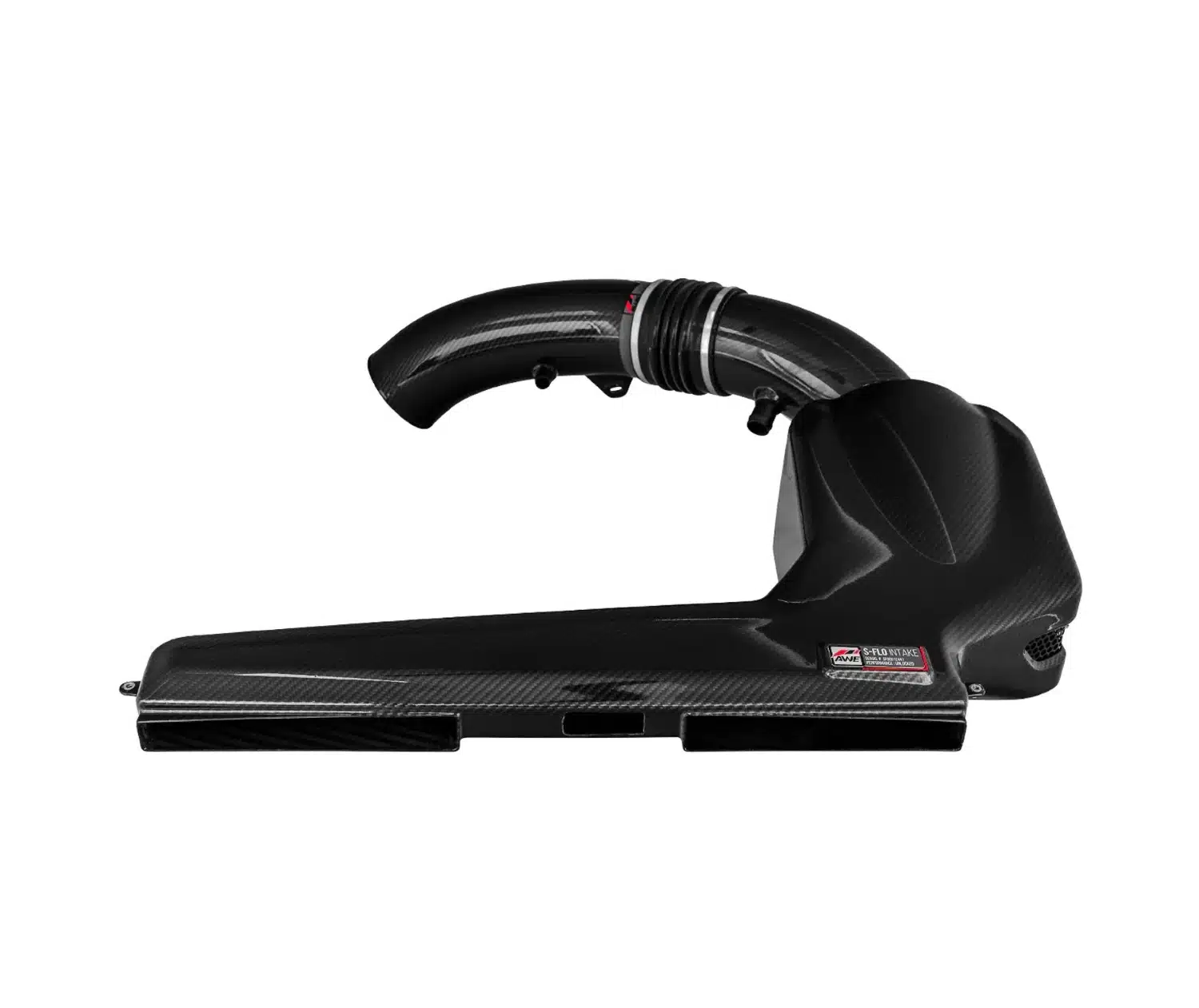

AWE S-FLO Closed Carbon Intake System for 8V / 8Y Audi RS 3 & MK3 TT RS

AWE RS3 closed intake, the S-FLO Closed Carbon Intake System, keeps a sealed airbox design but reworks it with a larger carbon fiber housing and a high-flow filter to improve airflow without exposing the intake to excess engine bay heat. By maintaining a closed system, it draws in cooler, more consistent air while still reducing restriction ahead of the turbocharger, which can help with smoother power delivery and more stable performance, especially in warmer conditions or during repeated pulls. The carbon fiber construction insulates against heat soak better than traditional materials, and the system is engineered to fit cleanly within the factory mounting points, preserving an OEM-like layout while offering a more efficient intake path and a slightly more pronounced, but still controlled, induction sound.

S-FLO Closed Carbon Intake System

The S-FLO Closed Carbon Intake System integrates all components of the S-FLO package with a custom carbon fiber air compartment. Spanning the full width of the grille, it captures ram air from the front of the vehicle and directs it to the S-FLO filter. Its 2×2 carbon fiber construction minimizes heat soak during aggressive driving, while the larger airbox ensures the 2.5T engine receives a steady supply of fresh air. The system can increase power by up to 17hp and 7ft-lb of torque at the wheels, allowing the engine to maintain performance under higher-than-stock boost levels.

Features

Available as individual modular components with an upgrade path, or as a complete kit (open or closed)
Largest constant-diameter intake system available for the Audi 8V / 8Y RS 3 and MK3 TT RS
Oversized 4.5″ carbon intake tube
30% more filter surface area compared to stock
Optimized to capture significantly more cold air than stock and utilize the full air filter
Max gains of 17hp and 7ft-lb of torque at the wheels (closed carbon intake, stage 1+ software)
Distinctive turbo spool and diverter valve sound
Bespoke CNC laser-cut stainless steel support bracket included
Features the washable, oil-less high-flow S-FLO Filter
Integrates seamlessly with OEM inlet ducting, retaining all stock mounting points
DV Adapter Kit available separately for 2019+ models
Constructed from genuine 2×2 carbon fiber with UV-stabilized resin and clear coat
Designed, engineered, and tested entirely in-house at AWE
Fitment guaranteed
AWE No Check Engine Light Guarantee

Applications

Audi RS 3: 8V | 2015-2020 | 2.5L Turbo I5
Audi RS 3: 8Y | 2020-present | 2.5L Turbo I5
Audi TT RS Quattro: 8S | 2018-2023 | 2.5L Turbo I5

Notes

If you have a 2019 or newer model, you will need the AWE DV Adapter Kit for installation
This intake suite is exclusively intended for competitive racing purposes and not for street use

Frequently Asked Questions

Do the 17hp and 7ft-lb gains from the AWE RS3 closed intake require a tune? Yes. The max gains of 17 hp and 7 ft-lb of torque at the wheels are achieved with stage 1+ software installed. Without supporting software, the intake still improves airflow, sharpens throttle response, and gives the 2.5T five-cylinder a steadier supply of cold air through the closed carbon airbox, but the full power potential is not unlocked until the tune is in place. The Closed Carbon Intake System is also built to handle boost levels beyond stock, making it the correct foundation for higher-stage builds.
What is the difference between the AWE RS3 closed intake and the Open Carbon Intake System for the RS 3 and TT RS? The Closed Carbon Intake System adds a bespoke carbon fiber airbox that spans the full width of the grille, pulling ram air directly from the front of the vehicle and delivering it to the S-FLO filter while shielding the filter from engine bay heat. This is what allows the Closed system to put down up to 17 hp and 7 ft-lb at the wheels with stage 1+ software. The Open Carbon Intake System uses the same 4.5″ inlet tube and filter but without the enclosed carbon airbox, leaving the filter element exposed to the engine bay environment. That open configuration puts down 7 hp and 3 ft-lb at the wheels with the same software, and trades heat isolation for more prominent induction sound.
Do I need the AWE DV Adapter Kit for the AWE RS3 closed intake on a 2019 or newer RS 3 or TT RS? Yes. The DV Adapter Kit is required for installation on 2019 and newer models due to a change in the diverter valve location on those cars. The adapter is machined in-house from billet 6061 aluminum and includes the adapter, two oil-resistant O-rings, two worm-drive clamps, and 8.75″ of high-temp silicone hose. If you have a 2019 or newer model and do not select the DV Adapter Kit at checkout, the intake will not install correctly.
Is the AWE RS3 closed intake legal for street use? No. The AWE S-FLO Carbon Intake Suite, including the Closed Carbon Intake System, is designated for competitive racing purposes only and is not intended for street use. It is also not approved for sale or street use in California. Verify compliance for your specific situation with an authorized AWE dealer before purchasing.

About AWE Tuning

AWE is driven by a singular goal: Unleashing Performance. Renowned for their handcrafted, award-winning performance exhausts, along with rigorously tested carbon fiber intakes and high-efficiency intercoolers, AWE is at the forefront of innovation, design, production, retail, and global distribution of their performance products. These products are available through a select network of dealers, online, and directly from their advanced facility located near Philadelphia, Pennsylvania. Established in 1991, AWE’s team of experts, comprising researchers, engineers, innovators, and seasoned drivers, has been dedicated to developing and introducing top-tier performance enhancements for some of the world’s most prestigious vehicles.
