Is this APR wing for Factory Five GTM a direct fit?

Yes. APR builds this GTC-300 as a vehicle-specific wing for the Factory Five GTM, with carbon fiber bottom plates made for the car rather than the aluminum plates used on the universal version. The mounting bases sit 27.5 inches apart center to center, which is worth measuring on any GTM with modified rear bodywork before ordering.

Should a GTM owner choose the GTC-300 or the GTC-500?

The GTC-300 is the mid-size choice, a 67 inch span that suits fast road driving and track days without the drag of a larger wing. APR also makes a 71 inch GTC-500 wing for Factory Five GTM cars, with more chord, which suits a GTM that spends most of its time on circuits.

How long does APR take to build the GTC-300 wing?

APR builds this wing to order and quotes a normal lead time of one to two weeks. Bulletproof Automotive confirms the current build time with APR once the order is placed, because demand can extend it, and sends tracking as soon as the wing leaves Chino, California.

How far can the angle of attack be adjusted?

The GTC-300 adjusts from 0 to 15 degrees on its billet aluminum risers. More angle adds rear downforce for braking and cornering, and less angle reduces drag for top speed, so a GTM can run a steeper setting on a tight circuit and a flatter one on a fast track or the road.

What does the paint protection film option add?

Selecting Yes adds paint protection film that APR applies to the wing before shipping. It protects the clear-coated carbon on the wing from stone chips and light abrasion. Without it, the carbon still carries a UV-resistant clear coat, and gentle non-acidic soap with no paste wax keeps that finish in good condition.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

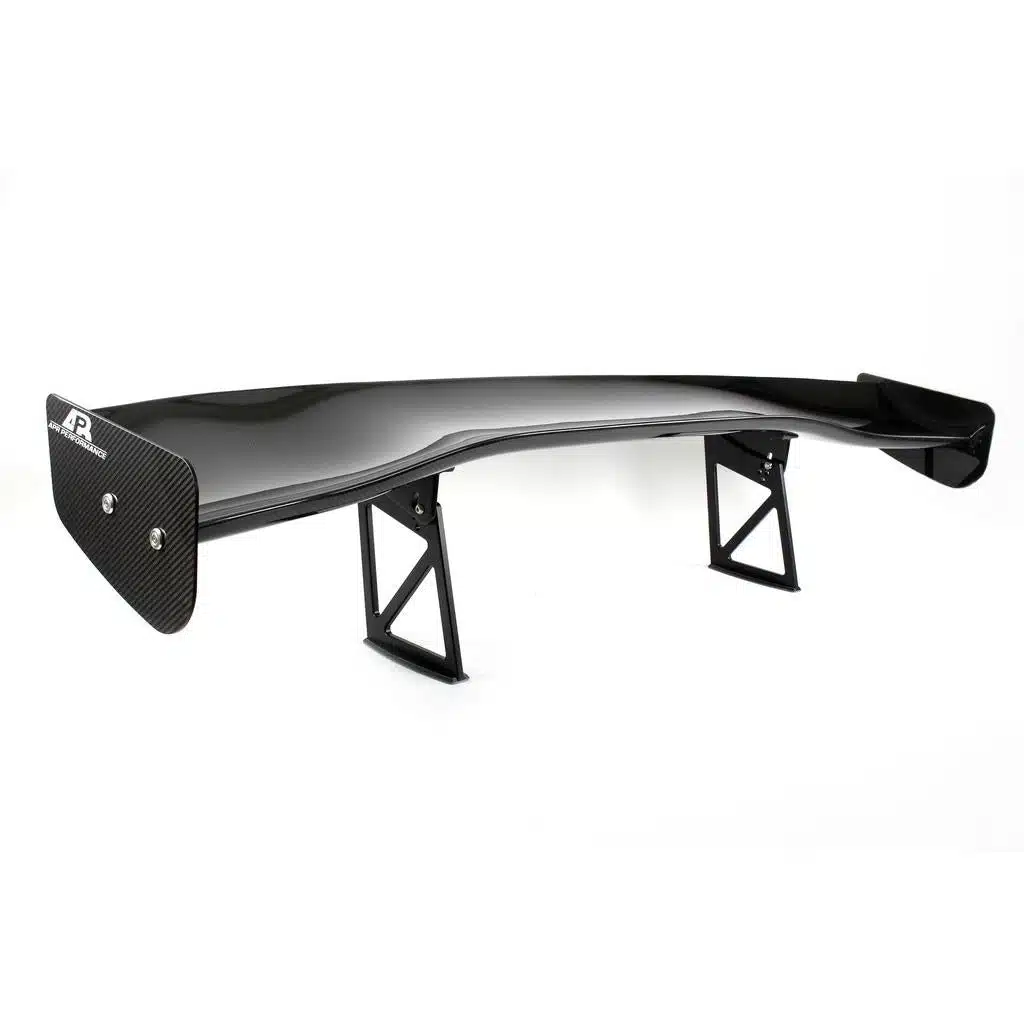

APR Performance Carbon GTC-300 67″ Adjustable Wing for Factory Five GTM Supercar

APR Performance’s Carbon GTC-300 67″ Adjustable Wing for Factory Five GTM Supercar builds gives a mid-engined kit car the kind of rear aero its chassis was always capable of using. APR mounts it through carbon fiber bottom plates made for the GTM, sets the bases 27.5 inches apart, and shapes the airfoil in Computational Fluid Dynamics (CFD) for an 8.8 to 1 downforce-to-drag ratio. At 67 inches the GTC-300 sits in the middle of APR’s range: enough rear load for braking and fast corners, without the drag of the larger GTC-500. It is built to order in Chino, California, for owners who drive their GTM hard rather than simply park it well.

Design and Performance

The cambered profile builds a pressure difference across the airfoil while keeping the flow attached at speed, and the angle of attack adjusts from 0 to 15 degrees. A steeper setting adds rear grip for a tight circuit; a flatter one trims drag for a fast track or the road. The wing stands on angle-adjustable risers machined from 10mm 6061 billet aluminum.

Features

CFD-developed cambered airfoil
Pre-preg woven carbon fiber, autoclave cured in aluminum billet molds
UV-resistant clear coat finish
Adjustable angle of attack
Vehicle-specific carbon fiber bottom plates for the GTM
Optional paint protection film on the wing
Built to order by APR in Chino, California

Specifications

Span: 67 in (1702 mm)
Chord depth: 10 to 12 in (254 to 305 mm)
Angle of attack: 0 to 15 degrees
Downforce-to-drag ratio: 8.8 to 1
Risers: 10mm 6061 billet aluminum
Mounting base spacing: 27.5 in center to center

Applications

Factory Five GTM Supercar

Notes

Measure the rear deck before ordering if the GTM carries modified bodywork, since this APR Wing for Factory Five GTM cars mounts on bases 27.5 inches apart
For more rear downforce, APR also offers the APR Performance Carbon Fiber GTC-500 71 inch Adjustable Wing for Factory Five Racing GTM Supercar
Built to order by APR, with a normal lead time of one to two weeks, confirmed after the order is placed

Frequently Asked Questions

Is this APR wing for Factory Five GTM a direct fit? Yes. APR builds this GTC-300 as a vehicle-specific wing for the Factory Five GTM, with carbon fiber bottom plates made for the car rather than the aluminum plates used on the universal version. The mounting bases sit 27.5 inches apart center to center, which is worth measuring on any GTM with modified rear bodywork before ordering.
Should a GTM owner choose the GTC-300 or the GTC-500? The GTC-300 is the mid-size choice, a 67 inch span that suits fast road driving and track days without the drag of a larger wing. APR also makes a 71 inch GTC-500 wing for Factory Five GTM cars, with more chord, which suits a GTM that spends most of its time on circuits.
How long does APR take to build the GTC-300 wing? APR builds this wing to order and quotes a normal lead time of one to two weeks. Bulletproof Automotive confirms the current build time with APR once the order is placed, because demand can extend it, and sends tracking as soon as the wing leaves Chino, California.
How far can the angle of attack be adjusted? The GTC-300 adjusts from 0 to 15 degrees on its billet aluminum risers. More angle adds rear downforce for braking and cornering, and less angle reduces drag for top speed, so a GTM can run a steeper setting on a tight circuit and a flatter one on a fast track or the road.
What does the paint protection film option add? Selecting Yes adds paint protection film that APR applies to the wing before shipping. It protects the clear-coated carbon on the wing from stone chips and light abrasion. Without it, the carbon still carries a UV-resistant clear coat, and gentle non-acidic soap with no paste wax keeps that finish in good condition.

About APR Performance

APR Performance designs and builds carbon fiber aerodynamic components at its facility in Chino, California. Its wing families are developed with Computational Fluid Dynamics (CFD), and APR publishes the CFD data for its GTC and GT ranges so buyers can compare downforce and drag before choosing a setting. Parts are laid up in pre-preg carbon fiber, cured in an autoclave, finished in a UV-resistant clear coat and covered by a one-year warranty against defects in workmanship and materials.
