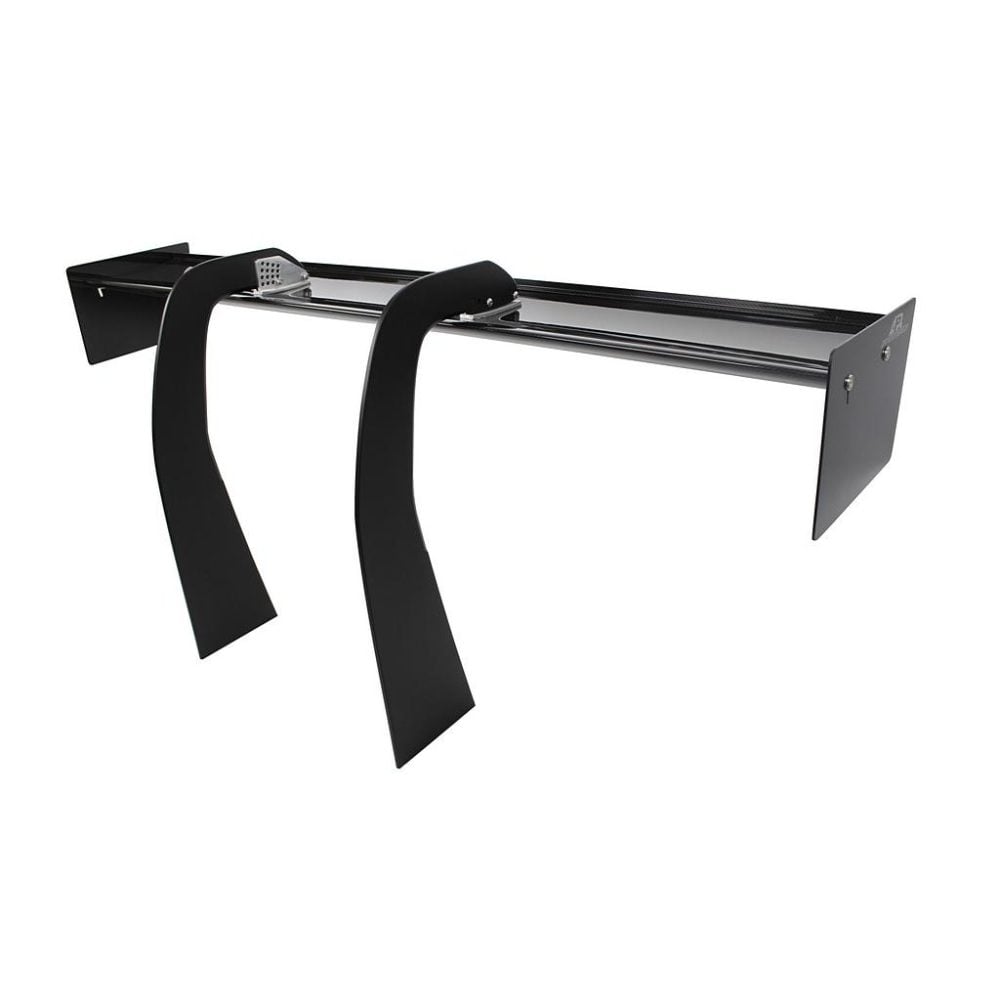

APR Performance Carbon Fiber GT-250 71″ Universal Swan Neck Adjustable Wing

The APR Performance GT-250 Adjustable Wing with Swan Neck pedestals incorporates a streamlined 2D airfoil shape that effectively generates significant downforce while minimizing drag. By utilizing swan neck pedestals, this design prevents flow separation that can diminish downforce in traditional bottom-mount pedestal setups. The swan neck configuration enables a higher Angle-of-Attack (AOA) to be achieved before stalling occurs, surpassing the capabilities of standard bottom-mount pedestals.

Downforce Balance

• Front – X
• Center – X
• Rear – ||||||||

Benefits

Specifications

• Pattern – 2×2 twill weave
• Material – Pre-preg carbon fiber, 3K
• Coating –  UV-stable clear coat
• Wing Measurement –  Custom span Up to 71″, 10″ chord
• Hardware – Stainless-steel machine screws, washers, and nuts
• Mounting – 6061 billet aluminum brackets/pedestals (no mounting bases included), custom fabrication of chassis-mounts required (double-shear recommended)Swan neck pedestal dimensions: 32″ overall height x 13.5″ overall width x 3/8″ thickness. Standard swan neck pedestal-to-pedestal length: 23″ (custom lengths can be accommodated up to 50″)

Features

• The GT Series wings incorporate an all-new 2D airfoil shape with low drag and exceptional aerodynamics. This “2D” design ensures a consistent level of downforce across the entire span of the wing. To validate its aerodynamic performance, Computational Fluid Dynamics (CFD) analysis was conducted on this wing.
• Each airfoil in the GT Series is crafted from lightweight and durable carbon fiber reinforced polymer (CFRP) composite materials. These airfoils feature pre-pregnated woven carbon fiber sheets, which provide superior strength while keeping the weight to a minimum. The manufacturing process involves using pre-pregnated composite techniques, such as high-temperature autoclave and vacuum bagging, with high-quality aluminum billet molds to create all CFRP airfoils.
• Supporting the airfoils are 10mm “aircraft grade” 6061 billet aluminum swan neck pedestals that come in a flat black powder coat finish. Each swan neck pedestal is also “knife-edged” at the trailing edge, to minimize the amount of “dirty” air that reaches the airfoil.

Kit Contents

• Includes Swan Neck Pedestals

Notes

• Every GT-250 wing comes equipped with Gurney flaps, which are already installed for your convenience. These flaps are incredibly lightweight and are manufactured using pre-impregnated carbon fiber processes.
• The standard distance measures 23 inches.
• APR Performance offer custom mounting distance options, but please note that for distances exceeding 30 inches, an additional charge of $185 will apply.
