AMS Performance Front Mount Intercooler Kit for VB Subaru WRX

AMS Performance Front Mount Intercooler Kit for VB Subaru WRX

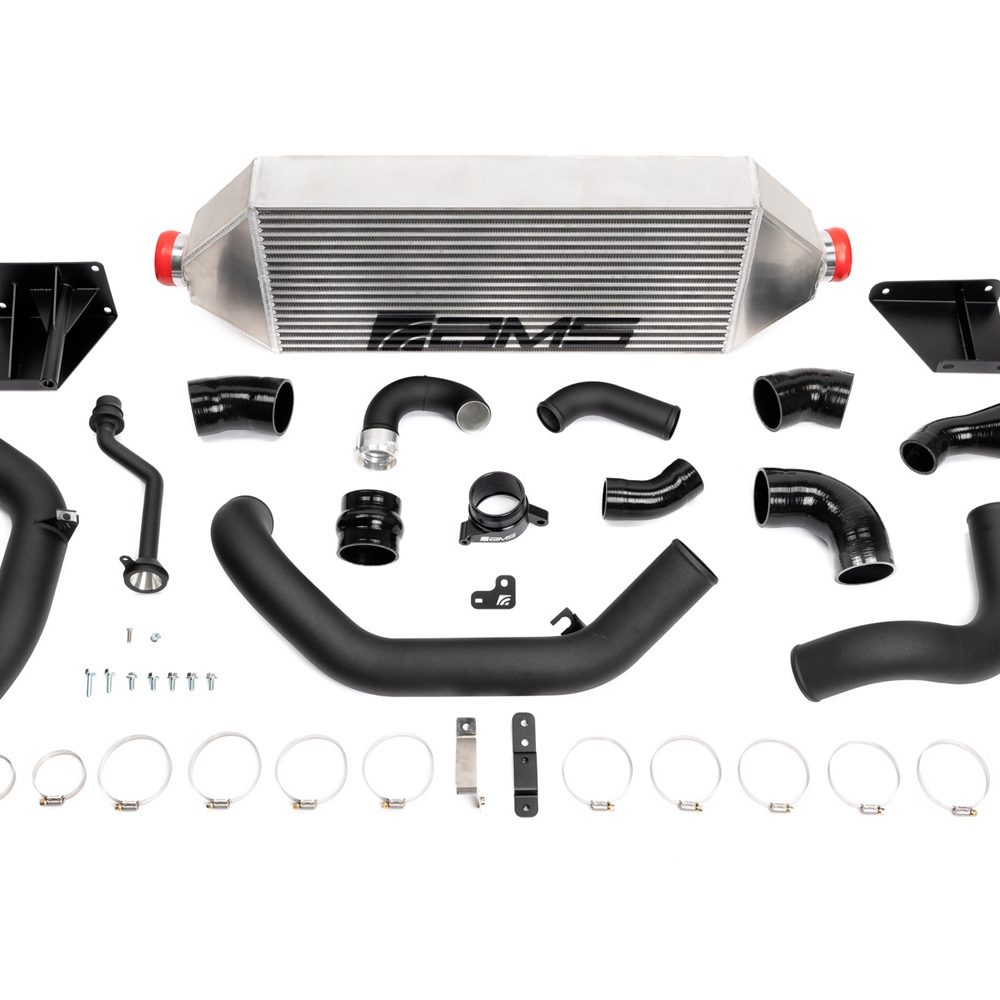

AMS Performance’s 2022+ Subaru WRX Front Mount Intercooler delivers outstanding heat transfer efficiency, thanks to its advanced engineering, high-quality materials, and precise construction. Featuring a 4″ thick, highly efficient AMS intercooler core as standard, this design is backed by decades of motorsports expertise in optimizing turbocharged applications. The kit includes large 3″ intercooler piping, custom silicone couplers with ID-matched connections, CNC billet connection flanges, and premium hose clamps and hardware, ensuring a precise fit. Additionally, several OEM components have been relocated to maintain functionality while enhancing performance. The tow hook mount is integrated into the FMIC mounting bracket, preserving the tow hook’s use. The ambient air temperature sensor has been moved to improve accuracy, and the windshield washer fluid filler neck has been relocated for easier installation and improved usability. With a core volume increase of 347% compared to the factory top mount intercooler, along with high-volume aluminum end tanks, the TIG-welded (USA) 2022+ WRX Front Mount Intercooler core sets a new benchmark in thermal management for the FA24 engine. AMS Performance’s intercooler kit reduces intake temperatures and maximizes the WRX’s power output, regardless of driving conditions, drawing on over 23 years of documented research and development in the forced induction field.

Increased Size for Maximum Cooling

• By increasing the intercooler core’s thickness, the AMS Performance team has achieved a significant boost in cooling efficiency. A 4″ thick bar-and-plate core was chosen as the foundation of the intercooler kit, in contrast to competitors who offer this as an optional upgrade. The massive 26″x12″x4″ core delivers a 347% increase in volume over the stock intercooler and perfectly fits the factory front bumper opening, maximizing heat transfer and reducing charge air temperatures. This increased contact with cool, dense air results in higher power output for the WRX, as cooler intake air directly translates to more horsepower.
• Alongside the impressive 347% volume increase, the AMS Performance 2022+ Subaru WRX Front Mount Intercooler achieves a remarkable 54.4°F reduction in charge air temperature compared to the OEM top mount intercooler, ensuring optimal engine performance even under extreme conditions. Real-world testing conducted by AMS Performance demonstrated a 36.4% reduction in intake air temperatures compared to the OEM TMIC, showcasing a substantial improvement in cooling efficiency, even on a fully modified and custom-tuned test vehicle.

Unrivaled Fitment Through In-Depth Engineering

• Designed using Solidworks 3D CAD software by AMS Performance’s SnailWorks Engineering Team, the 2022+ Subaru WRX Front Mount Intercooler is engineered to be the top performer on the market. Every detail has been carefully considered, including the silicone couplers, which are designed to smoothly transition air into the FA24 engine. The engineers further enhanced the design by integrating a tow hook receptacle into the intercooler mount, ensuring continued functionality in emergency situations. The meticulous attention to detail in the design of the new WRX FMIC distinguishes it from all other offerings on the market.
• The SnailWorks Engineering Team also prioritized ease of installation in the development of the intercooler upgrade. Using the provided mounting hardware, the intercooler securely bolts into place, allowing for a quick and easy installation by either the vehicle owner or a trusted mechanic. While trimming the front bumper is not required, many customers opt to modify the bumper opening to showcase their AMS intercooler and achieve a custom look.
• Several OEM components have been relocated for improved performance and functionality. The ambient air temperature sensor has been moved to a more central, unobstructed position for better readings, and the windshield washer fluid filler neck has been repositioned for easier access. Additionally, the tow hook mount has been integrated into the intercooler mounting bracket, retaining the tow hook’s functionality, which is often lost with competing products. The SnailWorks Engineering Team has considered every aspect to not only enhance the vehicle’s performance but also improve the overall user experience.

Features

• Staggering 347% increase in core volume compared to stock top mount
• One of the largest intercooler cores on the market as standard (26″ x 12″ x 4″)

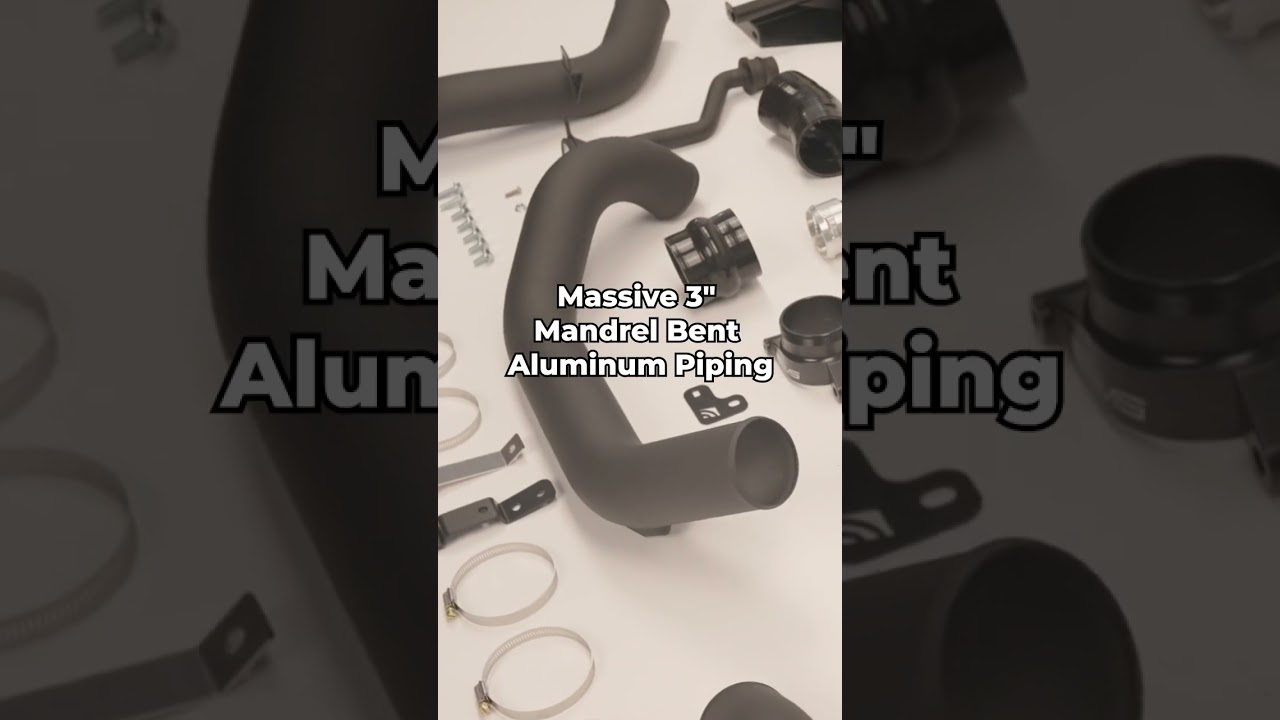

• Massive 3″ mandrel-bent aluminum piping to support high horsepower builds
• 54.4°F reduction in charge air temp compared to OEM TMIC
• Giant 26″ wide bar and plate core to completely fill the front bumper opening
• Relocated windshield washer fluid filler neck for perfect charge pipe fitment
• Integrated tow hook mount to retain use of tow hook
• Ambient air temperature sensor relocated for improved readings
• All AMS intercoolers are pressure tested before boxing

Applications

• Subaru WRX: VB (2022+) – 2.4L Turbo F4 FA24F

Notes

• Instruction manual
• Slight trimming of plastic engine bay liners and removal of factory bumper beam required for installation
