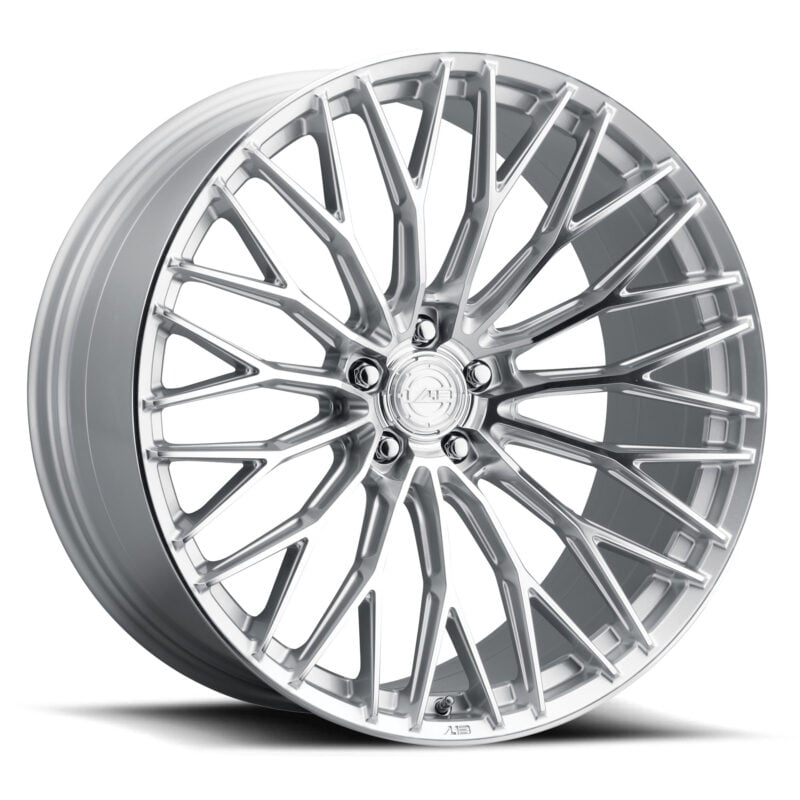

AL13 Flow+Technik Series FR100 Wheel

AL13’s Flow+Technik Series pairs a modern multi spoke look with a lightweight, precision built forged monoblock approach. Each wheel is engineered for strength, reduced unsprung weight, and a deep concave profile, then finished through detailed CNC machining and hands on refinement. The spoke layout keeps the face open for brake cooling and caliper clearance while maintaining the rigidity needed for daily driving and aggressive use. Construction starts with 6061 T6 forged aluminum, followed by long milling cycles, hand finishing, and final assembly checks that meet AL13 run out standards.

AL13 Manufacturing

• Engineering: AL13 Wheels are conceived, engineered, and produced in Southern California with an emphasis on precision design, strict engineering control, and skilled craftsmanship for long term performance. With more than 70 years of combined forged wheel experience, every set is managed in house and verified with Finite Element Analysis testing to balance low weight, durability, and strength.

• Material: APP Forged Wheels use a one piece 6061 T6 aerospace grade forging method to create a lightweight, high strength wheel structure without porosity, welds, or jointed sections. High pressure and heat reshape the aluminum into a forged multi directional grain structure, then a spin forging step strengthens the rim by aligning grain flow with real operating loads for consistent durability.

• Profile: Lathe turning shapes the forging from both sides to build the wheel profile and maximize concavity while removing the majority of excess material for weight savings. This step typically removes more than 70 percent of the starting material to improve the strength to weight balance.

• Milling: After the profile is set, the wheel moves to CNC milling where the final design is cut using dedicated tooling and programmed paths that can run up to eight hours per wheel for tight accuracy. Once machining is complete, each wheel goes through multiple hand finishing steps including filing, deburring, buffing, and ceramic bead high luster polishing, followed by a detailed inspection before coating.

• Prep: Brushing and polishing are among the most time intensive finishing steps and are offered as upgraded options across AL13’s line. Brushed finishes highlight the forged aluminum grain, while touch less high luster ceramic polishing produces a mirror like surface.

• Finishing: Final finishing and assembly are handled to a high standard, with AL13 using select finishing partners in Brisbane, Tokyo, and Hamburg to deliver brushed or polished bases with transparent powder coats and optional gloss, satin, or texture treatments on each component. Every wheel is checked for run out and must measure under 0.010 inch, with many sets landing closer to 0.007 inch, then hardware is torqued with calibrated Digital Snap On torque wrenches, marked, and signed off before packaging.


Finishes

• AL13 Wheels offers two finish programs, Solid and Premium Transparent, each available in a range of colors and sheens including gloss, matte, satin, or textured options.
  • Solid Colors: Available with gloss, satin, or textured clear coat options, with optional 2-tone finishing in brushed or polished.
    • Bronze
    • Dark Grey
    • Grand Prix White
    • Precision Black
    • Race Gold
    • Silver
    • Titanium
  • Transparent Colors: Available in gloss or satin, with brushed, high luster polished, or stone bases, plus optional 2-tone finishing in brushed or polished.
    • Cali Gold
    • Carbon Red
    • Champion Bronze
    • Clear
    • Combustion Blue
    • Liquid Bronze
    • Shadow Black
    • Shadow Grey
    • Shadow Silver

Features

• Aero-space grade 6061 T6 forged aluminum material
• 6061-T6 aluminum rim halves
• Lightweight monoblock configuration
• Tailor-made and built-to-order for specific vehicle fitment
• Milled back-side pocketing for un-sprung mass reduction, promotion of cornering dynamics, stopping power and acceleration
• 2-piece forged carbon fiber center-caps come standard
• Optional Floater Cap with Lug Covers and/or Valve Stems at additional charge
• Boundless component finishing options

Specifications

• Wheel Series: Flow+Technik Series
• Wheel Model: FR100
• Wheel Material / Construction: 6061-T6 forged aluminum
• Wheel Configuration: Monoblock 1-piece
• Diameters:
  • 19″
  • 20″
  • 21″
  • 22″
  • 24″
• Widths:
  • 8″
  • 8.5″
  • 9″
  • 9.5″
  • 10″
  • 10.5″
  • 11″
  • 11.5″
  • 12″
  • 12.5″
  • 13″
• Offsets: Custom
• Bolt Patterns: 5-lug or 6-lug
• Centerlock: No

Notes

• AL13 Wheels are all sold individually
• 6-lug bolt patterns may result in changes to spoke designs to accommodate additional lug pocketing
• AL13 Wheels are individually crafted from the finest materials to your individual spec. There are no “off the shelf” AL13 wheels and as such, a lead time of a few weeks is to be expected once your spec has been finalized. The Bulletproof Team will serve as your concierge throughout the entire process to ensure you get the perfect wheel for your application.
• AL13 also offers 2-Tone Finishing across all color options. Due to the sheer number of possible combinations, these 2-tone configurations may not be shown as selectable options, but they are available to order. If you’re interested in pricing please contact us and we’ll help you spec the right finish package.

About AL13 Wheels

As a renowned leader in the manufacture of performance, luxury and SUV wheels located in Anaheim California USA, AL13 is known throughout the industry for its commitment to priding quality craftsmanship. Utilizing only metals and materials like 6061 T6 aluminum, Titanium alloys, 5454 H34 steel alloy; Acrylics Ceramics & Carbon Fiber fibers with their advanced machining techniques producing superior custom finishes. With experts that account for fitments; tracking systems/standards backed by an impeccable Quality Control team assures long-term dynamic performance along with product integrity from this world’s most distinctive wheel brand.
