Is the Advan Racing TC-4 Umber Bronze Metallic sold as a single wheel or a set?

The Advan Racing TC-4 Umber Bronze Metallic in the 17-inch, 7.5-inch wide, 5-112, +43 size is sold as a single wheel, and the listed price covers one. A full set takes four, or two of this size and two of another for a staggered fitment. Lug nuts, hub-centric rings, TPMS sensors and tires are bought separately.

What is the Ring in the TC-4 Umber Bronze Metallic and Ring finish?

The Ring is a diamond-cut band around the outer edge of the rim flange. Yokohama paints the wheel Umber Bronze Metallic and then machines the flange back to bright aluminum, which outlines the rim and frames the spokes. Yokohama describes Umber Bronze Metallic as close to the color of bronze anodizing.

Does the TC-4 in 5-112 need hub-centric rings?

On Audi and Volkswagen models, yes. The 5-112 versions of the TC-4 have a 66.5mm center bore, which suits many Mercedes-Benz and late BMW hubs. Audi and Volkswagen models with a 57.1mm hub need the hub collar Yokohama sells separately, part Z5864, which steps the bore down from 66.5mm to 57.1mm. Collars and lug bolts are not included.

Which face does the 17-inch, 7.5-inch wide, +43 TC-4 use?

This size uses the Standard face, the flattest of the TC-4 designs. Yokohama assigns the face by width and inset rather than offering it as an option, with three faces on 18-inch wheels and two on 15 to 17-inch wheels. The GTR and Super GTR faces push the spokes deeper.

How many spokes does the Advan TC-4 have?

The TC-4 has five spokes in a full-face design. Yokohama developed it from the TCIII around a new long-spoke concept with the dynamic curve of a rimmed wheel such as the GT. Side cuts sit only at the base and outer end of each spoke, where strength analysis showed weight could come out.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

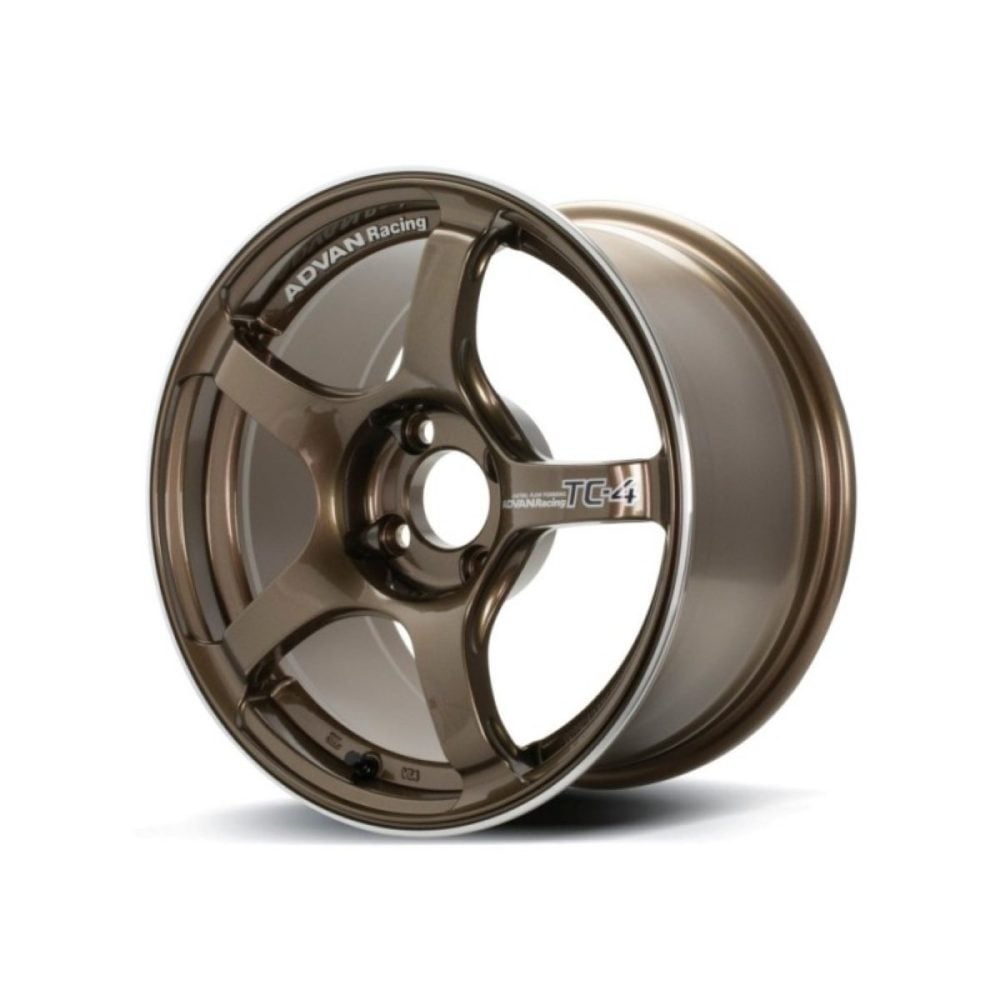

Advan Racing TC-4 Umber Bronze Metallic & Ring Wheel (17×7.5 5-112 +43)

The TC-4 Umber Bronze Metallic in 17×7.5 5-112 +43 brings warm bronze to 5-112 cars. Umber Bronze Metallic sits close to the tone of bronze anodizing, and a diamond-cut ring edges the flange. The Standard face keeps the five long spokes flat, and the 66.5mm bore suits many Mercedes-Benz and BMW hubs.

Features

Full-face five-spoke design with long spokes, the concept Yokohama introduced when the TCIII became the TC-4
Side cuts only at the base of each spoke and at its outer end, placed by strength analysis to save weight without losing rigidity
Standard face on this size; Yokohama uses three faces on 18-inch TC-4 wheels and two on 15 to 17-inch wheels
Umber Bronze Metallic with a diamond-cut ring machined around the outer edge of the rim flange; it is close to the color of bronze anodizing
ADVAN Racing logo cast into the rim between the spokes at more than 1mm tall, with the letter tops machined after painting
Capless design; an ADVAN Racing center cap is sold separately
TC-4 spoke sticker included

Specifications

Diameter: 17 in
Width: 7.5 in
Offset: +43mm
Bolt Pattern: 5-112
Center Bore: 66.5mm
Face Profile: Standard
Finish: Umber Bronze Metallic & Ring
Part Number: YAD7F43MUAR

Applications

5-112 vehicles: The TC-4 Umber Bronze Metallic in this size is made for vehicles with a 5-112 bolt pattern; confirm tire size, brake clearance and fender clearance for your vehicle before ordering

Notes

Sold individually; order four for a full set
Lug nuts, hub-centric rings, TPMS sensors, center caps and tires are not included
Audi and Volkswagen hubs (57.1mm) need the separately sold Yokohama hub collar, part Z5864
Lead times vary, so contact us for a current ETA before ordering

Frequently Asked Questions

Is the Advan Racing TC-4 Umber Bronze Metallic sold as a single wheel or a set? The Advan Racing TC-4 Umber Bronze Metallic in the 17-inch, 7.5-inch wide, 5-112, +43 size is sold as a single wheel, and the listed price covers one. A full set takes four, or two of this size and two of another for a staggered fitment. Lug nuts, hub-centric rings, TPMS sensors and tires are bought separately.
What is the Ring in the TC-4 Umber Bronze Metallic and Ring finish? The Ring is a diamond-cut band around the outer edge of the rim flange. Yokohama paints the wheel Umber Bronze Metallic and then machines the flange back to bright aluminum, which outlines the rim and frames the spokes. Yokohama describes Umber Bronze Metallic as close to the color of bronze anodizing.
Does the TC-4 in 5-112 need hub-centric rings? On Audi and Volkswagen models, yes. The 5-112 versions of the TC-4 have a 66.5mm center bore, which suits many Mercedes-Benz and late BMW hubs. Audi and Volkswagen models with a 57.1mm hub need the hub collar Yokohama sells separately, part Z5864, which steps the bore down from 66.5mm to 57.1mm. Collars and lug bolts are not included.
Which face does the 17-inch, 7.5-inch wide, +43 TC-4 use? This size uses the Standard face, the flattest of the TC-4 designs. Yokohama assigns the face by width and inset rather than offering it as an option, with three faces on 18-inch wheels and two on 15 to 17-inch wheels. The GTR and Super GTR faces push the spokes deeper.
How many spokes does the Advan TC-4 have? The TC-4 has five spokes in a full-face design. Yokohama developed it from the TCIII around a new long-spoke concept with the dynamic curve of a rimmed wheel such as the GT. Side cuts sit only at the base and outer end of each spoke, where strength analysis showed weight could come out.

About Advan Racing

ADVAN is the performance brand of the Yokohama Rubber Company, founded in Japan in 1917, and the name first appeared on Yokohama racing tires in 1978. Advan Racing wheels are designed and built in Japan by Yokohama Wheel, and ADVAN-backed cars have raced in Japanese touring car and endurance series for decades. The TC-4 replaced the TCIII with a new full-face five-spoke concept and now covers 15 to 18 inches.
