Is the Advan Racing TC-4 Umber Bronze Metallic sold as a single wheel or a set?

The Advan Racing TC-4 Umber Bronze Metallic in the 16-inch, 7.5-inch wide, 4-100, +40 size is sold as a single wheel, and the listed price covers one. A full set takes four, or two of this size and two of another for a staggered fitment. Lug nuts, hub-centric rings, TPMS sensors and tires are bought separately.

What is the Ring in the TC-4 Umber Bronze Metallic and Ring finish?

The Ring is a diamond-cut band around the outer edge of the rim flange. Yokohama paints the wheel Umber Bronze Metallic and then machines the flange back to bright aluminum, which outlines the rim and frames the spokes. Yokohama describes Umber Bronze Metallic as close to the color of bronze anodizing.

How is the ADVAN Racing logo applied on the TC-4?

The ADVAN Racing logo is cast into the rim between the spokes, standing more than 1mm tall. After painting, the tops of the letters are machined so they read clearly against the finish. A TC-4 spoke sticker with the newer logo also comes with each wheel.

Does the Advan TC-4 come with a center cap?

No. The TC-4 is a capless design, so it ships without a center cap and the hub shows through the middle of the wheel. Yokohama offers an ADVAN Racing center cap separately. Each wheel does include a TC-4 spoke sticker.

Does the TC-4 in 4-100 need hub-centric rings?

On many cars, yes. The 4-100 versions of the TC-4 have a 63mm center bore, which is larger than the hub on many 4-100 vehicles. Hub-centric rings sized to the hub center the wheel so the lug nuts are not doing that job alone. Rings are sold separately, and a car with a 63mm hub can mount the wheel without them.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

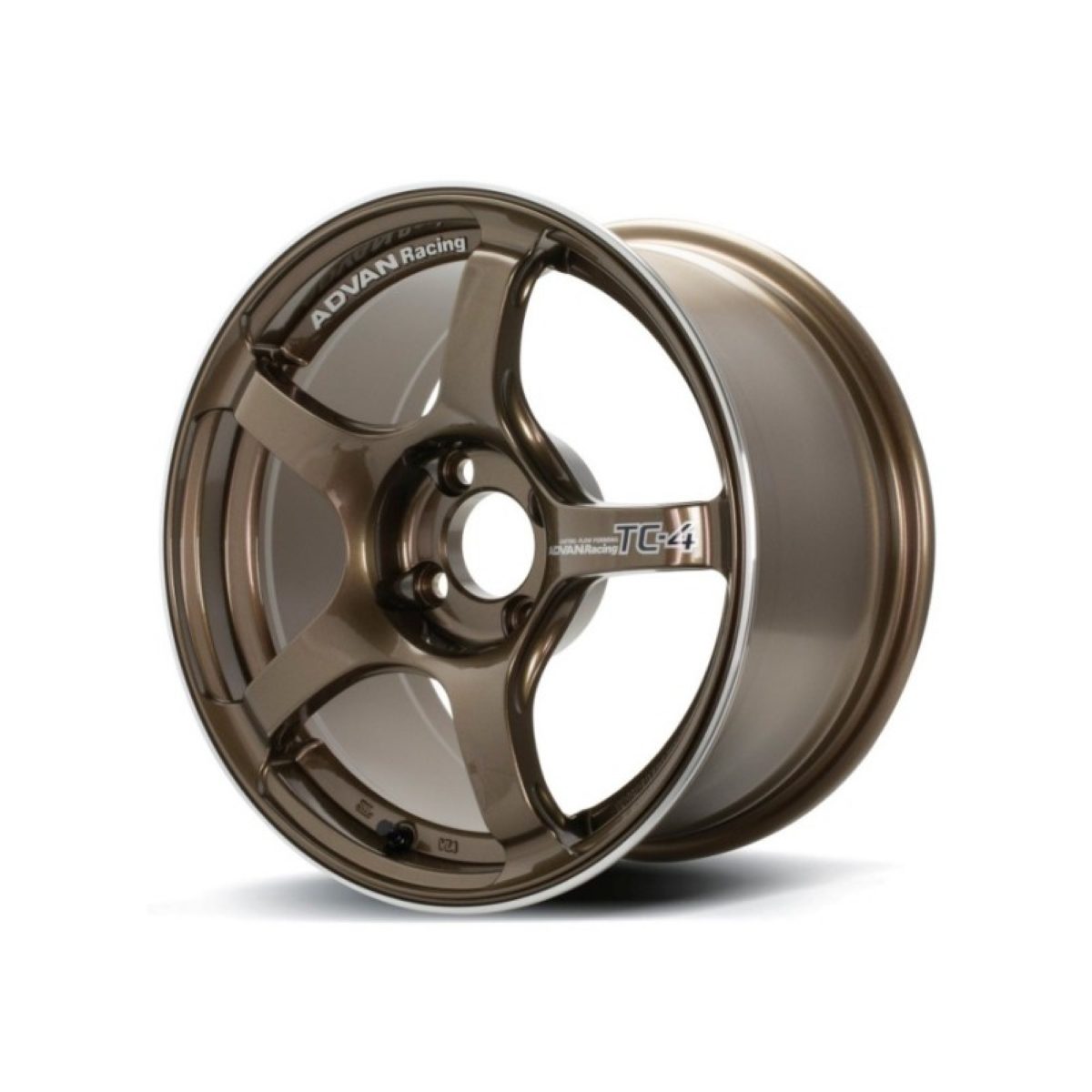

Advan Racing TC-4 Umber Bronze Metallic & Ring Wheel (16×7.5 4-100 +40)

The TC-4 Umber Bronze Metallic in 16×7.5 4-100 +40 puts Umber Bronze Metallic on the widest common four-lug 16 in the TC-4 range. The GTR face dishes the spokes, and a diamond-cut flange ring sets off the bronze. The +40 inset gives a slightly wider stance.

Features

Full-face five-spoke design with long spokes, the concept Yokohama introduced when the TCIII became the TC-4
Side cuts only at the base of each spoke and at its outer end, placed by strength analysis to save weight without losing rigidity
GTR face on this size; Yokohama uses three faces on 18-inch TC-4 wheels and two on 15 to 17-inch wheels
Umber Bronze Metallic with a diamond-cut ring machined around the outer edge of the rim flange; it is close to the color of bronze anodizing
ADVAN Racing logo cast into the rim between the spokes at more than 1mm tall, with the letter tops machined after painting
Capless design; an ADVAN Racing center cap is sold separately
TC-4 spoke sticker included

Specifications

Diameter: 16 in
Width: 7.5 in
Offset: +40mm
Bolt Pattern: 4-100
Center Bore: 63mm
Face Profile: GTR
Finish: Umber Bronze Metallic & Ring
Part Number: YAD6F40AUAR

Applications

4-100 vehicles: The TC-4 Umber Bronze Metallic in this size is made for vehicles with a 4-100 bolt pattern; confirm tire size, brake clearance and fender clearance for your vehicle before ordering

Notes

Sold individually; order four for a full set
Lug nuts, hub-centric rings, TPMS sensors, center caps and tires are not included
Lead times vary, so contact us for a current ETA before ordering

Frequently Asked Questions

Is the Advan Racing TC-4 Umber Bronze Metallic sold as a single wheel or a set? The Advan Racing TC-4 Umber Bronze Metallic in the 16-inch, 7.5-inch wide, 4-100, +40 size is sold as a single wheel, and the listed price covers one. A full set takes four, or two of this size and two of another for a staggered fitment. Lug nuts, hub-centric rings, TPMS sensors and tires are bought separately.
What is the Ring in the TC-4 Umber Bronze Metallic and Ring finish? The Ring is a diamond-cut band around the outer edge of the rim flange. Yokohama paints the wheel Umber Bronze Metallic and then machines the flange back to bright aluminum, which outlines the rim and frames the spokes. Yokohama describes Umber Bronze Metallic as close to the color of bronze anodizing.
How is the ADVAN Racing logo applied on the TC-4? The ADVAN Racing logo is cast into the rim between the spokes, standing more than 1mm tall. After painting, the tops of the letters are machined so they read clearly against the finish. A TC-4 spoke sticker with the newer logo also comes with each wheel.
Does the Advan TC-4 come with a center cap? No. The TC-4 is a capless design, so it ships without a center cap and the hub shows through the middle of the wheel. Yokohama offers an ADVAN Racing center cap separately. Each wheel does include a TC-4 spoke sticker.
Does the TC-4 in 4-100 need hub-centric rings? On many cars, yes. The 4-100 versions of the TC-4 have a 63mm center bore, which is larger than the hub on many 4-100 vehicles. Hub-centric rings sized to the hub center the wheel so the lug nuts are not doing that job alone. Rings are sold separately, and a car with a 63mm hub can mount the wheel without them.

About Advan Racing

ADVAN is the performance brand of the Yokohama Rubber Company, founded in Japan in 1917, and the name first appeared on Yokohama racing tires in 1978. Advan Racing wheels are designed and built in Japan by Yokohama Wheel, and ADVAN-backed cars have raced in Japanese touring car and endurance series for decades. The TC-4 replaced the TCIII with a new full-face five-spoke concept and now covers 15 to 18 inches.
