Is the Advan Racing TC-4 Racing Candy Red sold as a single wheel or a set?

The Advan Racing TC-4 Racing Candy Red in the 17-inch, 7.5-inch wide, 5-114.3, +48 size is sold as a single wheel, and the listed price covers one. A full set takes four, or two of this size and two of another for a staggered fitment. Lug nuts, hub-centric rings, TPMS sensors and tires are bought separately.

What is the Ring in the TC-4 Racing Candy Red and Ring finish?

The Ring is a diamond-cut band around the outer edge of the rim flange. Yokohama paints the wheel Racing Candy Red and then machines the flange back to bright aluminum, which outlines the rim and frames the spokes. Racing Candy Red is a vivid, saturated red.

Does the TC-4 in 5-114.3 need hub-centric rings?

On many cars, yes. The 5-114.3 versions of the TC-4 have a 73mm center bore, which is larger than the hub on most 5-114.3 vehicles. Hub-centric rings sized to the hub center the wheel so the lug nuts are not doing that job alone. Rings are sold separately, and the right size depends on the hub of the car.

Which face does the 17-inch, 7.5-inch wide, +48 TC-4 use?

This size uses the Standard face, the flattest of the TC-4 designs. Yokohama assigns the face by width and inset rather than offering it as an option, with three faces on 18-inch wheels and two on 15 to 17-inch wheels. The GTR and Super GTR faces push the spokes deeper.

How many spokes does the Advan TC-4 have?

The TC-4 has five spokes in a full-face design. Yokohama developed it from the TCIII around a new long-spoke concept with the dynamic curve of a rimmed wheel such as the GT. Side cuts sit only at the base and outer end of each spoke, where strength analysis showed weight could come out.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

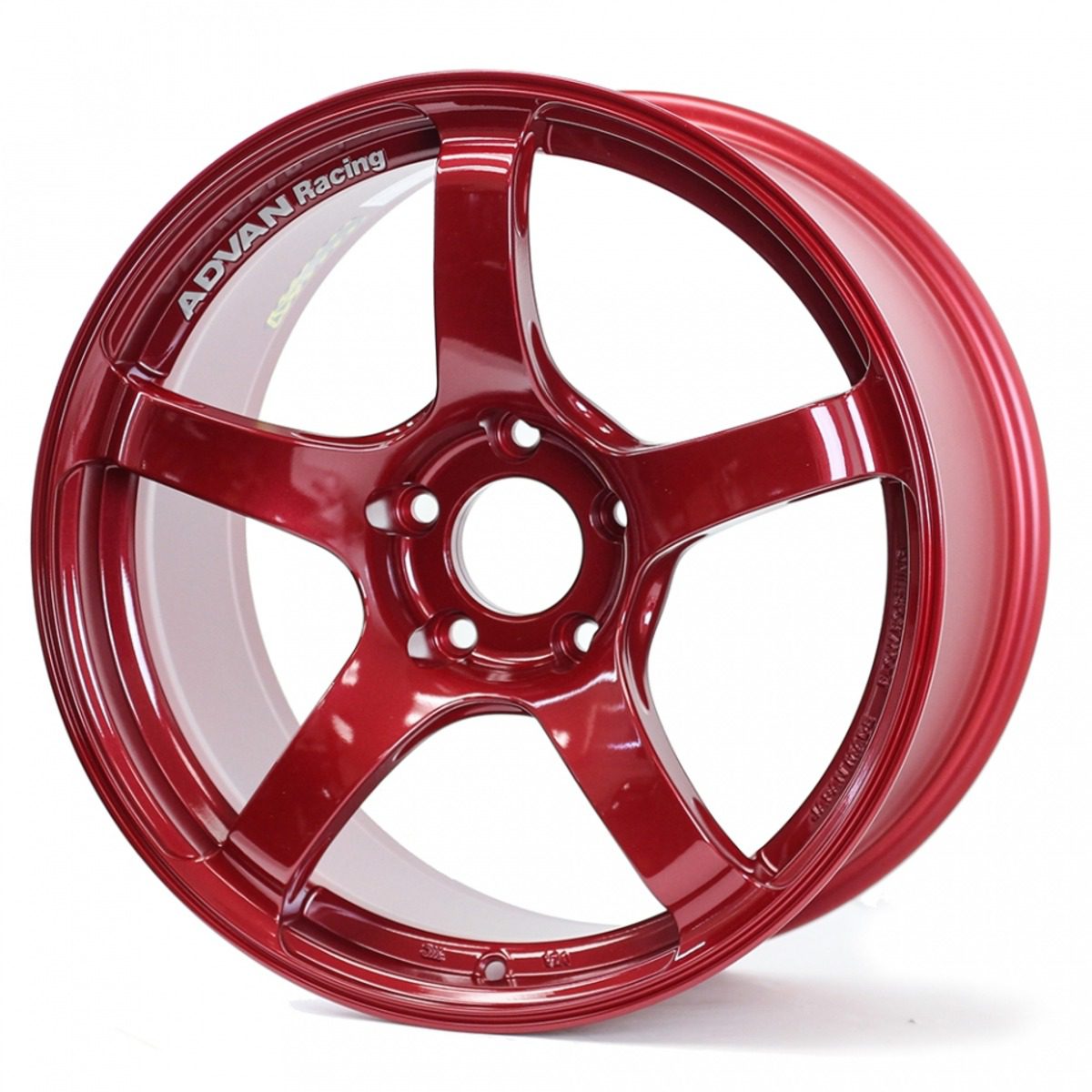

Advan Racing TC-4 Racing Candy Red & Ring Wheel (17×7.5 5-114.3 +48)

The TC-4 Racing Candy Red in 17×7.5 5-114.3 +48 puts Racing Candy Red on a common five-lug 17. The diamond-cut flange ring frames the red, and the Standard face keeps the long spokes flat. The +48 inset suits cars with a high factory offset.

Features

Full-face five-spoke design with long spokes, the concept Yokohama introduced when the TCIII became the TC-4
Side cuts only at the base of each spoke and at its outer end, placed by strength analysis to save weight without losing rigidity
Standard face on this size; Yokohama uses three faces on 18-inch TC-4 wheels and two on 15 to 17-inch wheels
Racing Candy Red with a diamond-cut ring machined around the outer edge of the rim flange; it is a vivid, saturated red
ADVAN Racing logo cast into the rim between the spokes at more than 1mm tall, with the letter tops machined after painting
Capless design; an ADVAN Racing center cap is sold separately
TC-4 spoke sticker included

Specifications

Diameter: 17 in
Width: 7.5 in
Offset: +48mm
Bolt Pattern: 5-114.3
Center Bore: 73mm
Face Profile: Standard
Finish: Racing Candy Red & Ring
Part Number: YAD7F48ECRR

Applications

5-114.3 vehicles: The TC-4 Racing Candy Red in this size is made for vehicles with a 5-114.3 bolt pattern; confirm tire size, brake clearance and fender clearance for your vehicle before ordering

Notes

Sold individually; order four for a full set
Lug nuts, hub-centric rings, TPMS sensors, center caps and tires are not included
Lead times vary, so contact us for a current ETA before ordering

Frequently Asked Questions

Is the Advan Racing TC-4 Racing Candy Red sold as a single wheel or a set? The Advan Racing TC-4 Racing Candy Red in the 17-inch, 7.5-inch wide, 5-114.3, +48 size is sold as a single wheel, and the listed price covers one. A full set takes four, or two of this size and two of another for a staggered fitment. Lug nuts, hub-centric rings, TPMS sensors and tires are bought separately.
What is the Ring in the TC-4 Racing Candy Red and Ring finish? The Ring is a diamond-cut band around the outer edge of the rim flange. Yokohama paints the wheel Racing Candy Red and then machines the flange back to bright aluminum, which outlines the rim and frames the spokes. Racing Candy Red is a vivid, saturated red.
Does the TC-4 in 5-114.3 need hub-centric rings? On many cars, yes. The 5-114.3 versions of the TC-4 have a 73mm center bore, which is larger than the hub on most 5-114.3 vehicles. Hub-centric rings sized to the hub center the wheel so the lug nuts are not doing that job alone. Rings are sold separately, and the right size depends on the hub of the car.
Which face does the 17-inch, 7.5-inch wide, +48 TC-4 use? This size uses the Standard face, the flattest of the TC-4 designs. Yokohama assigns the face by width and inset rather than offering it as an option, with three faces on 18-inch wheels and two on 15 to 17-inch wheels. The GTR and Super GTR faces push the spokes deeper.
How many spokes does the Advan TC-4 have? The TC-4 has five spokes in a full-face design. Yokohama developed it from the TCIII around a new long-spoke concept with the dynamic curve of a rimmed wheel such as the GT. Side cuts sit only at the base and outer end of each spoke, where strength analysis showed weight could come out.

About Advan Racing

ADVAN is the performance brand of the Yokohama Rubber Company, founded in Japan in 1917, and the name first appeared on Yokohama racing tires in 1978. Advan Racing wheels are designed and built in Japan by Yokohama Wheel, and ADVAN-backed cars have raced in Japanese touring car and endurance series for decades. The TC-4 replaced the TCIII with a new full-face five-spoke concept and now covers 15 to 18 inches.
