Is the Advan Racing TC-4 Racing Gun Metallic sold as a single wheel or a set?

The Advan Racing TC-4 Racing Gun Metallic in the 17-inch, 9-inch wide, 5-114.3, +63 size is sold as a single wheel, and the listed price covers one. A full set takes four, or two of this size and two of another for a staggered fitment. Lug nuts, hub-centric rings, TPMS sensors and tires are bought separately.

What is the Ring in the TC-4 Racing Gun Metallic and Ring finish?

The Ring is a diamond-cut band around the outer edge of the rim flange. Yokohama paints the wheel Racing Gun Metallic and then machines the flange back to bright aluminum, which outlines the rim and frames the spokes. Yokohama describes Racing Gun Metallic as close to dark silver.

Does the Advan TC-4 come with a center cap?

No. The TC-4 is a capless design, so it ships without a center cap and the hub shows through the middle of the wheel. Yokohama offers an ADVAN Racing center cap separately. Each wheel does include a TC-4 spoke sticker.

Does the TC-4 in 5-114.3 need hub-centric rings?

On many cars, yes. The 5-114.3 versions of the TC-4 have a 73mm center bore, which is larger than the hub on most 5-114.3 vehicles. Hub-centric rings sized to the hub center the wheel so the lug nuts are not doing that job alone. Rings are sold separately, and the right size depends on the hub of the car.

Which face does the 17-inch, 9-inch wide, +63 TC-4 use?

This size uses the Standard face, the flattest of the TC-4 designs. Yokohama assigns the face by width and inset rather than offering it as an option, with three faces on 18-inch wheels and two on 15 to 17-inch wheels. The GTR and Super GTR faces push the spokes deeper.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

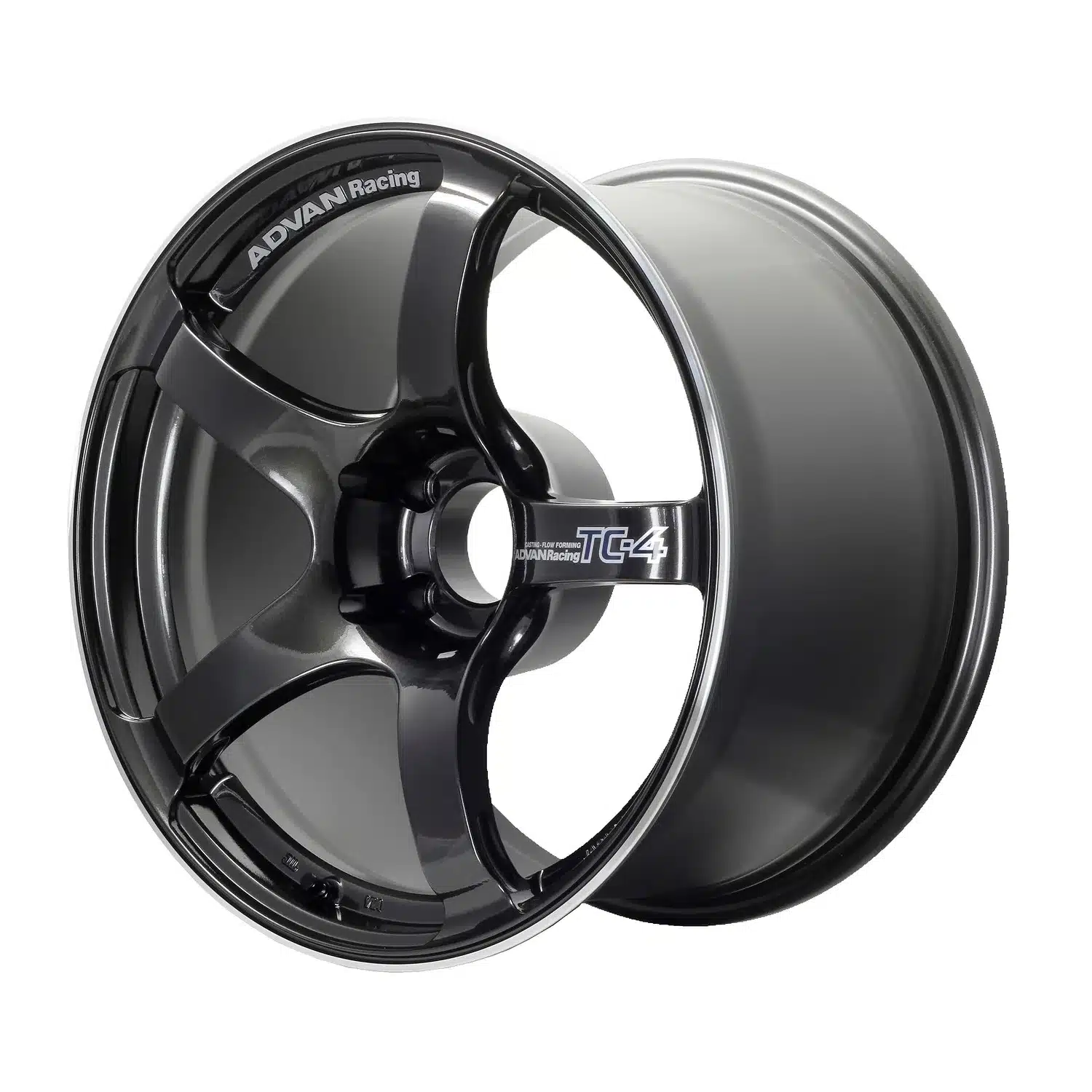

Advan Racing TC-4 Racing Gun Metallic & Ring Wheel (17×9 5-114.3 +63)

The TC-4 Racing Gun Metallic in 17×9 5-114.3 +63 pairs a wide 9-inch barrel with a very high +63 inset that keeps the wheel tucked. Racing Gun Metallic is close to dark silver, and a diamond-cut ring brightens the flange. The Standard face keeps the spokes flat.

Features

Full-face five-spoke design with long spokes, the concept Yokohama introduced when the TCIII became the TC-4
Side cuts only at the base of each spoke and at its outer end, placed by strength analysis to save weight without losing rigidity
Standard face on this size; Yokohama uses three faces on 18-inch TC-4 wheels and two on 15 to 17-inch wheels
Racing Gun Metallic with a diamond-cut ring machined around the outer edge of the rim flange; it is close to dark silver
ADVAN Racing logo cast into the rim between the spokes at more than 1mm tall, with the letter tops machined after painting
Capless design; an ADVAN Racing center cap is sold separately
TC-4 spoke sticker included

Specifications

Diameter: 17 in
Width: 9 in
Offset: +63mm
Bolt Pattern: 5-114.3
Center Bore: 73mm
Face Profile: Standard
Finish: Racing Gun Metallic & Ring
Part Number: YAD7I63EGMR

Applications

5-114.3 vehicles: The TC-4 Racing Gun Metallic in this size is made for vehicles with a 5-114.3 bolt pattern; confirm tire size, brake clearance and fender clearance for your vehicle before ordering

Notes

Sold individually; order four for a full set
Lug nuts, hub-centric rings, TPMS sensors, center caps and tires are not included
Lead times vary, so contact us for a current ETA before ordering
The price covers shipping to the Continental US at no additional cost

Frequently Asked Questions

Is the Advan Racing TC-4 Racing Gun Metallic sold as a single wheel or a set? The Advan Racing TC-4 Racing Gun Metallic in the 17-inch, 9-inch wide, 5-114.3, +63 size is sold as a single wheel, and the listed price covers one. A full set takes four, or two of this size and two of another for a staggered fitment. Lug nuts, hub-centric rings, TPMS sensors and tires are bought separately.
What is the Ring in the TC-4 Racing Gun Metallic and Ring finish? The Ring is a diamond-cut band around the outer edge of the rim flange. Yokohama paints the wheel Racing Gun Metallic and then machines the flange back to bright aluminum, which outlines the rim and frames the spokes. Yokohama describes Racing Gun Metallic as close to dark silver.
Does the Advan TC-4 come with a center cap? No. The TC-4 is a capless design, so it ships without a center cap and the hub shows through the middle of the wheel. Yokohama offers an ADVAN Racing center cap separately. Each wheel does include a TC-4 spoke sticker.
Does the TC-4 in 5-114.3 need hub-centric rings? On many cars, yes. The 5-114.3 versions of the TC-4 have a 73mm center bore, which is larger than the hub on most 5-114.3 vehicles. Hub-centric rings sized to the hub center the wheel so the lug nuts are not doing that job alone. Rings are sold separately, and the right size depends on the hub of the car.
Which face does the 17-inch, 9-inch wide, +63 TC-4 use? This size uses the Standard face, the flattest of the TC-4 designs. Yokohama assigns the face by width and inset rather than offering it as an option, with three faces on 18-inch wheels and two on 15 to 17-inch wheels. The GTR and Super GTR faces push the spokes deeper.

About Advan Racing

ADVAN is the performance brand of the Yokohama Rubber Company, founded in Japan in 1917, and the name first appeared on Yokohama racing tires in 1978. Advan Racing wheels are designed and built in Japan by Yokohama Wheel, and ADVAN-backed cars have raced in Japanese touring car and endurance series for decades. The TC-4 replaced the TCIII with a new full-face five-spoke concept and now covers 15 to 18 inches.
