Does the BRZ / GR86 HD Edition AT-M3 motorsport wing fit both the GR86 and BRZ?

Yes. The ZD8 and ZN8 chassis share the same body and mounting points, so one wing covers the Toyota GR86 and Subaru BRZ.

What's the difference between the standard AT-M3 and the HD Edition?

The BRZ / GR86 HD Edition AT-M3 adds the high-downforce gurney flap and larger, inward-angled endplates from the start, producing more downforce and more drag than the standard AT-M3.

What is the BRZ / GR86 HD Edition AT-M3 wing made from?

The mainplane, endplates, and gurney flap are autoclave-cured prepreg carbon fiber; the uprights are aluminum. Prepreg construction keeps the resin-to-fiber ratio consistent, which a wet layup can't match.

Can the angle be adjusted after it's installed?

Yes. It has eight degrees of adjustment, so you can run the full downforce gain or dial some back for less drag and more top speed depending on the track.

Is it a bolt-on installation?

Yes. All mounting hardware and 3M tape for the gurney are included, and the wing is designed to mount to the factory trunk without additional fabrication.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

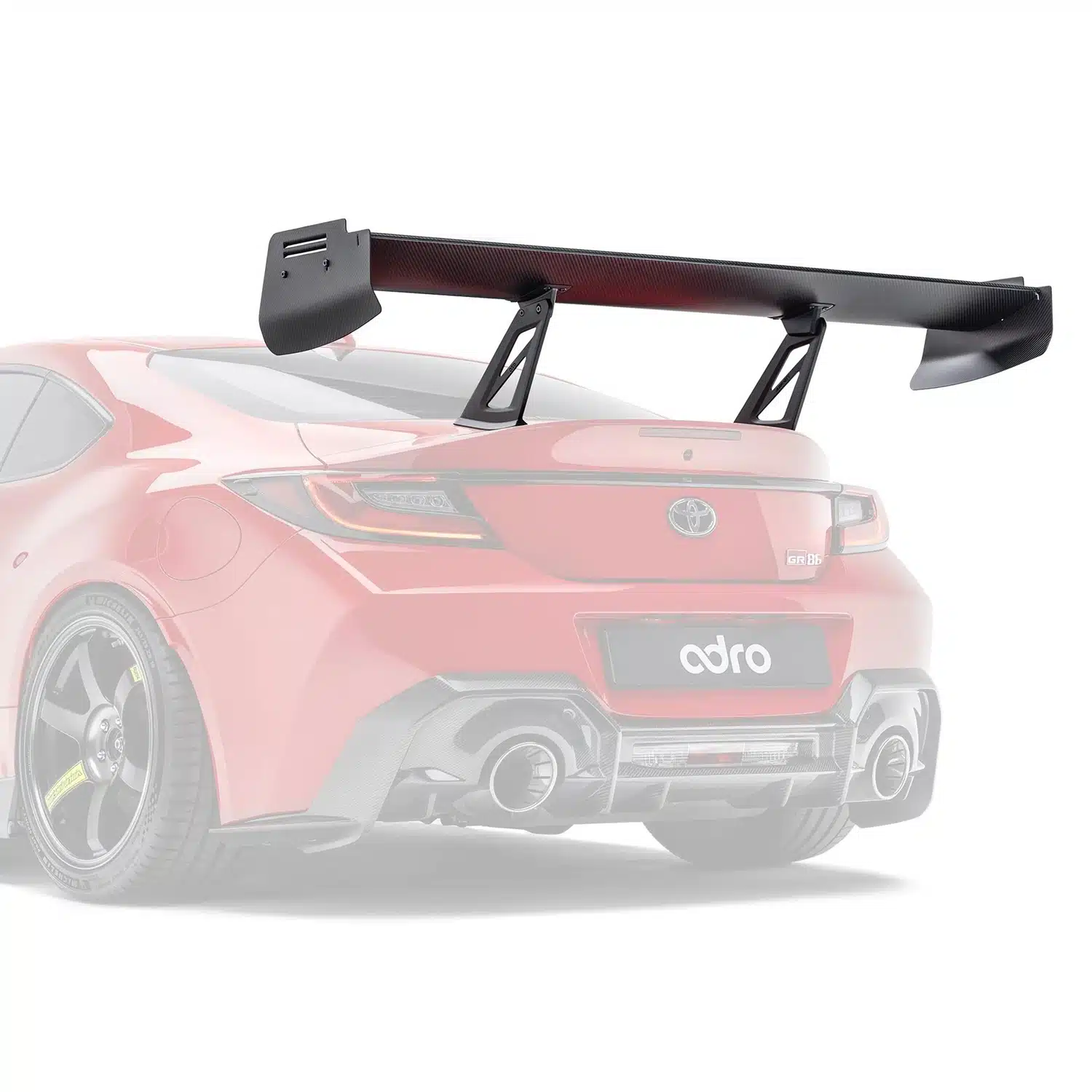

ADRO Carbon AT-M3 Motorsport Wing (HD edition) for ZD8 / ZN8 Subaru BRZ & Toyota GR86

The BRZ / GR86 HD Edition AT-M3 motorsport wing from ADRO exists because the ZD8 / ZN8 platform, tuned or not, starts running out of rear stability right about the time you’re using all of the front grip these cars are known for. In its HD Edition, this is the same AT-M3 mainplane and uprights built for the GR86 and BRZ, but it ships from day one with the high-downforce gurney flap and the larger, inward-angled HD endplates already fitted, instead of something bolted on later once the standard wing turns out to be enough for the street but not enough for a real lapping day. The gain is stated, not implied; roughly 192N (43.2lbs) of additional downforce for about 35N (7.9lbs) of drag at 180km/h (112mph), on top of what the standard AT-M3 already generates on this chassis, measured at a fixed wing angle. Every component, mainplane, gurney, and endplates, is autoclave-cured prepreg carbon fiber, the same process ADRO runs across its lineup, holding the resin-to-fiber ratio tight so the wing doesn’t flex its angle of attack away exactly when a wet layup part would. The gurney sits along the mainplane on 3M tape and picks up at each endplate; all mounting hardware ships with it. If the GR86 or BRZ is going out on track with any regularity, this is the version to spec from the start.

What the Gurney Flap Actually Does

A gurney flap is a small tab standing up at the trailing edge of the wing, and its effect on downforce is out of proportion to its size. Air stacks up against it and rolls off the back edge into a pair of trailing vortices that sit just behind the wing, working like an invisible extension of the wing’s shape. The wing ends up behaving as though its profile were more curved than it physically is, which is the entire mechanism behind the gain; a small piece of geometry changes what the airflow reads as the wing’s shape, and it does it efficiently. The HD endplates are solving a separate problem. Air at the tips of any wing tries to spill from the high-pressure side to the low-pressure side, and every bit that escapes is downforce that never gets used. The HD endplates are larger than the standard AT-M3 units and angle inward at the lower edge instead of sitting flat, sealing more of the wing’s span so that pressure difference stays where it’s doing work. They also pick up the outer ends of the gurney flap, so the mainplane, gurney, and endplates function as one assembly, and on the BRZ / GR86 HD Edition AT-M3 that assembly ships as a single fitted unit from the start.

Dialing In the Extra Downforce

How much of that gain you actually run is up to the driver. The BRZ / GR86 HD Edition AT-M3 gives eight degrees of angle adjustment, so you can take the full downforce number as built, or back the angle off to trade some of it for lower drag and more top-end speed, matching the wing to the track you’re running, the rest of the car’s setup, and how you actually drive it.

Verified by Simulation

ADRO develops this wing digitally before it’s ever cut, running CFD simulation and iterative testing to pin down drag and downforce numbers rather than shaping a part by eye. That process, backed by a team with an aerospace and Formula 1 aerodynamics background, is why the HD Edition’s stated downforce and drag figures are measured, not estimated, and why the prepreg carbon construction holds its geometry instead of flexing away performance under load.

Not For Everybody

ADRO builds for drivers who expect more from a part than it looking good in photos. The engineering and craftsmanship behind each piece are aimed at people who care how a wing actually performs, not just how it sits on the car; the same development work driving that standard is what makes parts like the BRZ / GR86 HD Edition AT-M3 measurably better, not just different.

Features

HD gurney flap and HD endplates fitted from the factory build, not a later add-on
Adds significant downforce and drag over the standard AT-M3
Larger endplates angled inward
Autoclave-cured prepreg carbon fiber construction
Eight degrees of wing angle adjustment
Mounts to the factory decklid using included hardware and 3M tape at the gurney

What’s Included

Mainplate
Left and right endplates
Gurney flap
Left and right uprights
Left and right trunk reinforcement brackets
All mounting hardware

Applications

Subaru BRZ: ZD8 | 2022-present
Toyota GR86: ZN8 | 2022-present

Frequently Asked Questions

Does the BRZ / GR86 HD Edition AT-M3 motorsport wing fit both the GR86 and BRZ? Yes. The ZD8 and ZN8 chassis share the same body and mounting points, so one wing covers the Toyota GR86 and Subaru BRZ.
What’s the difference between the standard AT-M3 and the HD Edition? The BRZ / GR86 HD Edition AT-M3 adds the high-downforce gurney flap and larger, inward-angled endplates from the start, producing more downforce and more drag than the standard AT-M3.
What is the BRZ / GR86 HD Edition AT-M3 wing made from? The mainplane, endplates, and gurney flap are autoclave-cured prepreg carbon fiber; the uprights are aluminum. Prepreg construction keeps the resin-to-fiber ratio consistent, which a wet layup can’t match.
Can the angle be adjusted after it’s installed? Yes. It has eight degrees of adjustment, so you can run the full downforce gain or dial some back for less drag and more top speed depending on the track.
Is it a bolt-on installation? Yes. All mounting hardware and 3M tape for the gurney are included, and the wing is designed to mount to the factory trunk without additional fabrication.

About ADRO

ADRO is a carbon fiber and aerodynamics manufacturer built around a background in aerospace and Formula 1 engineering. Rather than shaping parts by eye, the company develops each design digitally first, using 3D scanning and surface modeling, then validates it through computational fluid dynamics simulation before it ever becomes a physical piece. Production runs through a seven-stage process using prepreg carbon fiber and other composite materials, chosen for how they perform under load rather than just for weight savings. That combination of simulation-driven design and motorsport-grade manufacturing is what ADRO applies across its lineup, from aerodynamic components to full styling packages, for drivers who want parts that are engineered first and styled second.
