Does the Methanol Injection System for E36 need a supercharged or turbocharged engine?

Yes. Active Autowerke developed the Methanol Injection System for E36 BMW M3, 325i and 328i to counter the heat that superchargers and turbochargers add to the intake charge. Its control module reads boost pressure to decide how much fluid to deliver, so the system belongs on an E36 that already runs forced induction.

How does water methanol injection help a boosted engine?

Compressing air heats it, and a hot intake charge leaves the engine heat soaked and down on power. Injecting a water and methanol mix cools that charge back down. The mix also raises the knock limit of the engine, which acts as insurance against detonation when boost pressure is high.

Where does the reservoir mount in the E36?

The reservoir mounts in the trunk, which Active Autowerke chose because it is the point farthest from both engine and exhaust heat. A rigid mount holds it securely in place on the road, and spring-loaded quick releases let it be lifted out easily when the space is needed.

How much fluid does the reservoir hold?

The reservoir holds more than 1.8 gallons of water and methanol mix. Active Autowerke sized it to cover most demands between refills. How long a fill lasts depends on how often and how hard the car runs on boost, since the module only delivers fluid in proportion to load.

How is the injection rate controlled?

A dedicated electronic module meters the mix. It monitors boost pressure inside the engine and adjusts the delivery flow to match engine load and demand, so the amount of fluid rises and falls with boost instead of running at one fixed rate. Active Autowerke designed the module so the mix is delivered precisely where it is needed.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

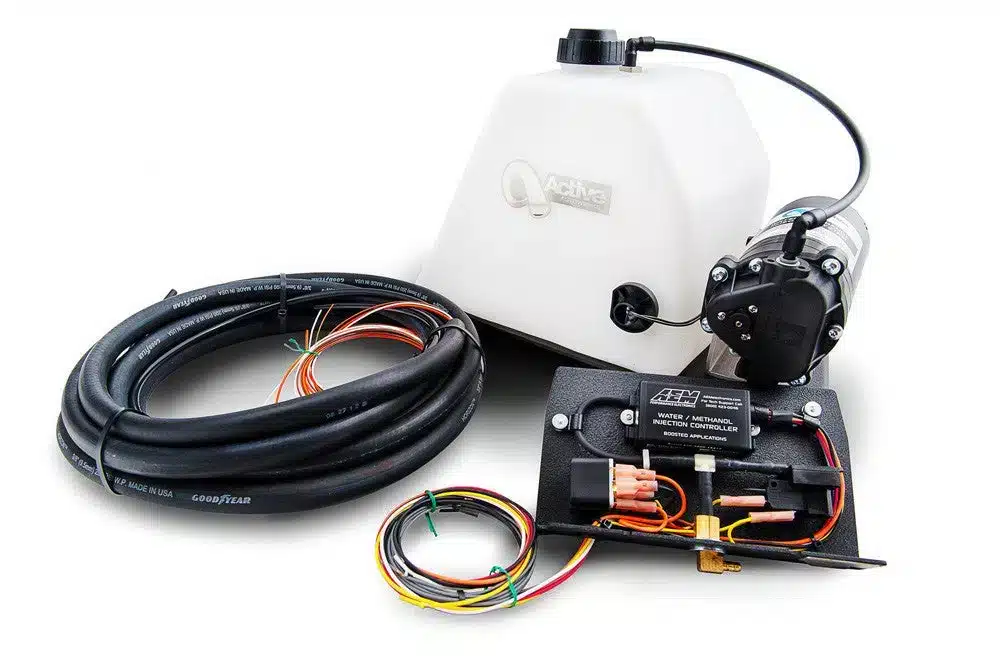

Active Autowerke Methanol Injection System for E36 BMW M3, 325i and 328i

Active Autowerke’s Methanol Injection System for E36 BMW M3, 325i and 328i answers a problem that every supercharged or turbocharged E36 shares: the same compressor that makes the boost also heats the air it delivers, and a heat-soaked engine gives back the power it was meant to gain. A metered spray of water and methanol pulls that heat out of the intake charge and raises the knock limit of the engine, which gives a high-boost setup more protection against detonation. Delivery is governed by a dedicated electronic module that reads boost pressure. That makes it a part for the forced-induction E36 specifically; a naturally aspirated car gives the module nothing to respond to.

Features

Reservoir of more than 1.8 gallons, sized to meet most demands
Trunk mounting keeps the fluid as far as possible from engine and exhaust heat
Rigid, secure reservoir mount
Spring-loaded quick releases free the reservoir when the trunk is needed
Dedicated electronic module meters every delivery
Flow scaled to engine load and demand, not fixed

Applications

BMW 325i: E36 | 1992-1995 | 2.5L M50
BMW 328i: E36 | 1996-1999 | 2.8L M52
BMW M3: E36 | 1995 | 3.0L S50
BMW M3: E36 | 1996-1999 | 3.2L S52

Notes

The Methanol Injection System for E36 BMW M3, 325i and 328i is developed for supercharged and turbocharged engines
It complements the Active Autowerke supercharger kits for the E36, among them the Level 1 Supercharger Kit for E36 BMW M3 and the Level 1 Supercharger Kit for E36 BMW 328i

Frequently Asked Questions

Does the Methanol Injection System for E36 need a supercharged or turbocharged engine? Yes. Active Autowerke developed the Methanol Injection System for E36 BMW M3, 325i and 328i to counter the heat that superchargers and turbochargers add to the intake charge. Its control module reads boost pressure to decide how much fluid to deliver, so the system belongs on an E36 that already runs forced induction.
How does water methanol injection help a boosted engine? Compressing air heats it, and a hot intake charge leaves the engine heat soaked and down on power. Injecting a water and methanol mix cools that charge back down. The mix also raises the knock limit of the engine, which acts as insurance against detonation when boost pressure is high.
Where does the reservoir mount in the E36? The reservoir mounts in the trunk, which Active Autowerke chose because it is the point farthest from both engine and exhaust heat. A rigid mount holds it securely in place on the road, and spring-loaded quick releases let it be lifted out easily when the space is needed.
How much fluid does the reservoir hold? The reservoir holds more than 1.8 gallons of water and methanol mix. Active Autowerke sized it to cover most demands between refills. How long a fill lasts depends on how often and how hard the car runs on boost, since the module only delivers fluid in proportion to load.
How is the injection rate controlled? A dedicated electronic module meters the mix. It monitors boost pressure inside the engine and adjusts the delivery flow to match engine load and demand, so the amount of fluid rises and falls with boost instead of running at one fixed rate. Active Autowerke designed the module so the mix is delivered precisely where it is needed.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
