Will the N20 downpipe fit my N26 car?

No. The 228i, 328i and 428i were built with either the N20 or the N26 engine, and the two take different downpipes. Active Autowerke asks for the VIN with each order to confirm an N20 before shipping. N26 owners should choose the GESI Catted Downpipe for N26 instead.

Is a tune required for the GESI Catted Downpipe for N20?

No. Active Autowerke sells the GESI Catted Downpipe for N20 for use on factory software and states that it will not set a catalyst efficiency code. Owners who tune the car later keep the same downpipe, since the 3.5 inch pipework flows well beyond the factory part.

How quickly does the converter start working?

Active Autowerke rates the GESI converter to reach operating efficiency within 9 seconds of startup. Fast light-off keeps emissions low on short trips and stops the downstream oxygen sensor from flagging a weak catalyst, and the converter is built to withstand exhaust temperatures up to 1500F.

What does installation involve?

The downpipe bolts into the factory location with no cutting or welding. Active Autowerke kept the bends to a minimum while matching the stock mounting points, so the job is a straight swap. Working on a lift is far easier than on the ground, and the factory part can be kept.

How long is the warranty?

Active Autowerke covers the stainless shell and tube ends for 5 years or 50,000 miles and the catalytic core for 2 years or 25,000 miles, for the original purchaser only. Cover on the core is void if the car is tuned for more burble than stock, because that destroys the catalyst.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

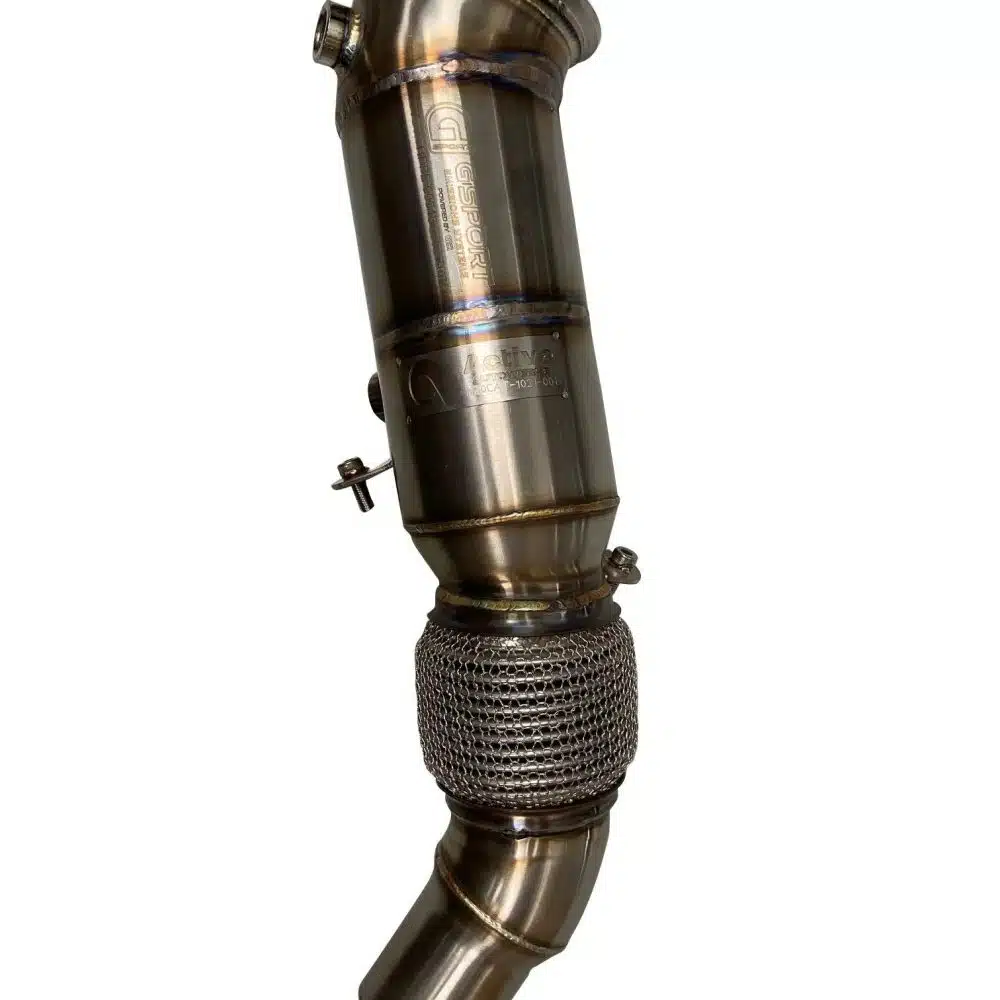

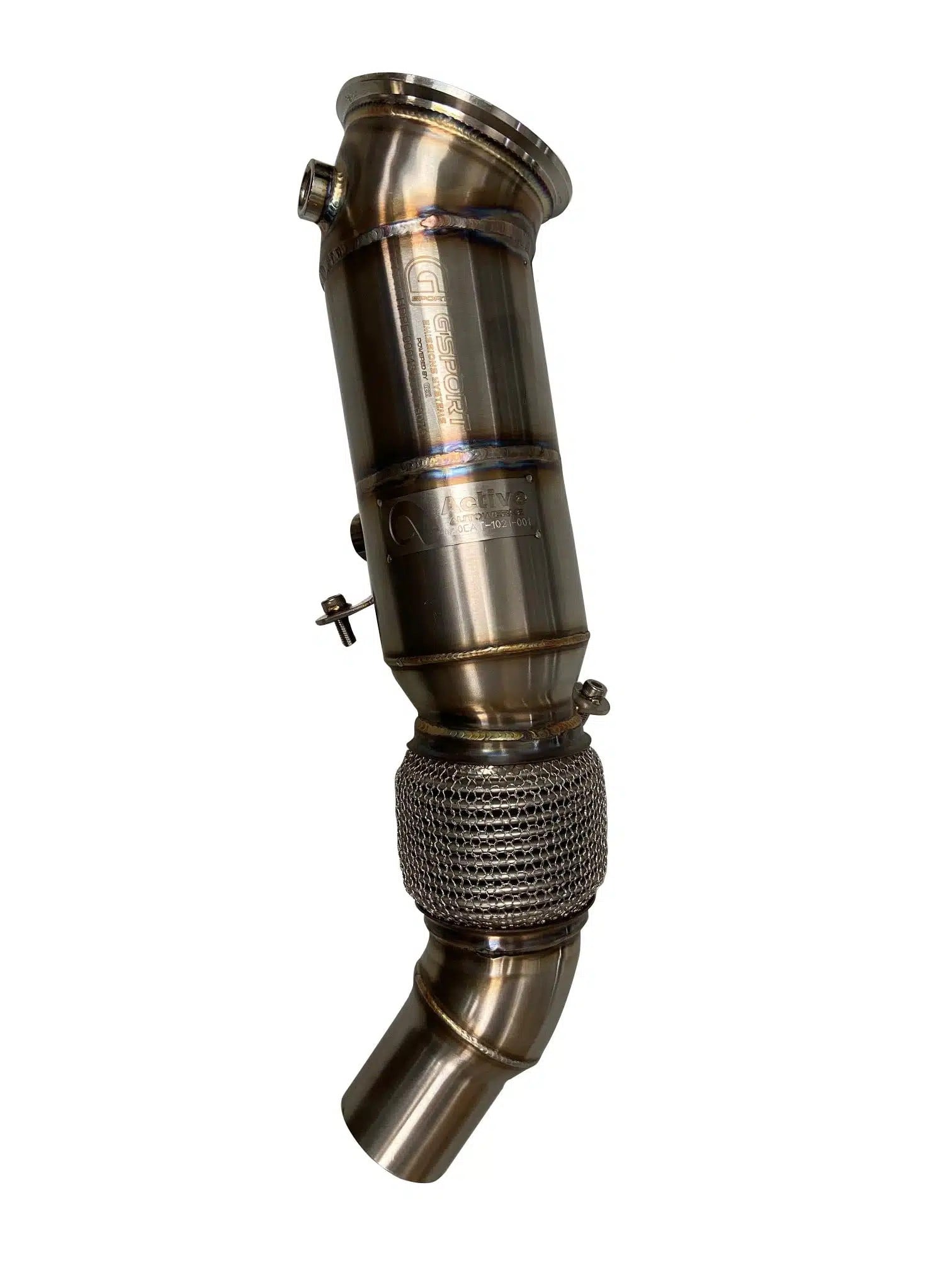

Active Autowerke GESI Catted Downpipe for N20 BMW 228i, 328i and 428i

Active Autowerke’s GESI Catted Downpipe for N20 BMW 228i, 328i and 428i gives the N20 turbo four a 3.5 inch stainless exit carrying a 4 inch GESI G-Sport HO Gen 2 converter, replacing a factory downpipe restrictive enough to slow both exhaust flow and turbo spool. The pipe is TIG welded from 1.5mm wall 304 stainless in Miami, Florida, and the converter substrate is stainless as well, brazed into its mantle. It is the right buy for an N20 car on factory software or a modest tune that should keep its catalyst and gain response; N26-engined cars wearing the same badges need the GESI Catted Downpipe for N26 instead, so confirm the engine before ordering.

Features

4 inch GESI G-Sport HO Gen 2 converter with GESI proprietary precious metal loading
EPA registered and OBD2 compliant converter
No catalyst efficiency check engine light, according to Active Autowerke
Works on the factory tune with no performance tune needed
Bolts on with no cutting or welding
Modular design for later exhaust upgrades
Built in Miami, Florida

Specifications

Piping diameter: 3.5 in
Wall thickness: 1.5mm
Converter diameter: 4 in
Catalyst cell density: 400 cpsi
Heat tolerance: Up to 1500F
Light-off time: Within 9 seconds of startup

Applications

BMW 228i: F22 / F23 | 2014-2016 | 2.0L N20
BMW 328i: F30 | 2012-2016 | 2.0L N20
BMW 428i: F32 / F33 / F36 | 2014-2016 | 2.0L N20

Notes

Include your VIN at checkout so Active Autowerke can confirm the N20 engine, because the GESI Catted Downpipe for N20 will not fit an N26
Active Autowerke guarantees fitment on US-model cars only
The stainless shell and tube ends carry a 5 year or 50,000 mile warranty and the catalytic core 2 years or 25,000 miles, for the original purchaser. Burble set above stock voids the warranty.
Completes the rear of the car with the Active Autowerke Signature Rear Exhaust for F22 228i, F30 328i and F32 428i

Frequently Asked Questions

Will the N20 downpipe fit my N26 car? No. The 228i, 328i and 428i were built with either the N20 or the N26 engine, and the two take different downpipes. Active Autowerke asks for the VIN with each order to confirm an N20 before shipping. N26 owners should choose the GESI Catted Downpipe for N26 instead.
Is a tune required for the GESI Catted Downpipe for N20? No. Active Autowerke sells the GESI Catted Downpipe for N20 for use on factory software and states that it will not set a catalyst efficiency code. Owners who tune the car later keep the same downpipe, since the 3.5 inch pipework flows well beyond the factory part.
How quickly does the converter start working? Active Autowerke rates the GESI converter to reach operating efficiency within 9 seconds of startup. Fast light-off keeps emissions low on short trips and stops the downstream oxygen sensor from flagging a weak catalyst, and the converter is built to withstand exhaust temperatures up to 1500F.
What does installation involve? The downpipe bolts into the factory location with no cutting or welding. Active Autowerke kept the bends to a minimum while matching the stock mounting points, so the job is a straight swap. Working on a lift is far easier than on the ground, and the factory part can be kept.
How long is the warranty? Active Autowerke covers the stainless shell and tube ends for 5 years or 50,000 miles and the catalytic core for 2 years or 25,000 miles, for the original purchaser only. Cover on the core is void if the car is tuned for more burble than stock, because that destroys the catalyst.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
