What comes in the Blow-Off Valve Kit for N54?

The Blow-Off Valve Kit for N54 BMW 135i, 335i and 1M contains an aluminum charge pipe with a CNC machined flange, the Active Autowerke blow-off valve that mounts to it, and an illustrated instruction manual with an installation guide. The single valve takes over the job of the two smaller plastic valves BMW fitted to the N54 from the factory.

Does the kit protect the stock turbos when boost is raised?

Yes. Active Autowerke designed the kit so the factory turbos stay protected as boost goes up. When the throttle closes, pressure builds against the compressor impeller blades and can stall them, which strains the compressor wheel and shaft. The large venturi valve releases that pressure before it reaches the turbos.

Will the blow-off valve make an audible sound?

Yes. The valve releases excess charge pressure with a clearly audible whoosh each time the throttle closes under boost. Active Autowerke presents that sound as part of the appeal of the kit. Owners who want the quiet behavior of the factory system should keep that in mind before ordering.

How much power can the kit support?

Active Autowerke states that the kit is proven and tested to handle more than 600 horsepower, and that the large valve opening copes with maximum boost while keeping flow high. That covers well beyond the output of a stock N54 and most bolt-on and tuned builds on the 135i, 335i and 1M.

Is the kit difficult to install?

Active Autowerke supplies the kit as a plug-and-play upgrade with an illustrated instruction manual and installation guide. The charge pipe uses a factory-style throttle clamp at the throttle body, and the one job replaces both the factory charge pipe and the two small plastic factory valves it carries.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

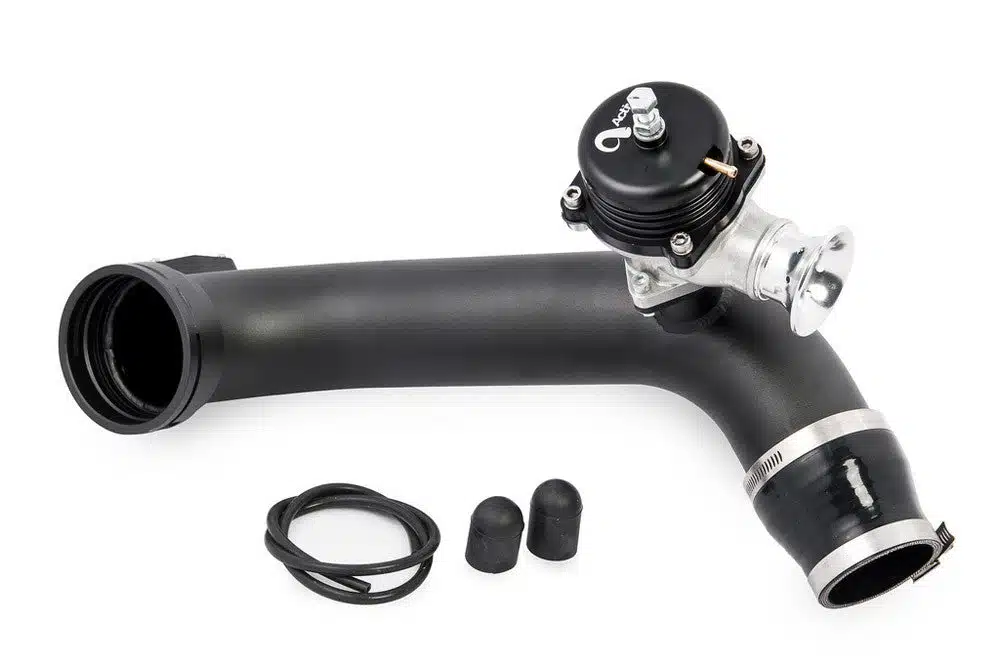

Active Autowerke Charge Pipe and Blow-Off Valve Kit for N54 BMW 135i, 335i and 1M

Active Autowerke’s Charge Pipe and Blow-Off Valve Kit for N54 BMW 135i, 335i and 1M trades the two small plastic valves BMW fitted to the N54 for one large-venturi blow-off valve, mounted on an aluminum charge pipe through a CNC machined flange. Active Autowerke has tested the combination beyond 600 horsepower. As boost climbs on a tuned N54, the valve sheds the trapped charge air that would otherwise slam back into the compressor wheels, and it does so with an audible rush every time the throttle closes. The kit does its real work on a car whose boost has been raised; on an untouched N54 the change is mostly one you hear.

Features

One high-efficiency blow-off valve takes over from two smaller plastic factory valves
Large venturi opening keeps flow high at maximum boost
All-aluminum venturi design with a factory-style throttle clamp
CNC machined valve flange
Durable black wrinkle powder coat
Blow-Off Valve Kit for N54 tested by Active Autowerke beyond 600 horsepower

What’s Included

Aluminum charge pipe with CNC machined flange
Blow-off valve
Illustrated instruction manual and installation guide

Applications

BMW 135i: E82 | 2008-2010 | 3.0L N54
BMW 1M: E82 | 2011 | 3.0L N54
BMW 335i: E90 / E92 / E93 | 2007-2010 | 3.0L N54

Notes

The valve vents excess charge pressure with an audible whoosh when the throttle closes under boost
For a car that already has a flanged pipe, the 42mm Blow-Off Valve for N54 is sold on its own

Frequently Asked Questions

What comes in the Blow-Off Valve Kit for N54? The Blow-Off Valve Kit for N54 BMW 135i, 335i and 1M contains an aluminum charge pipe with a CNC machined flange, the Active Autowerke blow-off valve that mounts to it, and an illustrated instruction manual with an installation guide. The single valve takes over the job of the two smaller plastic valves BMW fitted to the N54 from the factory.
Does the kit protect the stock turbos when boost is raised? Yes. Active Autowerke designed the kit so the factory turbos stay protected as boost goes up. When the throttle closes, pressure builds against the compressor impeller blades and can stall them, which strains the compressor wheel and shaft. The large venturi valve releases that pressure before it reaches the turbos.
Will the blow-off valve make an audible sound? Yes. The valve releases excess charge pressure with a clearly audible whoosh each time the throttle closes under boost. Active Autowerke presents that sound as part of the appeal of the kit. Owners who want the quiet behavior of the factory system should keep that in mind before ordering.
How much power can the kit support? Active Autowerke states that the kit is proven and tested to handle more than 600 horsepower, and that the large valve opening copes with maximum boost while keeping flow high. That covers well beyond the output of a stock N54 and most bolt-on and tuned builds on the 135i, 335i and 1M.
Is the kit difficult to install? Active Autowerke supplies the kit as a plug-and-play upgrade with an illustrated instruction manual and installation guide. The charge pipe uses a factory-style throttle clamp at the throttle body, and the one job replaces both the factory charge pipe and the two small plastic factory valves it carries.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
