Does the AFlow Catted Section 1 for E46 get rid of the M3 rasp?

Yes. Active Autowerke states that the AFlow Catted Section 1 for E46 BMW M3 removes the raspy resonance the S54 produces at and above 4,000 rpm when performance headers are fitted with the factory Section 1. The rasp comes from engine sound harmonics in that rev range, and the redesigned section is built to stop it.

Do I need aftermarket headers for this Section 1?

Active Autowerke designed it for an E46 M3 that already has performance headers installed, and that is where it makes sense. With the factory headers, the stock Section 1 already flows well, so this part brings no meaningful gain and is not worth the outlay.

Will it cause a check engine light?

Active Autowerke states that it will not set a catalyst efficiency code. The post-catalyst oxygen sensors move into Section 1 behind the AFlow converters, the same arrangement BMW used on European M3s, and the supplied extension cables let the factory sensors reach their new positions. No tune is required.

Does it add horsepower?

No meaningful amount. Active Autowerke says power with its Section 1 is about the same as with the factory Section 1, which it considers a good result given that the exhaust now passes through two catalysts. The reason to buy it is sound quality and the converters, not a dyno number.

Is installation a bolt-on job?

Yes. The section uses the factory E46 M3 mounting points, so no cutting or welding is needed. The extra step is routing the post-catalyst oxygen sensors into their new ports with the supplied extension cables. Active Autowerke backs the part with a two-year warranty and free technical support.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

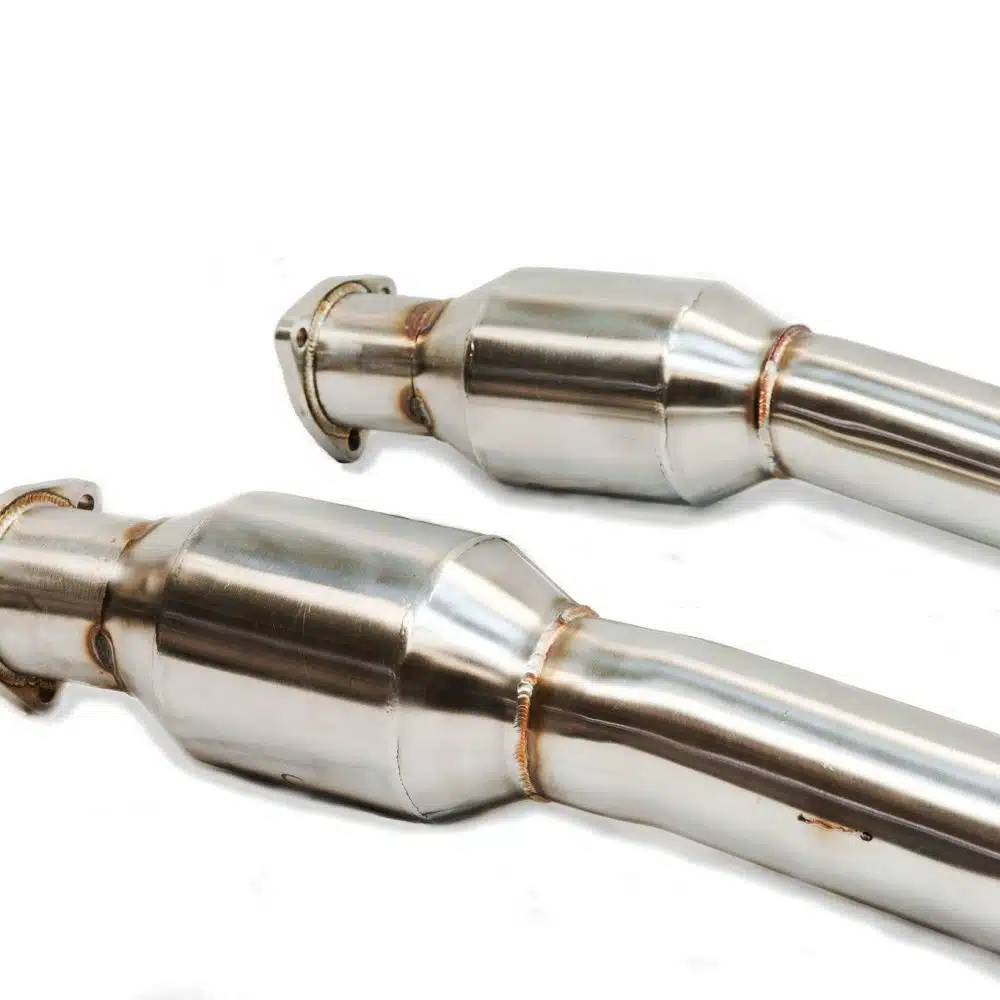

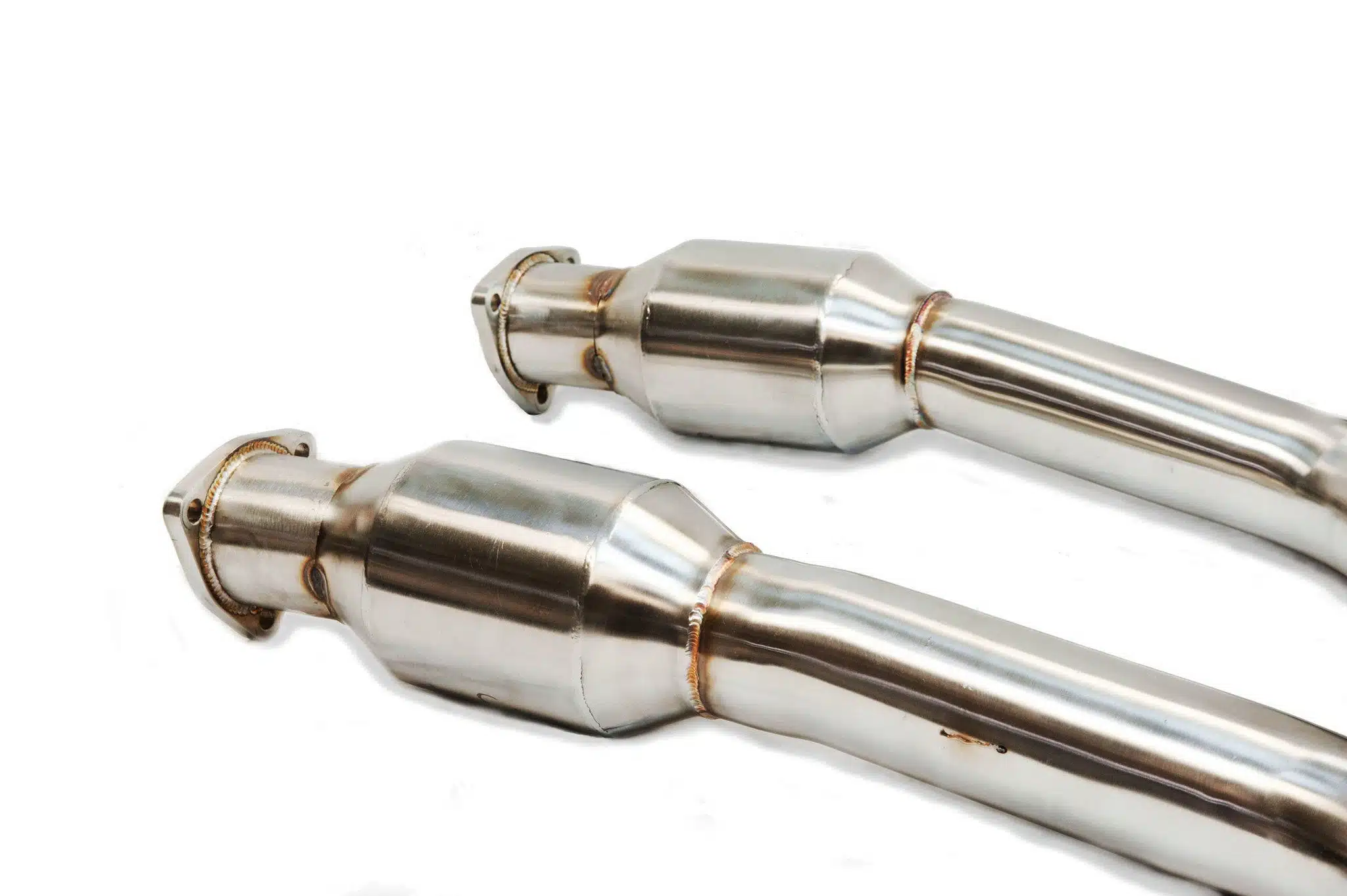

Active Autowerke AFlow Catted Section 1 for E46 BMW M3

Active Autowerke’s AFlow Catted Section 1 for E46 BMW M3 is written for one specific car: an S54-powered M3 that already runs aftermarket performance headers. On that car the US factory Section 1, a straight-through pair of pipes with resonators built into one side, lets the S54 develop the raspy resonance it is known for at and above 4,000 rpm. Active Autowerke’s replacement pairs two Active AFlow catalysts with brushed 304 stainless pipework, quiets that rasp and holds power at the level of the factory section. It is a refinement and emissions part rather than a horsepower part, so an M3 on its factory headers gains nothing from it, while a header-equipped car gains a far more civil voice.

Design and Performance

Active Autowerke borrowed the layout BMW used on European M3s, moving the post-catalyst oxygen sensors into Section 1 behind the new converters. Extension cables are supplied so the factory sensors reach their new ports, and Active Autowerke states the result sets no catalyst efficiency code, with no performance tune required.

Features

Pair of EPA registered Active AFlow metallic catalysts
Post-catalyst oxygen sensor ports placed after the converters
Oxygen sensor extension cables included
Brushed finish on 100% 304 stainless steel
Bolts to the factory mounting points
Two-year warranty with free technical support

What’s Included

Section 1 with Active AFlow catalysts
Oxygen sensor extension cables

Applications

BMW M3: E46 | 2001-2006 | 3.2L S54

Notes

The AFlow Catted Section 1 for E46 is intended for M3s already fitted with aftermarket performance headers; on factory headers it offers no gain over the BMW Section 1
Power with the Active Autowerke Section 1 is about the same as with the factory Section 1, according to Active Autowerke
Also offered with GESI G-Sport catalysts as the GESI Catted Section 1 for E46 BMW M3

Frequently Asked Questions

Does the AFlow Catted Section 1 for E46 get rid of the M3 rasp? Yes. Active Autowerke states that the AFlow Catted Section 1 for E46 BMW M3 removes the raspy resonance the S54 produces at and above 4,000 rpm when performance headers are fitted with the factory Section 1. The rasp comes from engine sound harmonics in that rev range, and the redesigned section is built to stop it.
Do I need aftermarket headers for this Section 1? Active Autowerke designed it for an E46 M3 that already has performance headers installed, and that is where it makes sense. With the factory headers, the stock Section 1 already flows well, so this part brings no meaningful gain and is not worth the outlay.
Will it cause a check engine light? Active Autowerke states that it will not set a catalyst efficiency code. The post-catalyst oxygen sensors move into Section 1 behind the AFlow converters, the same arrangement BMW used on European M3s, and the supplied extension cables let the factory sensors reach their new positions. No tune is required.
Does it add horsepower? No meaningful amount. Active Autowerke says power with its Section 1 is about the same as with the factory Section 1, which it considers a good result given that the exhaust now passes through two catalysts. The reason to buy it is sound quality and the converters, not a dyno number.
Is installation a bolt-on job? Yes. The section uses the factory E46 M3 mounting points, so no cutting or welding is needed. The extra step is routing the post-catalyst oxygen sensors into their new ports with the supplied extension cables. Active Autowerke backs the part with a two-year warranty and free technical support.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
