Which version of the AFlow Catted Downpipe for F3X do I need?

Match the option to your engine code, B46 or B48, and check the build date. BMW moved the downpipe brackets from a V to a straight line at the 08/2020 to 09/2020 cutover, and the B46 option here is the V-bracket design. Active Autowerke asks for the VIN on cars built in those two months.

Does the downpipe need a tune?

No. Active Autowerke sells the AFlow Catted Downpipe for F3X and G2X cars as a no-tune part and states it will not produce a catalyst efficiency code on factory software. A tune can use the extra flow, and the 300 to 500 horsepower converter rating leaves headroom for one.

Why is the gasket already installed?

Active Autowerke fits the turbo flange gasket into the downpipe flange before shipping because some customers damaged the gasket during installation. Seated at the factory in Miami, it cannot be pinched or lost while the cast V-band clamp is tightened at the turbo.

Will it set a check engine light?

Active Autowerke states that the AFlow converter will not set a catalyst efficiency code. Its 400 cell stainless substrate reaches operating efficiency within 9 seconds of startup, which keeps the downstream oxygen sensor reading a working catalyst from early in each drive.

How does it connect to the factory exhaust?

A cast stainless V-band clamps the downpipe to the turbo, and a stainless flex joint behind the converter takes up engine movement. The outlet meets the factory exhaust through its original ball flare or slip-in joint, so no cutting, welding or adapter pipe is needed.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

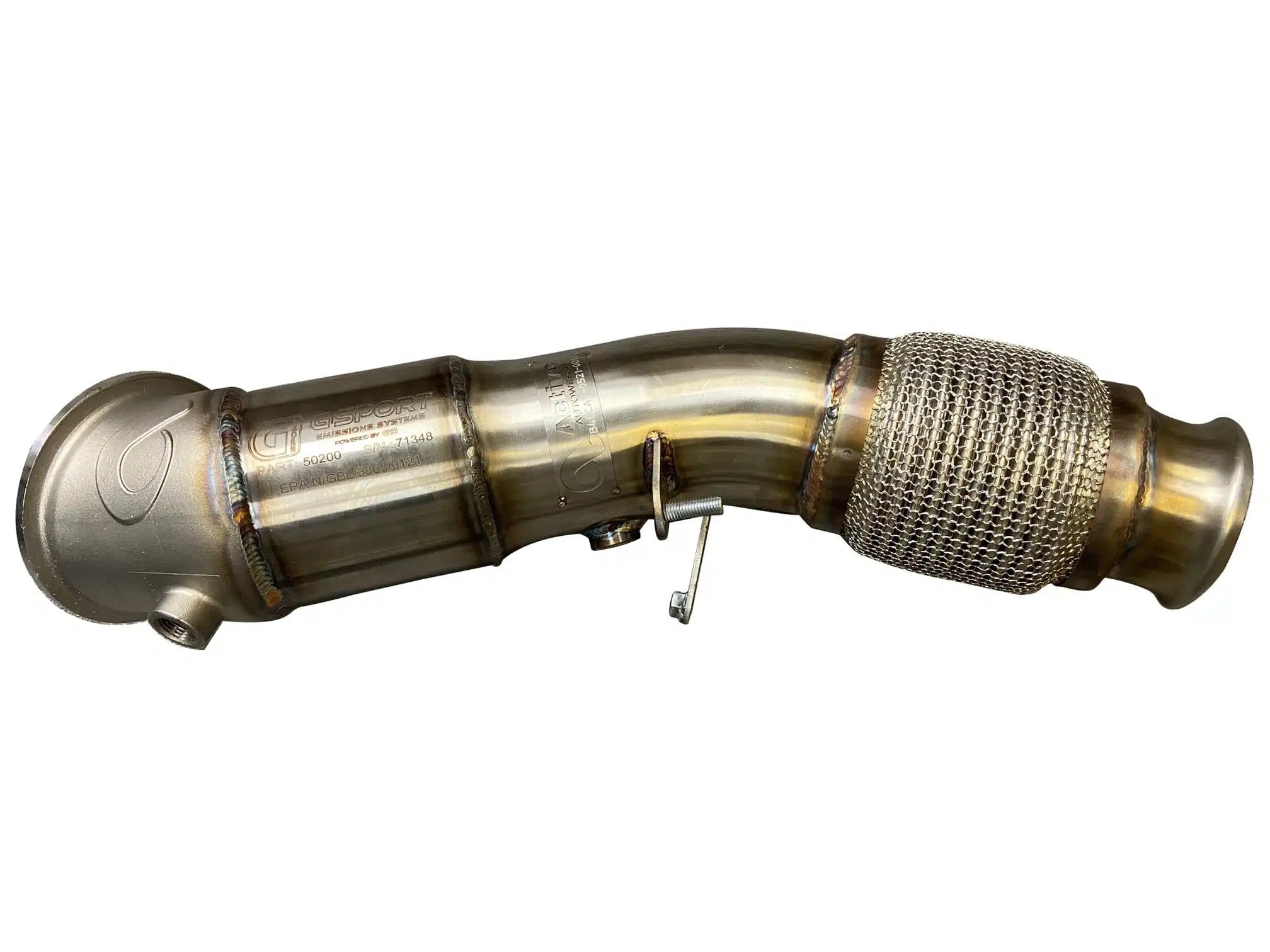

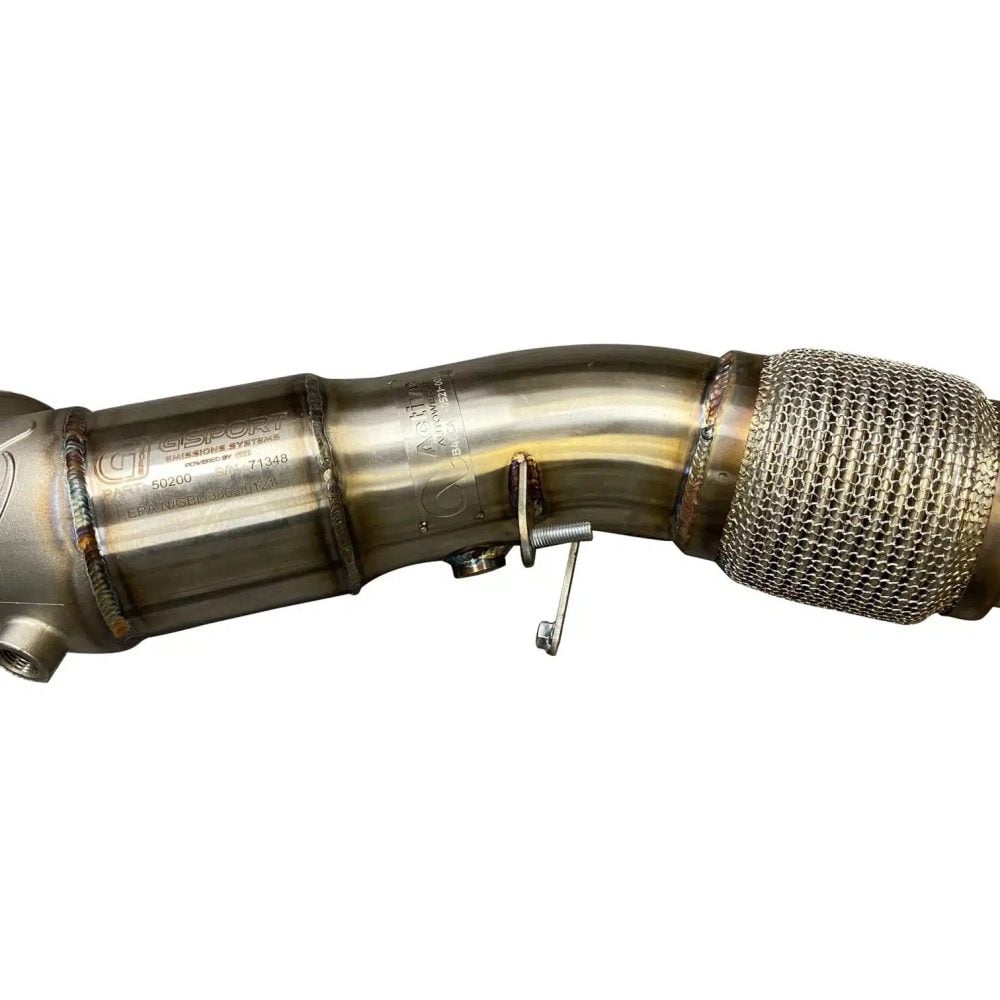

Active Autowerke AFlow Catted Downpipe for F3X and G2X BMW 230i, 330i, 330e and 430i

Active Autowerke’s AFlow Catted Downpipe for F3X and G2X BMW 230i, 330i, 330e and 430i swaps the factory B46 or B48 downpipe for 3.5 inch 304 stainless tubing and a 4 inch Active AFlow converter rated for 300 to 500 horsepower, comfortably above what these engines make on factory software. A cast stainless V-band locates it at the turbo, and Active Autowerke presses the turbo gasket into the flange before shipping, after customers damaged loose ones during fitting. It is the value pick of the pair; the GESI Catted Downpipe for F3X and G2X adds the straight-bracket version for later G-chassis B46 cars.

Features

Active AFlow converter with a 304 stainless substrate furnace brazed to the mantle
EPA registered and OBD2 compliant converter
Active Autowerke states it will not set a catalyst efficiency check engine light
Cast stainless upper V-band and stainless flex joint
Turbo flange gasket supplied pre-installed in the downpipe flange
No performance tune needed, and no cutting or welding
TIG welded 304 stainless steel, made in Miami, Florida

Specifications

Piping diameter: 3.5 in
Wall thickness: 1.5mm
Converter diameter: 4 in
Catalyst cell density: 400 cpsi
Rated output: 300 to 500 hp
Heat tolerance: Up to 1500F
Light-off time: Within 9 seconds of startup

Applications

BMW 230i: F22 / F23 | 2017-2021 | 2.0L B46 / B48
BMW 230i: G42 | 2022-present | 2.0L B46 / B48
BMW 330e: G20 | 2.0L B46 / B48
BMW 330i: F30 | 2017-2019 | 2.0L B46 / B48
BMW 330i: G20 | 2019-present | 2.0L B46 / B48
BMW 430i: F32 / F33 / F36 | 2017-2020 | 2.0L B46 / B48
BMW 430i: G22 / G23 / G26 | 2021-present | 2.0L B46 / B48

Notes

The B46 option of the AFlow Catted Downpipe for F3X fits cars built through 08/2020; G-chassis B46 cars built from 09/2020 take the 2021-on version sold as part of the GESI Catted Downpipe for F3X and G2X
Choose the B46 or B48 option to match the engine code on your car
Built for US-model cars only
Warranty is 5 years or 50,000 miles on the shell and tube ends and 2 years or 25,000 miles on the catalytic core, for the original purchaser, and is void if the car is tuned for more burble than stock

Frequently Asked Questions

Which version of the AFlow Catted Downpipe for F3X do I need? Match the option to your engine code, B46 or B48, and check the build date. BMW moved the downpipe brackets from a V to a straight line at the 08/2020 to 09/2020 cutover, and the B46 option here is the V-bracket design. Active Autowerke asks for the VIN on cars built in those two months.
Does the downpipe need a tune? No. Active Autowerke sells the AFlow Catted Downpipe for F3X and G2X cars as a no-tune part and states it will not produce a catalyst efficiency code on factory software. A tune can use the extra flow, and the 300 to 500 horsepower converter rating leaves headroom for one.
Why is the gasket already installed? Active Autowerke fits the turbo flange gasket into the downpipe flange before shipping because some customers damaged the gasket during installation. Seated at the factory in Miami, it cannot be pinched or lost while the cast V-band clamp is tightened at the turbo.
Will it set a check engine light? Active Autowerke states that the AFlow converter will not set a catalyst efficiency code. Its 400 cell stainless substrate reaches operating efficiency within 9 seconds of startup, which keeps the downstream oxygen sensor reading a working catalyst from early in each drive.
How does it connect to the factory exhaust? A cast stainless V-band clamps the downpipe to the turbo, and a stainless flex joint behind the converter takes up engine movement. The outlet meets the factory exhaust through its original ball flare or slip-in joint, so no cutting, welding or adapter pipe is needed.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
