Soul Performance Resonated Muffler-Bypass Exhaust System w/ Straight Satin Tips for F10 BMW M5

Soul Performance Resonated Muffler-Bypass Exhaust System with Straight Satin Tips for F10 BMW M5

The M5 can undergo an amplified European V8 aggression and turbo presence by installing a mandrel bent 3″ piping system, accompanied by high-flowing race resonators. This upgrade enhances the overall exhaust tone without causing any undesirable drone.

Development

• The M5 offers a refined driving experience with generous sound deadening and a heavily muffled exhaust system, which results in a subdued tone that dampens the captivating symphony produced by the 4.4L engine. However, Soul Performance Products has developed an effective solution. Upon evaluating the factory mid pipes, it is evident that they possess a highly efficient and relatively smooth-flowing design. BMW has implemented a designated breaking point for upgraded exhaust systems, with the rear section being the limiting factor.
• To address these limitations, Soul Performance Products offers the Resonated Muffler Bypass Exhaust designed explicitly for the M5. This innovative exhaust system replaces the factory mufflers with a clamp-on, 3″ straight pipe design, incorporating race resonators to minimize drone. The straight-through design of the race resonators ensures maximum power and an exhilarating sound during intense throttle applications while effectively reducing harsh frequencies that can result in cabin drone during partial throttle and cruising conditions. This exhaust system is the perfect companion for aftermarket downpipes, eliminating drone and raspiness. The Y-pipe setup, exiting through quad tips, promotes balanced exhaust distribution and provides adjustability for achieving either a flush or staggered appearance in the bumper. Experience heightened aggression without compromising on drone control with the Soul Performance Products’ Resonated Muffler Bypass Exhaust.

Construction

• Every set of muffler bypass pipes is meticulously crafted from mandrel bent T304L stainless steel tubing, ensuring exceptional quality and durability. The 3″ diameter tubes feature a .065″ wall thickness, providing optimal flow characteristics. Straight through race resonators are incorporated into the design, employing a full metal packing construction for maximum longevity. Laser-cut brackets are included to guarantee a precise fitment, ensuring hassle-free installation.
• To further personalize your M5, a range of hand-finished tip options is available to choose from. Select the tip style that best complements the aesthetics of your vehicle. In the latest update for 2020, Soul Performance Products introduces a cast Y section, which enhances the interior flow of the exhaust system. The smooth wall interior path, combined with the knife-edged split, optimizes exhaust flow efficiency, resulting in improved performance.
• Experience the perfect combination of durability, fitment, and style with the Soul Performance Products muffler bypass pipes for the M5.

Power

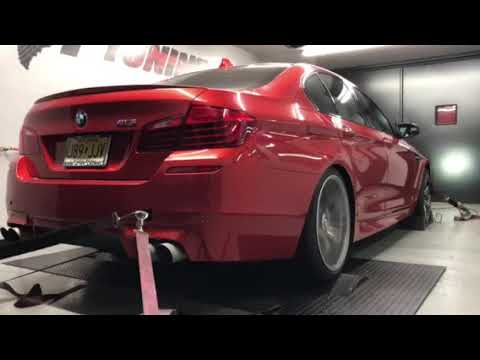

• During third-party dyno testing conducted at R/T Tuning, Soul Performance Products’ development car achieved impressive peak power figures. With a combination of modifications including catless downpipes, a custom tune, and the Resonated Muffler Bypass Exhaust, the vehicle recorded an impressive 610whp and 615ft-lbs of torque. These results highlight the significant performance gains made possible by Soul’s high-quality components and exhaust system.

Bolt On & Go

• Every exhaust system undergoes meticulous testing in a dedicated fixture to guarantee impeccable fitment. The installation process involves cutting the original exhaust at a designated factory break point, which is conveniently marked with a dimple. This strategic cut allows for the reinstallation of the factory system if desired or required in the future. Comprehensive installation instructions are thoughtfully included in the package, ensuring a straightforward and hassle-free installation experience that can be easily undertaken by most DIY enthusiasts.

Features

• Increases the desirable spectrum of engine notes and tone while minimizing drone with race resonators
• Weighs approximately 14.7lbs / 6.6kg less than factory exhaust components (32.5lbs vs 17.8lb)
• All Soul Performance Products components are backed by Soul’s lifetime warranty for both street and track use

Specifications

• Tip Style: Straight cut single wall
• Tip Finish: Satin

Applications

• BMW M5: F10 (2012-2016) – 4.4L TT V8 S63
